79271 - Toro 36" Tiller for 260 Series Tractors (SN: 049000001 - 049999999) (1994) HITCH ASSEMBLY Parts Diagram

36" Tiller for 260 Series Tractors

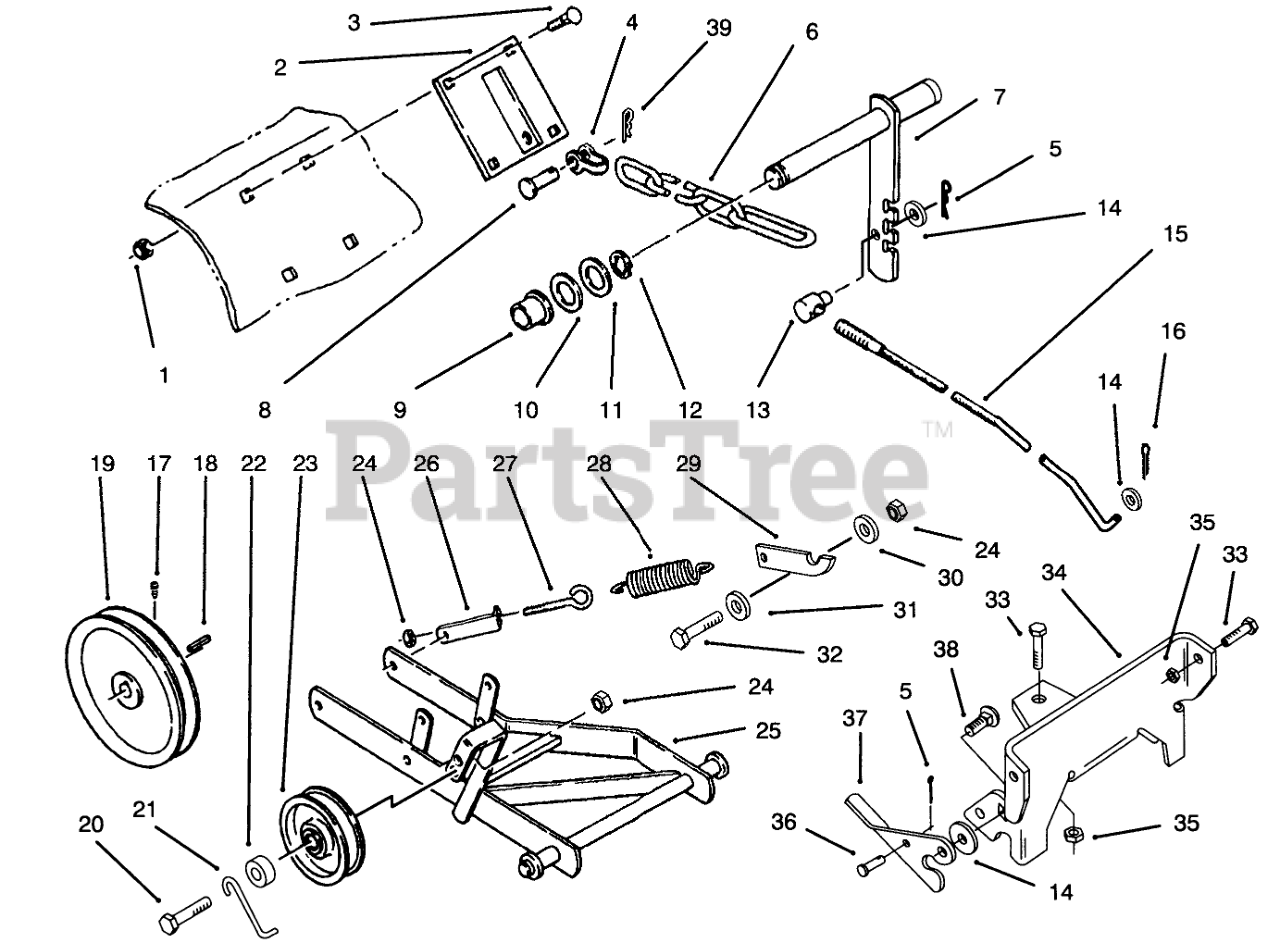

HITCH ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 93-1608-01

HITCH ASM
(Superseded to 93-1608-03)

$

$

Not available

3

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

4

Toro 79-2280

Assembly-Clevis (Incl. Ref.# 5 & 8)

$19.99

$

Usually ships in 3-6 days

0

5

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 14

0

6

Toro 92-7074

CHAIN-LIFT

$

$

Not available

7

Toro 92-7064-03

LEVER ASM

$

$

Not available

8

Toro 105821

Clevis Pin
(Superseded to 9329584)

$

$

Not available

9

Toro 108519

BUSHING-BRONZE

$15.99

$

In Stock, Qty 8

0

10

Toro 1278

WASHER

$2.99

$

In Stock, Qty 20+

0

11

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0

12

Toro 5618

E-RING

$0.99

$

In Stock, Qty 15

0

13

Toro 104524

TRUNNION-CLUTCH ROD

$43.99

$

Usually ships in 3-6 days

0

14

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 92-7069

ROD-LIFT

$85.99

$

Usually ships in 3-6 days

0

16

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 10

0

17

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, Qty 6

0

18

Toro 1005

KEY-STRAIGHT
(Superseded to 5-1077)

$6.49

$

In Stock, only 2 left!

0

19

Toro 93-0345

PULLEY

$164.99

$

Usually ships in 3-6 days

0

20

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

21

Toro 79-0400

GUIDE-BELT

$43.99

$

Usually ships in 3-6 days

0

22

Toro 104525

SPACER
(Superseded to 93-3658)

$6.49

$

Usually ships in 3-6 days

0

23

Toro 92-7104

PULLEY-IDLER

$29.99

$

In Stock, only 2 left!

0

24

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

25

Toro 93-1607-01

HITCH ASM RED

$398.99

$

Usually ships in 3-6 days

0

26

Toro 93-1606-01

BRACKET - SPRING RED
(Superseded to 93-1606-03)

$42.99

$

Usually ships in 3-6 days

0

27

Toro 100653

EYEBOLT

$22.99

$

Usually ships in 3-6 days

0

28

Toro 4629

SPRING

$70.99

$

In Stock, only 2 left!

0

29

Toro 92-7023-03

CATCH-SPRING

$46.99

$

Usually ships in 3-6 days

0

30

Toro 105474

SPACER

$9.99

$

Usually ships in 3-6 days

0

31

Toro 920220

WASHER

$3.99

$

Usually ships in 3-6 days

0

32

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

33

Toro 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

34

Toro 93-1389-03

BRACKET-MOUNTING

$

$

Not available

35

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

36

Toro 932120

Pin
(Superseded to 9321204)

$4.99

$

Usually ships in 3-6 days

0

37

Toro 104657

PLATE-LATCHING

$36.99

$

Usually ships in 3-6 days

0

38

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

39

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0
