79310 - Toro 48" Vacuum Bagger for 5xi Tractors (SN: 260000001 - 260999999) (2006) DECK ASSEMBLY Parts Diagram

48" Vacuum Bagger for 5xi Tractors

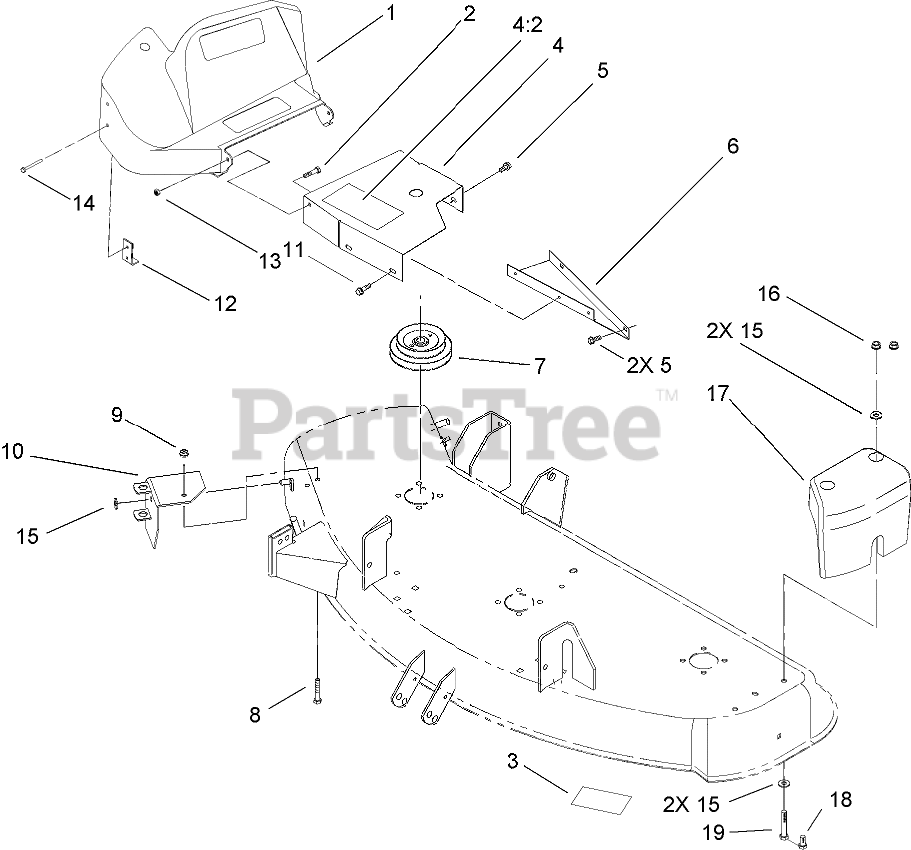

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 86-9300

SHIELD-BELT

$304.99

$

Usually ships in 3-6 days

0

2

Toro 321-3

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

3

Toro 92-7108

DECAL-DANGER

$6.99

$

Usually ships in 3-6 days

0

4

Toro 98-5096

SHIELD ASM

$

$

Not available

4:2

Toro 92-7108

DECAL-DANGER

$6.99

$

Usually ships in 3-6 days

0

5

Toro 3234-26

SCREW-HHF

$2.99

$

In Stock, Qty 16

0

6

Toro 94-7589-03

Adapter-Shield

$

$

Not available

7

Toro 79-7130

PULLEY

$120.99

$

Usually ships in 3-6 days

0

8

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Toro 79-7000-03

Pivot Bracket ASM

$106.99

$

Usually ships in 3-6 days

0

11

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 16

0

12

Toro 88-1870

BRACKET-SUPPORT, SHIELD

$11.99

$

Usually ships in 3-6 days

0

13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

14

Toro 79-0470

RIVET-POP

$1.99

$

Usually ships in 3-6 days

0

15

Toro 3256-56

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

16

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Toro 98-3096

WEIGHT

$

$

Not available

18

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 19

0

19

Toro 323-45

SCREW-HH

$4.49

$

In Stock, only 2 left!

0
