79330 - Toro E-Z Vac Twin Bagger for Titan Mower (SN: 314000001 - 314999999) (2014) TWIN BAGGER AND HOOD ASSEMBLY Parts Diagram

E-Z Vac Twin Bagger for Titan Mower

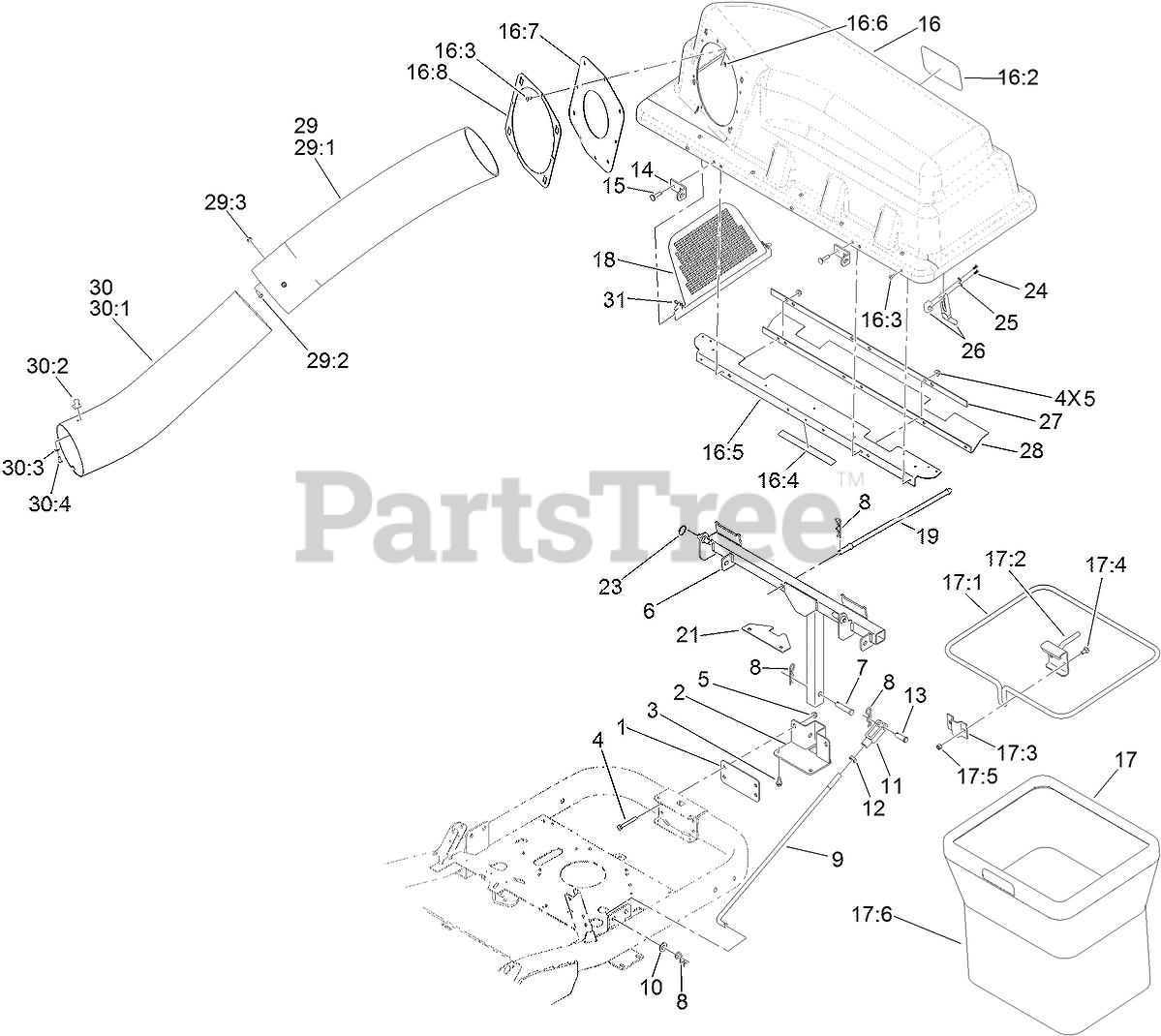

TWIN BAGGER AND HOOD ASSEMBLY Parts Diagram

  • Title

1

Toro 117-5355-03

PLATE

$25.99

$

Usually ships in 3-6 days

0

2

Toro 120-7120-03

SUPPORT-BAGGER

$95.99

$

Usually ships in 3-6 days

0

3

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 15

0

4

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 9

0

5

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, only 3 left!

0

6

Toro 125-1811-03

PIVOT FRAME ASM

$336.99

$

Usually ships in 3-6 days

0

7

Toro 92-2739

PIN-CLEVIS

$11.99

$

In Stock, only 2 left!

0

8

Toro 3290-355

PIN-HAIR

$2.99

$

In Stock, only 3 left!

0

9

Toro 115-2645

ROD-BAGGER

$50.99

$

Usually ships in 3-6 days

0

10

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 100-7338

CLEVIS

$66.99

$

In Stock, only 1 left!

0

12

Toro 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 14

0

13

Toro 104-3634

PIN-CLEVIS

$21.99

$

In Stock, only 2 left!

0

14

Toro 112-3987

BRACKET-PIVOT, HOPPER

$8.99

$

Usually ships in 3-6 days

0

15

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 9

0

16

Toro 121-3215

BAGGER HOOD ASM

$592.99

$

Usually ships in 3-6 days

0

16:2

Toro 99-4693

DECAL

$26.99

$

Usually ships in 3-6 days

0

16:3

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

16:4

Toro 109-6809

DECAL-CAUTION, BAGGER

$29.99

$

Usually ships in 3-6 days

0

16:5

Toro 116-5071-03

STIFFENER-BAGGER, TOP

$53.99

$

Usually ships in 3-6 days

0

16:6

Toro 9202704

WASHER-FLAT

$1.99

$

In Stock, Qty 17

0

16:7

Toro 116-4478

GASKET

$23.99

$

In Stock, only 3 left!

0

16:8

Toro 112-4000-03

RING-RETAINER

$34.99

$

In Stock, only 2 left!

0

17

Toro 112-3994

BAG ASM

$198.99

$

Usually ships in 3-6 days

0

17:1

Toro 114972-03

FRAME-BAG

$120.99

$

Usually ships in 3-6 days

0

17:2

Toro 112-4012-03

HANGER ASM
(Superseded to 114973-03)

$27.99

$

In Stock, only 2 left!

0

17:3

Toro 114974-03

CLAMP

$15.99

$

In Stock, only 2 left!

0

17:4

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

17:5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17:6

Toro 110-6674

BAG
(Superseded to 140-5192)

$94.99

$

In Stock, only 2 left!

0

18

Toro 112-3993

SCREEN-BAGGER

$34.99

$

In Stock, only 1 left!

0

19

Toro 116-6491

ROD-HOLD DOWN, HOOD

$63.99

$

Usually ships in 3-6 days

0

21

Toro 117-5397-03

PLATE-SPACER

$22.99

$

Usually ships in 3-6 days

0

23

Toro 120-7127

PIN-COTTER, CIRCULAR

$1.49

$

Usually ships in 3-6 days

0

24

Toro 107-7461

SCREW-PLASTITE

$1.49

$

In Stock, only 2 left!

0

25

Toro 3256-77

WASHER-FLAT

$2.49

$

In Stock, only 2 left!

0

26

Toro 116-4992

LATCH-RUBBER

$54.99

$

In Stock, only 1 left!

0

27

Toro 116-4127-03

PLATE-BACKING

$25.99

$

Usually ships in 3-6 days

0

28

Toro 116-4126

SEAL

$36.99

$

In Stock, only 2 left!

0

29

Toro 125-5464

UPPER TUBE ASM

$289.99

$

Usually ships in 3-6 days

0

29:1

Toro 125-5568

TUBE-UPPER

$

$

Currently unavailable

29:2

Toro 1-803076

SCREW

$1.49

$

Usually ships in 3-6 days

0

29:3

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

30

Toro 116-4128

LOWER TUBE ASM

$291.99

$

Usually ships in 3-6 days

0

30:1

Toro 116-4495

TUBE-LOWER

$143.99

$

Usually ships in 3-6 days

0

30:2

Toro 103-4081

LATCH-KEEPER

Note: Kit No. 103-4188 - Contains catch, rubber latch, and mounting hardware

$15.99

$

Usually ships in 3-6 days

0

30:3

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30:4

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

31

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0
