79341 - Toro 54" Blower and Drive Kit (SN: 315000001 - 315999999) (2015) Blower and Drive Assembly Parts Diagram

54" Blower and Drive Kit

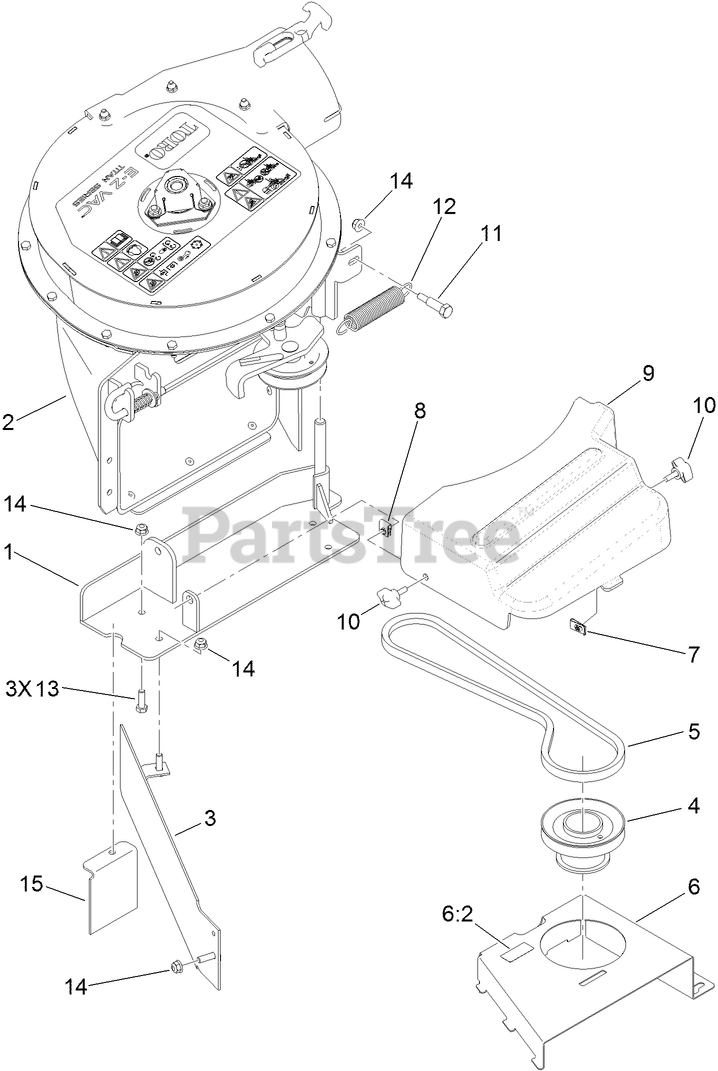

Blower and Drive Assembly Parts Diagram

  • Title

1

Toro 121-0725-03

SUPPORT-BLOWER

$223.99

$

Usually ships in 3-6 days

0

2

Toro 125-1730

BLOWER HOUSING ASM

$1347.99

$

Usually ships in 3-6 days

0

3

Toro 125-1752-03

BAFFLE

$91.99

$

Usually ships in 3-6 days

0

4

Toro 125-0086

PULLEY-BAGGER

$169.99

$

Usually ships in 3-6 days

0

5

Toro 127-0075

BELT-V

$47.99

$

In Stock, only 2 left!

0

6

Toro 125-5564

COVER ASM

$65.99

$

Usually ships in 3-6 days

0

6:2

Toro 114-1606

DECAL-DANGER

$2.99

$

In Stock, only 2 left!

0

7

Toro 3290-199

NUT-SPEED

$5.49

$

Usually ships in 3-6 days

0

8

Toro 609900

NUT-SPEED

$9.49

$

Usually ships in 3-6 days

0

9

Toro 125-1809

COVER-BELT

$144.99

$

Usually ships in 3-6 days

0

10

Toro 98-8332

KNOB

$5.99

$

In Stock, Qty 7

0

11

Toro 7-0030

SCREW-SHOULDER, HH

$9.49

$

In Stock, Qty 20+

0

12

Toro 1-603693

SPRING-EXTENSION

$15.99

$

In Stock, only 2 left!

0

13

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 125-5536-03

BAFFLE

$15.99

$

Usually ships in 3-6 days

0
