79346 - Toro Blower and Tube Kit for E-Z Vac Twin Bagger for Titan (SN: 400000000 - 406499999) Blower Housing Assembly No. 140-5032 Parts Diagram

Blower and Tube Kit for E-Z Vac Twin Bagger for Titan

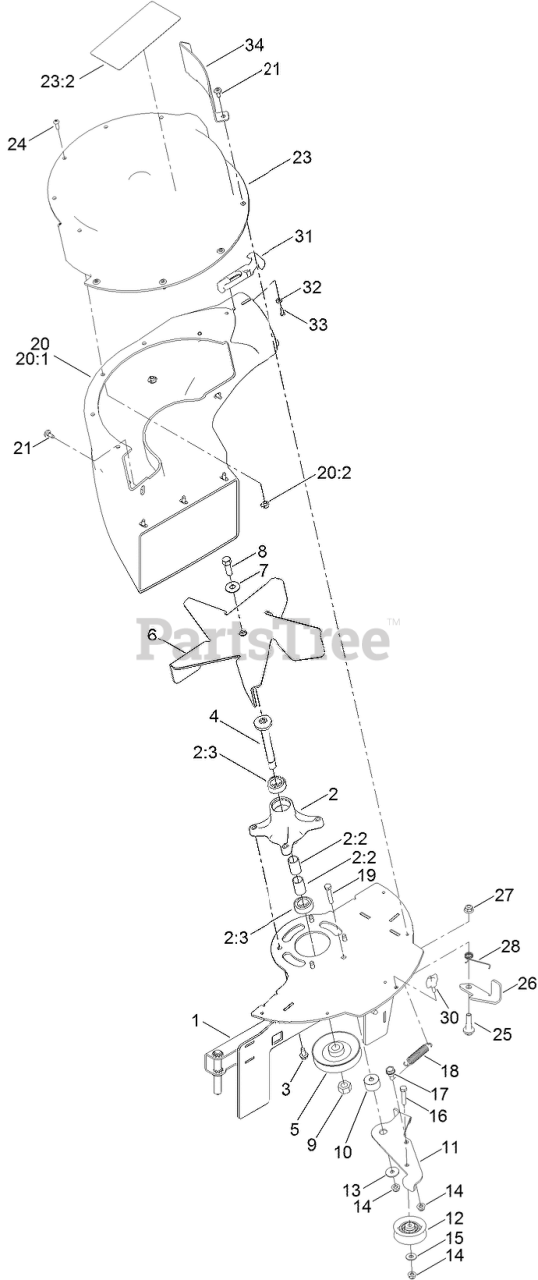

Blower Housing Assembly No. 140-5032 Parts Diagram

  • Title

1

Toro 133-9287-03

FRAME-BLOWER

$301.99

$

Usually ships in 3-6 days

0

2

Toro 121-0751

SPINDLE ASM
(Superseded to 139-3214)

$77.99

$

Usually ships in 3-6 days

0

2:2

Toro 120-7935

SPACER

$2.99

$

In Stock, Qty 20+

0

2:3

Toro 136-5441

BEARING-BALL

$7.99

$

In Stock, Qty 20+

0

3

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 137-7009

SHAFT - SPINDLE

$25.99

$

Usually ships in 3-6 days

0

5

Toro 133-4492

PULLEY-BLOWER

$57.99

$

Usually ships in 3-6 days

0

6

Toro 133-4336

FAN-BLOWER

$

$

Currently unavailable

7

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

8

Toro 108-8823

SCREW-HH

$8.49

$

Usually ships in 3-6 days

0

9

Toro 3219-16

NUT-HEX

$6.99

$

Usually ships in 3-6 days

0

10

Toro 133-4499

SPACER-ARM, IDLER

$14.99

$

Usually ships in 3-6 days

0

11

Toro 133-4489

BLOWER-ARM, IDLER

$23.99

$

Usually ships in 3-6 days

0

12

Toro 138-7597

PULLEY-IDLER, FLAT

$15.99

$

In Stock, Qty 8

0

13

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

14

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 92-6986

BOLT-SHOULDER

$11.99

$

Usually ships in 3-6 days

0

18

Toro 104-6415

SPRING-RETURN, PEDAL
(Superseded to 137-7040)

$5.49

$

In Stock, Qty 20+

0

19

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 13

0

20

Toro 137-5004

BLOWER CHUTE ASM

$260.99

$

Usually ships in 3-6 days

0

20:1

Toro 136-7514

CHUTE-BLOWER

$256.99

$

Usually ships in 3-6 days

0

20:2

Toro 136-9187

INSERT-T-NUT

$1.99

$

Usually ships in 3-6 days

0

21

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

23

Toro 137-5003

BLOWER COVER ASM

$206.99

$

Usually ships in 3-6 days

0

23:2

Toro 136-4164

DECAL-DANGER

$17.99

$

Usually ships in 3-6 days

0

24

Toro 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

25

Toro 130-0742

BOLT-SHOULDER

$2.99

$

In Stock, Qty 20+

0

26

Toro 133-7058

LATCH-BLOWER

$11.99

$

Usually ships in 3-6 days

0

27

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

28

Toro 133-7048

SPRING-TORSION

$6.49

$

Usually ships in 3-6 days

0

30

Toro 98-8332

KNOB

$5.49

$

In Stock, Qty 13

0

31

Toro 103-4080

LATCH-RUBBER

$31.99

$

In Stock, Qty 6

0

32

Toro 9202704

WASHER-FLAT

$1.49

$

In Stock, Qty 15

0

33

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

34

Toro 136-9213-03

GUARD-BLOWER

$18.99

$

Usually ships in 3-6 days

0
