79347 - Toro Powered Bagger for Titan MAX Mower (SN: 400000000 - 409999999) Bagger and Hood Assembly Parts Diagram

Powered Bagger for Titan MAX Mower

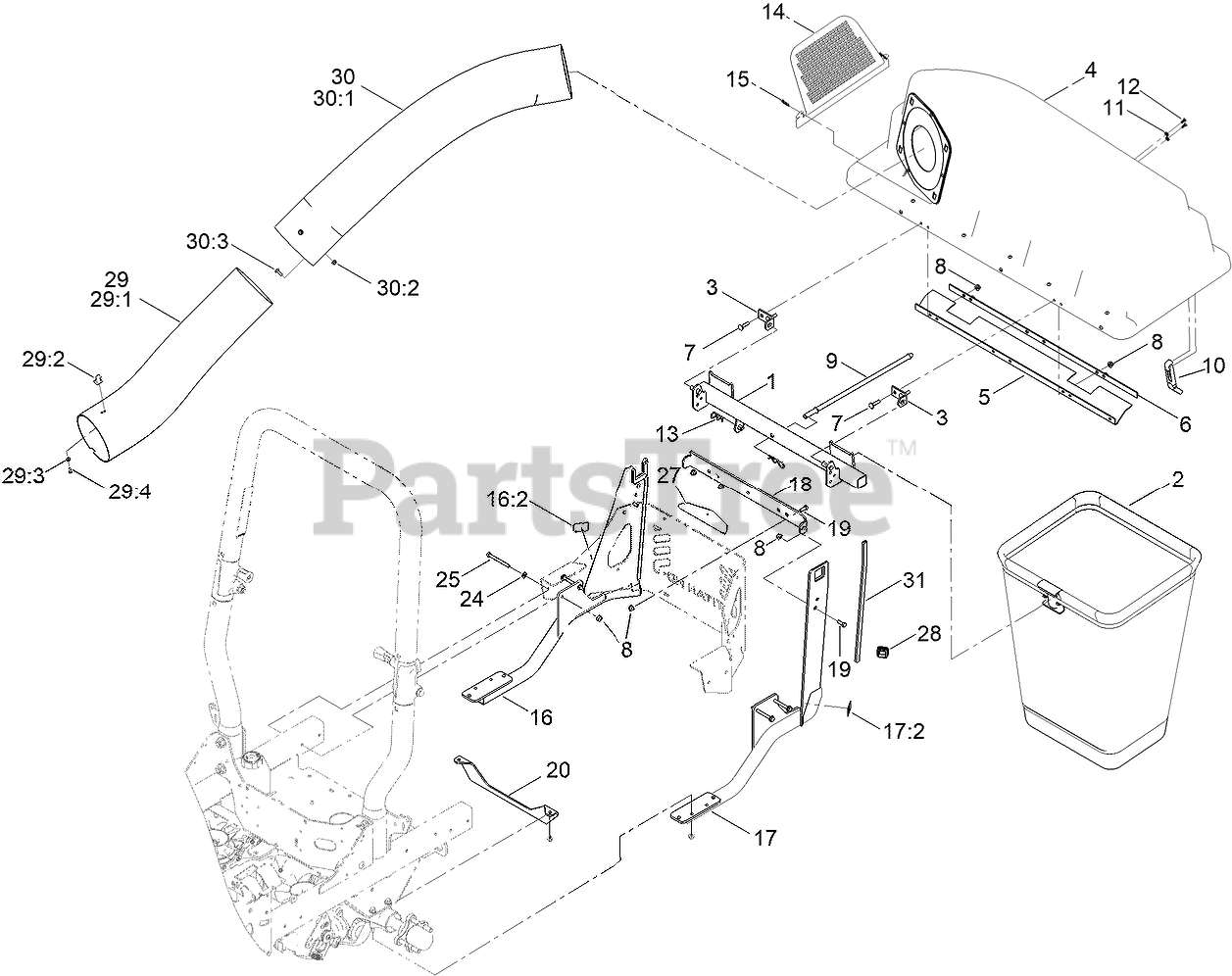

Bagger and Hood Assembly Parts Diagram

  • Title

1

Toro 116-4783-03

FRAME PIVOT ASM

$174.99

$

Usually ships in 3-6 days

0

2

Toro 116-0754

BAG AND FRAME ASM

$185.99

$

In Stock, only 2 left!

0

3

Toro 112-3987

BRACKET-PIVOT, HOPPER

$7.99

$

Usually ships in 3-6 days

0

4

Toro 121-3215

BAGGER HOOD ASM

$527.99

$

Usually ships in 3-6 days

0

5

Toro 116-4126

SEAL

$31.99

$

In Stock, only 2 left!

0

6

Toro 116-4127-03

PLATE-BACKING

$21.99

$

Usually ships in 3-6 days

0

7

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

8

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 116-6491

ROD-HOLD DOWN, HOOD

$56.99

$

Usually ships in 3-6 days

0

10

Toro 116-4992

LATCH-RUBBER

$49.99

$

In Stock, only 1 left!

0

11

Toro 3256-77

WASHER-FLAT

$2.49

$

In Stock, only 2 left!

0

12

Toro 107-7461

SCREW-PLASTITE

$1.49

$

In Stock, only 3 left!

0

13

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

14

Toro 112-3993

SCREEN-BAGGER

$29.99

$

In Stock, only 2 left!

0

15

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

16

Toro 126-9662

RH BAGGER SUPPORT ASM

$247.99

$

Usually ships in 3-6 days

0

16:2

Toro 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 4 left!

0

17

Toro 126-9663

LH BAGGER SUPPORT ASM

$247.99

$

Usually ships in 3-6 days

0

17:2

Toro 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 4 left!

0

18

Toro 140-9504-03

ANGLE - SUPPORT, BAGGER

$46.99

$

Usually ships in 3-6 days

0

19

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 126-5672-03

SUPPORT-TRANSMISSION

$35.99

$

Usually ships in 3-6 days

0

24

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Toro 126-8742

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

27

Toro 126-8299

COVER-HITCH

$7.99

$

Usually ships in 3-6 days

0

28

Toro 126-9159

PLUG

$5.49

$

Usually ships in 3-6 days

0

29

Toro 116-4128

LOWER TUBE ASM

$259.99

$

Usually ships in 3-6 days

0

29:1

Toro 116-4495

TUBE-LOWER

$127.99

$

Usually ships in 3-6 days

0

29:2

Toro 103-4081

LATCH-KEEPER

Note: Kit No. 103-4188 - Contains catch, rubber latch, and mounting hardware

$14.99

$

In Stock, only 2 left!

0

29:3

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29:4

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

30

Toro 116-4825

UPPER TUBE ASM

$269.99

$

Usually ships in 3-6 days

0

30:1

Toro 116-4496

TUBE-UPPER

$265.99

$

Usually ships in 3-6 days

0

30:2

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

30:3

Toro 1-803076

SCREW

$1.49

$

Usually ships in 3-6 days

0

31

Toro 126-9923

STRIP-TRIM

$7.99

$

0
