79350 - Toro 48" Snow/Dozer Blade (SN: 039000001 - 039999999) (1993) BLADE ASSEMBLY Parts Diagram

48" Snow/Dozer Blade

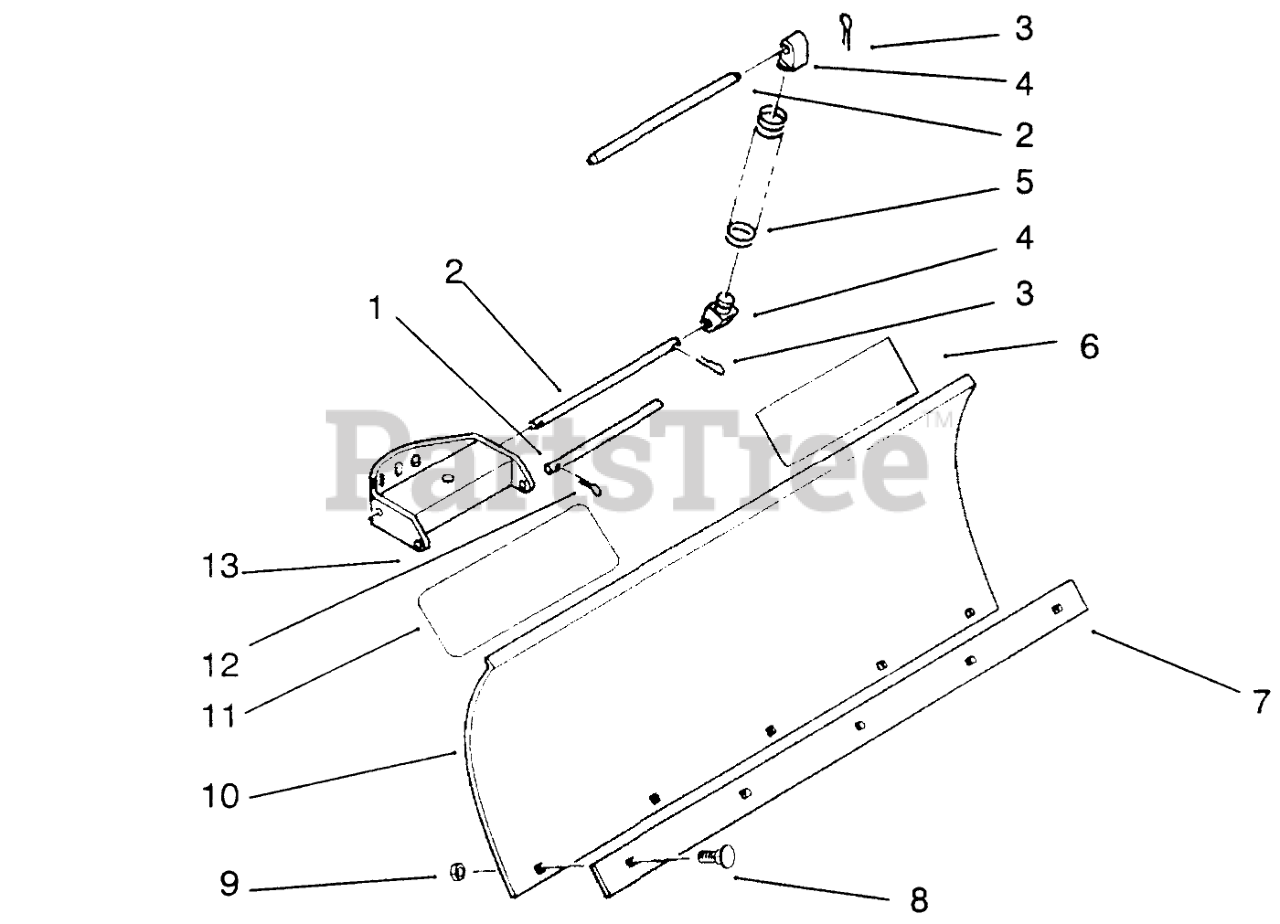

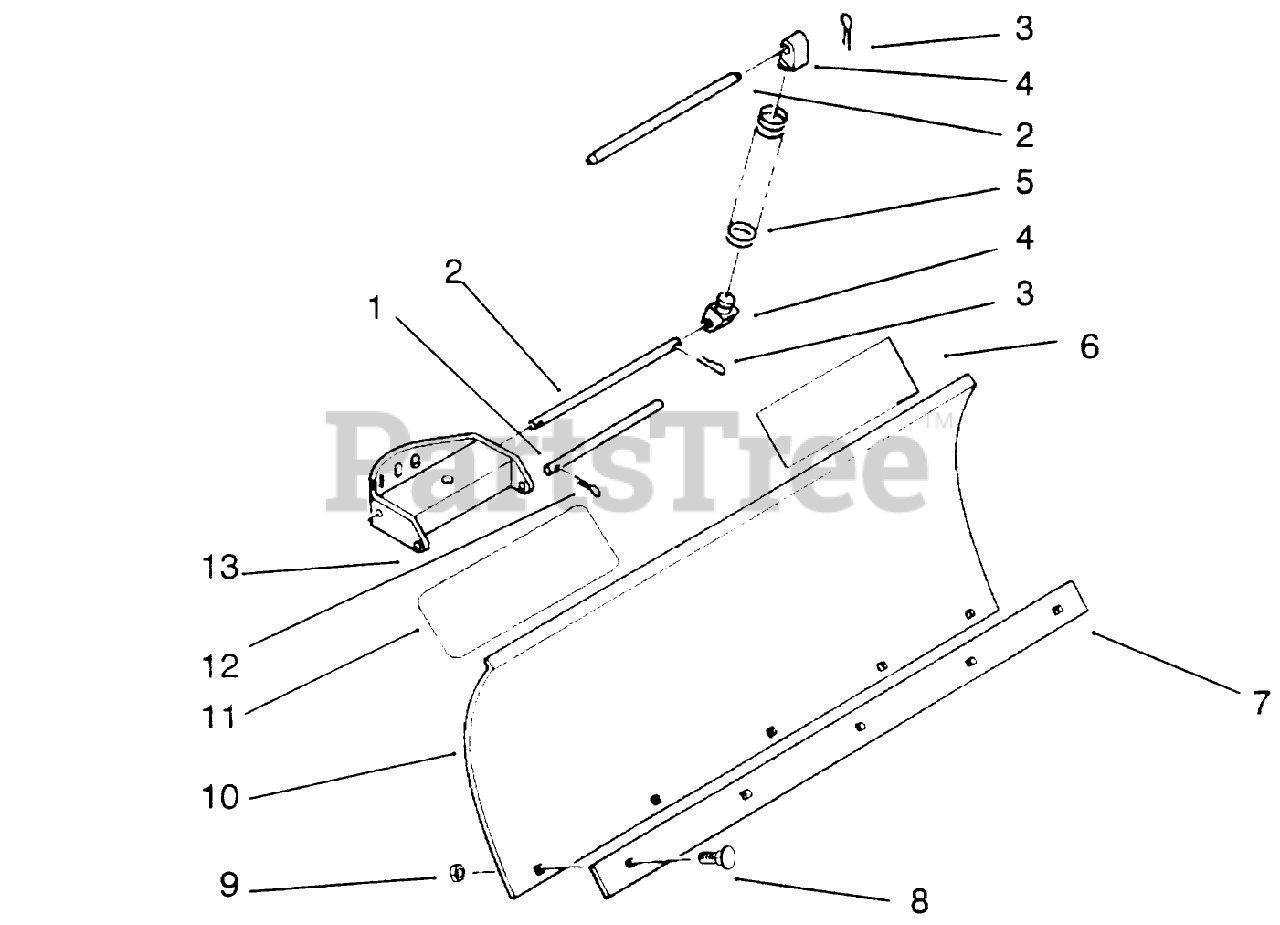

BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 4564

ROD-LOWER

$34.99

$

Usually ships in 3-6 days

0

2

Toro 5120

ROD-PIVOT, BLADE

$53.99

$

Usually ships in 3-6 days

0

3

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 10

0

4

Toro 88-2080

Lug
(Superseded to 105-1386-03)

$120.99

$

Usually ships in 3-6 days

0

5

Toro 5117

Spring
(Superseded to 105-1386-03)

$120.99

$

Usually ships in 3-6 days

0

6

Toro 117516

Decal
(Superseded to 76-1330)

$9.99

$

In Stock, only 1 left!

0

7

Toro 109596

Blade Edge Plate
(Superseded to 93-1612-03)

$45.99

$

In Stock, only 3 left!

0

8

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 92-7291

Blade (Incl. Ref. #11)
(Superseded to 78-1330-01)

$456.99

$

Usually ships in 3-6 days

0

11

Toro 92-1745

DECAL-DANGER

$

$

Not available

12

Toro 9335124

PIN-HAIR

$2.99

$

In Stock, only 1 left!

0

13

Toro 78-8760

Decal
(Superseded to 78-8760-01)

$239.99

$

Usually ships in 3-6 days

0

Toro 92-7286

Loose Parts
(Superseded to 406294)

Note: Not illustrated

$

$

Not available
