79350 - Toro 48" Snow/Dozer Blade (SN: 049000001 - 049999999) (1994) FRAME ASSEMBLY Parts Diagram

48" Snow/Dozer Blade

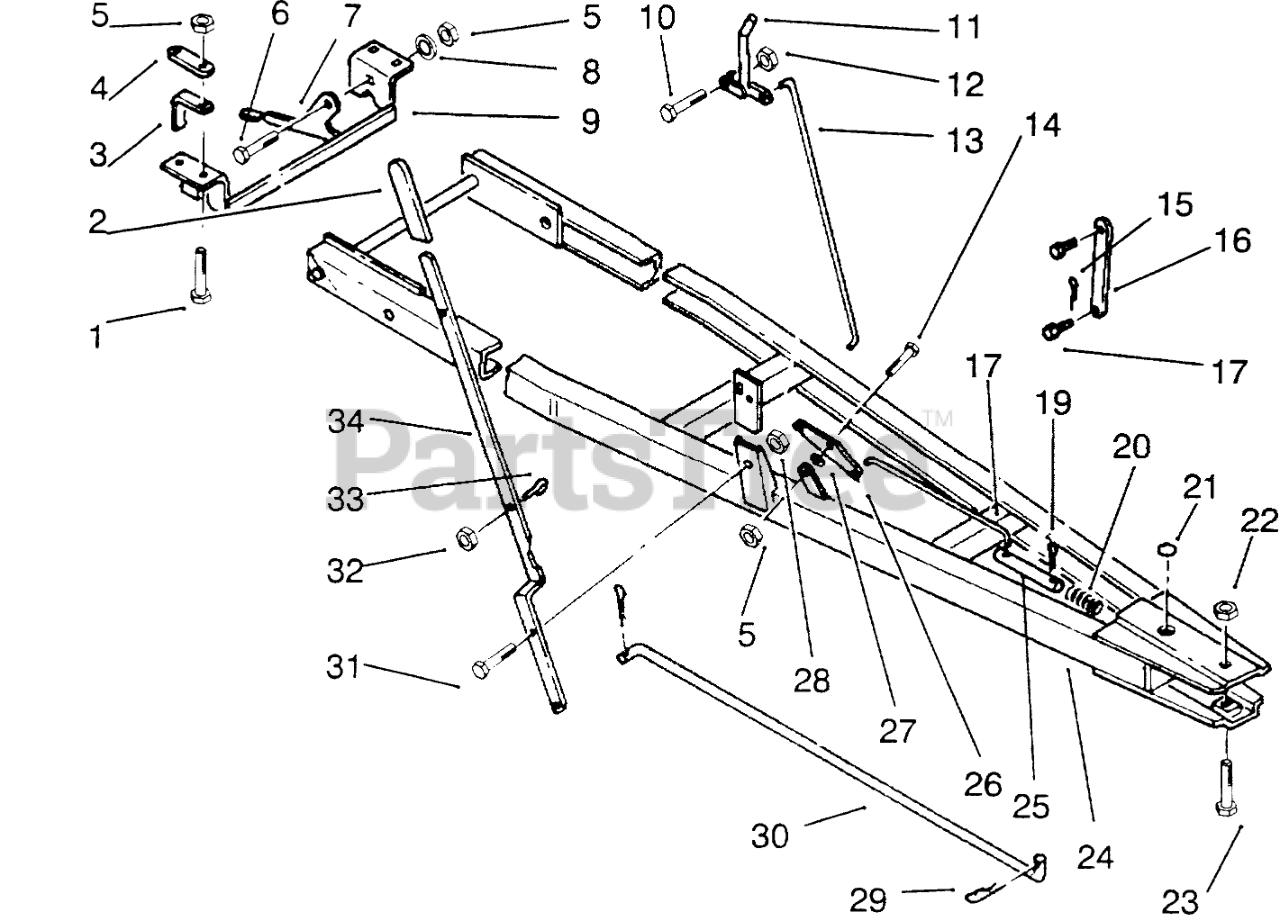

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 3231-11

SCREW-CARR

$5.49

$

In Stock, only 4 left!

0

2

Toro 5359

GRIP

$9.49

$

Usually ships in 3-6 days

0

3

Toro 7713

SPACER-BRACKET

$

$

Not available

4

Toro 3697

BRACKET-REAR LINK MOUNTING

$33.99

$

Usually ships in 3-6 days

0

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

6

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

7

Toro 104657

PLATE-LATCHING

$36.99

$

Usually ships in 3-6 days

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 104659

Bracket
(Superseded to 104659-01)

$171.99

$

Usually ships in 3-6 days

0

10

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 5107

INDEX LEVER

$

$

Not available

12

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

13

Toro 104341

UPPER INDEX ROD

$

$

Not available

14

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

15

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

16

Toro 105052

LINK-LIFT

$32.99

$

In Stock, only 3 left!

0

Toro 7706

LIFT BAR ASSY R
(Superseded to 7706-01)

Note: Not illustrated

$

$

Not available

17

Toro 9329624

CLEVIS PIN

$

$

Not available

18

Toro 3771

Head-Cylinder

$23.99

$

Usually ships in 3-6 days

0

19

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 10

0

20

Toro 2354

SPRING-COMPRESSION

$20.99

$

Usually ships in 3-6 days

0

21

Toro 4944

PLUG

$7.99

$

Usually ships in 3-6 days

0

22

Toro 9156404

NUT-LOCK
(Superseded to 3296-15)

$2.99

$

In Stock, Qty 9

0

23

Toro 3216-7

SCREW-HH

$21.99

$

Usually ships in 3-6 days

0

24

Toro 108567

Frame Assembly (Incl. Ref. # 19, 20 & 25 )

$

$

Not available

25

Toro 5127

Index Pin

$

$

Not available

26

Toro 3770

Index Plate
(Superseded to 92-7037)

$28.99

$

Usually ships in 3-6 days

0

27

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 9152384

Nut-Jam
(Superseded to 3218-5)

$1.49

$

In Stock, Qty 10

0

29

Toro 9335124

PIN-HAIR

$2.99

$

In Stock, only 1 left!

0

30

Toro 104338

ROD

$104.99

$

Usually ships in 3-6 days

0

31

Toro 325-4

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

32

Toro 9157404

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

33

Toro 108566

EYEBOLT

$7.49

$

Usually ships in 3-6 days

0

34

Toro 104340

Index Lever
(Superseded to 94-6686-01)

$77.99

$

Usually ships in 3-6 days

0
