79350 - Toro 48" Snow/Dozer Blade (SN: 099000001 - 099999999) (1999)

48" Snow/Dozer Blade

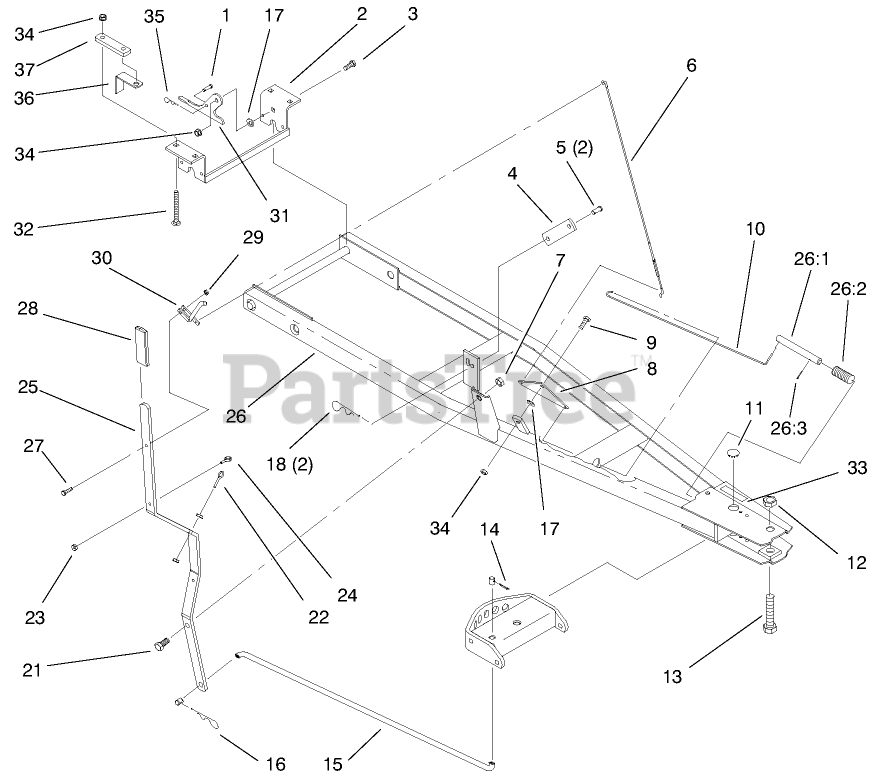

79350 - Toro 48" Snow/Dozer Blade (SN: 099000001 - 099999999) (1999) > Parts Diagrams (2) > FRAME ASSEMBLY

  • Title
9231204

1

Pin-Clevis

Part# 9231204

OEM Warranty Repair Part for Toro

Not available

104659

2

Bracket

Part# 104659 (Superseded to 104659-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $113.37

3231-25

3

BOLT-CARR

Part# 3231-25

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.98

105052

4

LINK-LIFT

Part# 105052

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $21.00

7706

LIFT BAR ASSY R

Part# 7706 (Superseded to 7706-01)

Note: Not illustrated

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $94.23

283-2

5

PIN-CLEVIS

Part# 283-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.72

98-1745

6

ASM - CABLE ADJUSTABLE

Part# 98-1745

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $62.88

3218-18

7

NUT-JAM

Part# 3218-18

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.37

92-7037

8

PLATE - INDEX

Part# 92-7037

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $18.70

323-6

9

SCREW-HH

Part# 323-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.85

3771

10

Head-Cylinder

Part# 3771

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.50

4944

11

PLUG

Part# 4944

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.05

3296-15

12

NUT-LOCK, NI

Part# 3296-15

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.00

3216-7

13

SCREW-HH

Part# 3216-7

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $14.38

3272-11

14

PIN-COTTER

Part# 3272-11

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.88

104338

15

ROD

Part# 104338

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $69.24

9335124

16

PIN-HAIR

Part# 9335124

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.19

3256-24

17

WASHER-FLAT

Part# 3256-24

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.49

9335054

18

PIN-HAIR

Part# 9335054

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.04

325-4

21

SCREW-HH

Part# 325-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.97

94-6687

22

EYEBOLT

Part# 94-6687

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.80

3296-12

23

NUT-LOCK, NI

Part# 3296-12

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

108566

24

EYEBOLT

Part# 108566

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.88

94-6686

25

Lever-Index

Part# 94-6686 (Superseded to 94-6686-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $51.45

108567

26

ASSY-FRAME R

Part# 108567

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $593.70

88-6520

26:1

PIN-INDEX

Part# 88-6520

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $67.04

2354

26:2

SPRING-COMPRESSION

Part# 2354

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $13.25

3272-11

26:3

PIN-COTTER

Part# 3272-11

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.88

321-6

27

SCREW-HH

Part# 321-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.39

5359

28

GRIP

Part# 5359

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.02

32146-17

29

NUT-LOCK

Part# 32146-17 (Superseded to 3296-42)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.34

98-1743

30

LEVER

Part# 98-1743

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $31.23

104657

31

PLATE-LATCHING

Part# 104657

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $24.03

3231-11

32

SCREW-CARR

Part# 3231-11

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.00

3296-39

34

NUT-LOCK, NI

Part# 3296-39

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.00

9335044

35

PIN-HAIR

Part# 9335044

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.92

7713

36

SPACER-BRACKET

Part# 7713

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.98

3697

37

BRACKET-REAR LINK MOUNTING

Part# 3697

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $22.13
