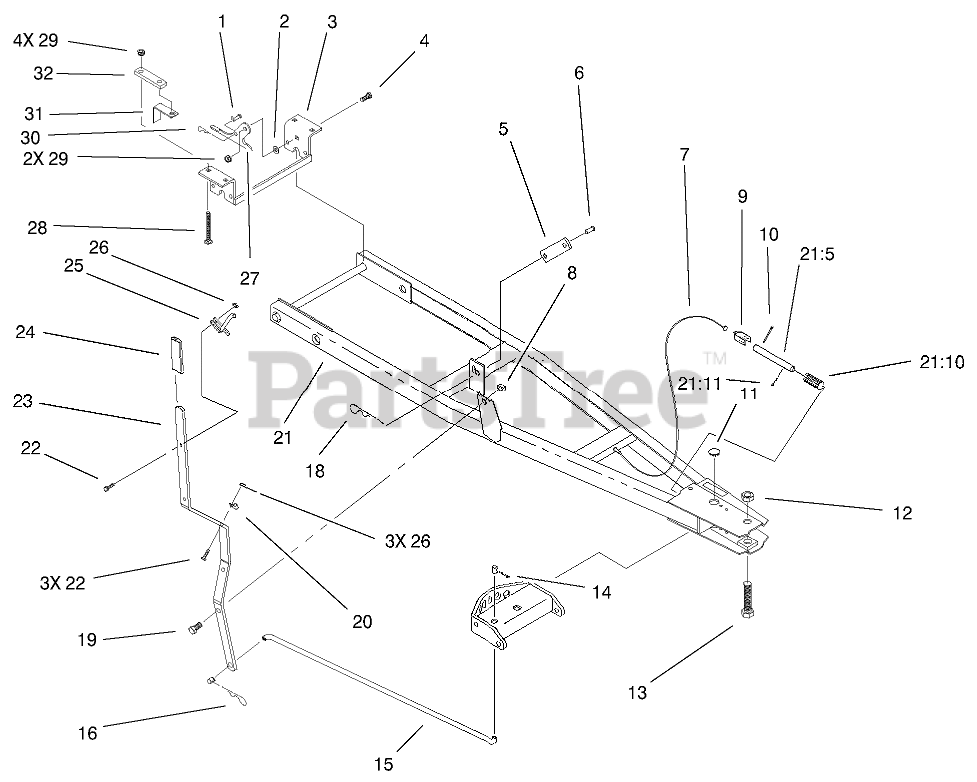

79350 - Toro 48" Snow/Dozer Blade (SN: 210000001 - 210999999) (2001) FRAME ASSEMBLY Parts Diagram

48" Snow/Dozer Blade

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 9321204

PIN-CLEVIS

$4.99

$

Usually ships in 3-6 days

0

2

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 104659-01

BRACKET-AXLE

$171.99

$

Usually ships in 3-6 days

0

4

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 16

0

5

Toro 105052

LINK-LIFT

$32.99

$

In Stock, only 3 left!

0

6

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 3 left!

0

7

Toro 104-1289

CABLE-TENSION

$74.99

$

Usually ships in 3-6 days

0

8

Toro 3218-18

NUT-JAM

$0.99

$

Usually ships in 3-6 days

0

9

Toro 94-7782

BRACKET - CABLE END

$22.99

$

Usually ships in 3-6 days

0

10

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

11

Toro 4944

PLUG

$7.99

$

Usually ships in 3-6 days

0

12

Toro 9156404

NUT-LOCK
(Superseded to 3296-15)

$2.99

$

In Stock, Qty 9

0

13

Toro 3216-7

SCREW-HH

$21.99

$

Usually ships in 3-6 days

0

14

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 10

0

15

Toro 104338

ROD

$104.99

$

Usually ships in 3-6 days

0

16

Toro 9335124

PIN-HAIR

$2.99

$

In Stock, only 1 left!

0

18

Toro 9335054

PIN-HAIR

$1.99

$

In Stock, Qty 20+

0

19

Toro 325-4

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

20

Toro 2412-32

R-CLAMP

$8.99

$

Usually ships in 3-6 days

0

21

Toro 104-5039-01

FRAME

$

$

Not available

21:5

Toro 88-6520

PIN-INDEX

$100.99

$

Usually ships in 3-6 days

0

21:10

Toro 2354

SPRING-COMPRESSION

$20.99

$

Usually ships in 3-6 days

0

21:11

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 10

0

22

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 94-6686-01

LEVER-INDEX

$77.99

$

Usually ships in 3-6 days

0

24

Toro 5359

GRIP

$9.49

$

Usually ships in 3-6 days

0

25

Toro 98-1743

LEVER

$47.99

$

Usually ships in 3-6 days

0

26

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

27

Toro 104657

PLATE-LATCHING

$36.99

$

Usually ships in 3-6 days

0

28

Toro 3231-11

SCREW-CARR

$5.49

$

In Stock, only 4 left!

0

29

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

30

Toro 9335044

PIN-HAIR

$1.49

$

In Stock, Qty 14

0

31

Toro 7713

SPACER-BRACKET

$

$

Not available

32

Toro 3697

BRACKET-REAR LINK MOUNTING

$33.99

$

Usually ships in 3-6 days

0
