79351 - Toro 50" Mid-Mount Blade (SN: 039000001 - 039999999) (1993) LIFT LINKAGE ASSEMBLY Parts Diagram

50" Mid-Mount Blade

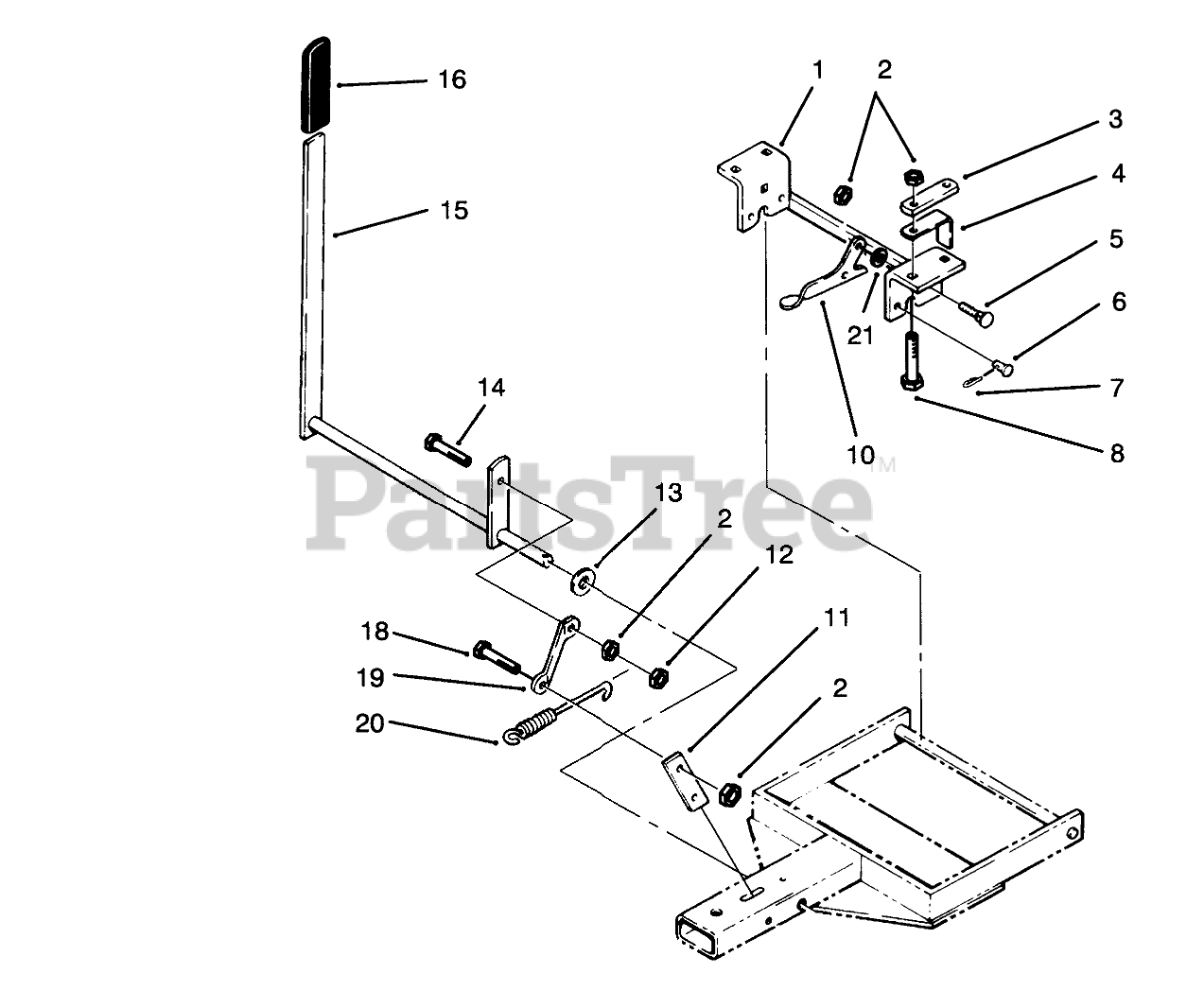

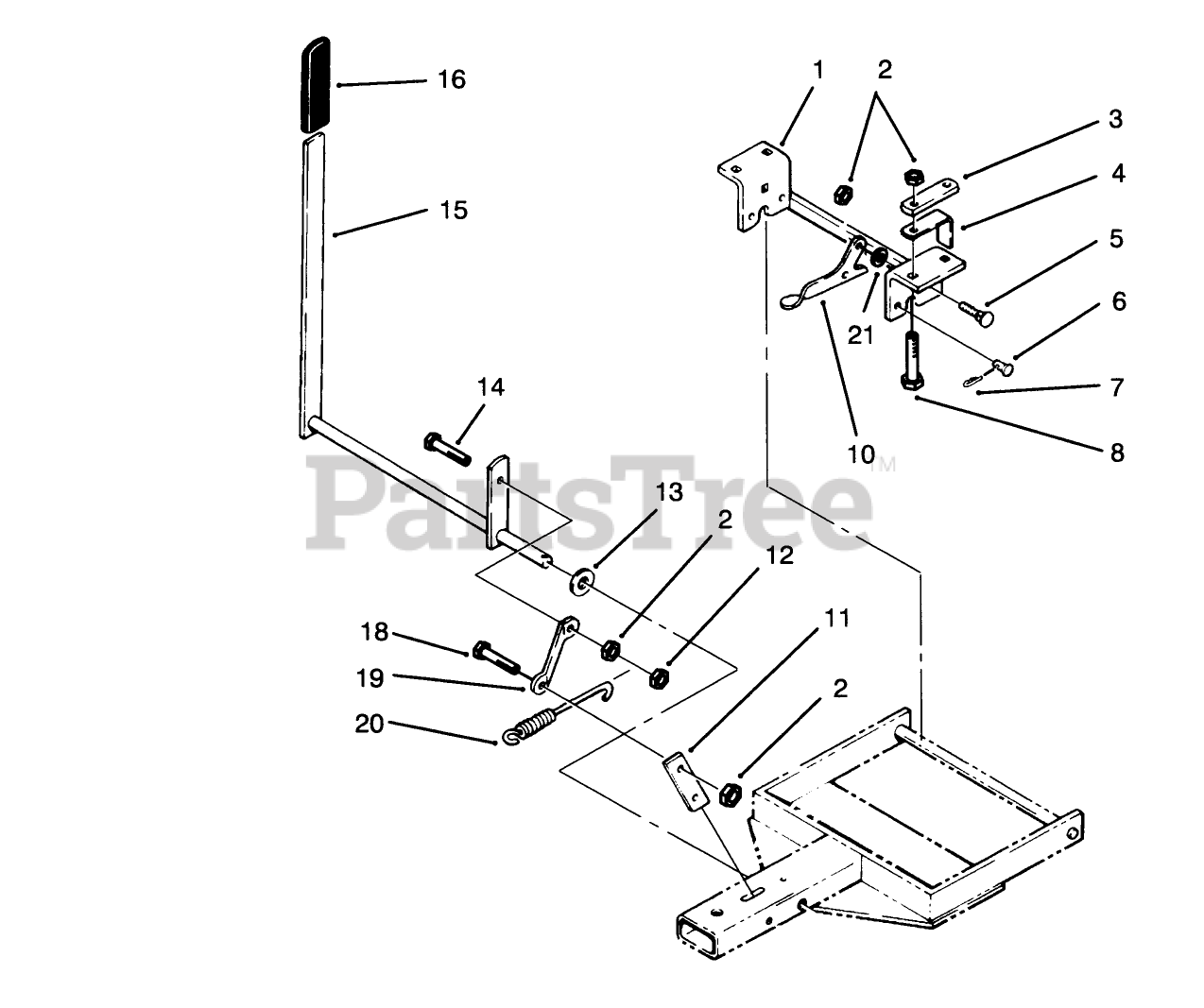

LIFT LINKAGE ASSEMBLY Parts Diagram

  • Title

1

Toro 104659

Bracket
(Superseded to 104659-01)

$171.99

$

Usually ships in 3-6 days

0

2

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

3

Toro 3697

BRACKET-REAR LINK MOUNTING

$33.99

$

Usually ships in 3-6 days

0

4

Toro 7713

SPACER-BRACKET

$

$

Not available

5

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

6

Toro 9321204

PIN-CLEVIS

$4.99

$

Usually ships in 3-6 days

0

7

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 14

0

8

Toro 3231-11

SCREW-CARR

$5.49

$

In Stock, only 4 left!

0

10

Toro 104657

PLATE-LATCHING

$36.99

$

Usually ships in 3-6 days

0

11

Toro 113157

Latch
(Superseded to 113157-01)

$

$

Not available

12

Toro 109779

NUT-HEX, JAM

$

$

Not available

13

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

14

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

15

Toro 113155

ASS'Y-LATCH HANDL R

$165.99

$

Usually ships in 3-6 days

0

16

Toro 5359

GRIP

$9.49

$

Usually ships in 3-6 days

0

18

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

19

Toro 113156

Latch Link
(Superseded to 113156-01)

$

$

Not available

20

Toro 102572

SPRING

$23.99

$

Usually ships in 3-6 days

0

21

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
