79360 - Toro 42" Snow Thrower for 300 Series Tractors (SN: 049000001 - 049999999) (1994) AUGER ASSEMBLY Parts Diagram

42" Snow Thrower for 300 Series Tractors

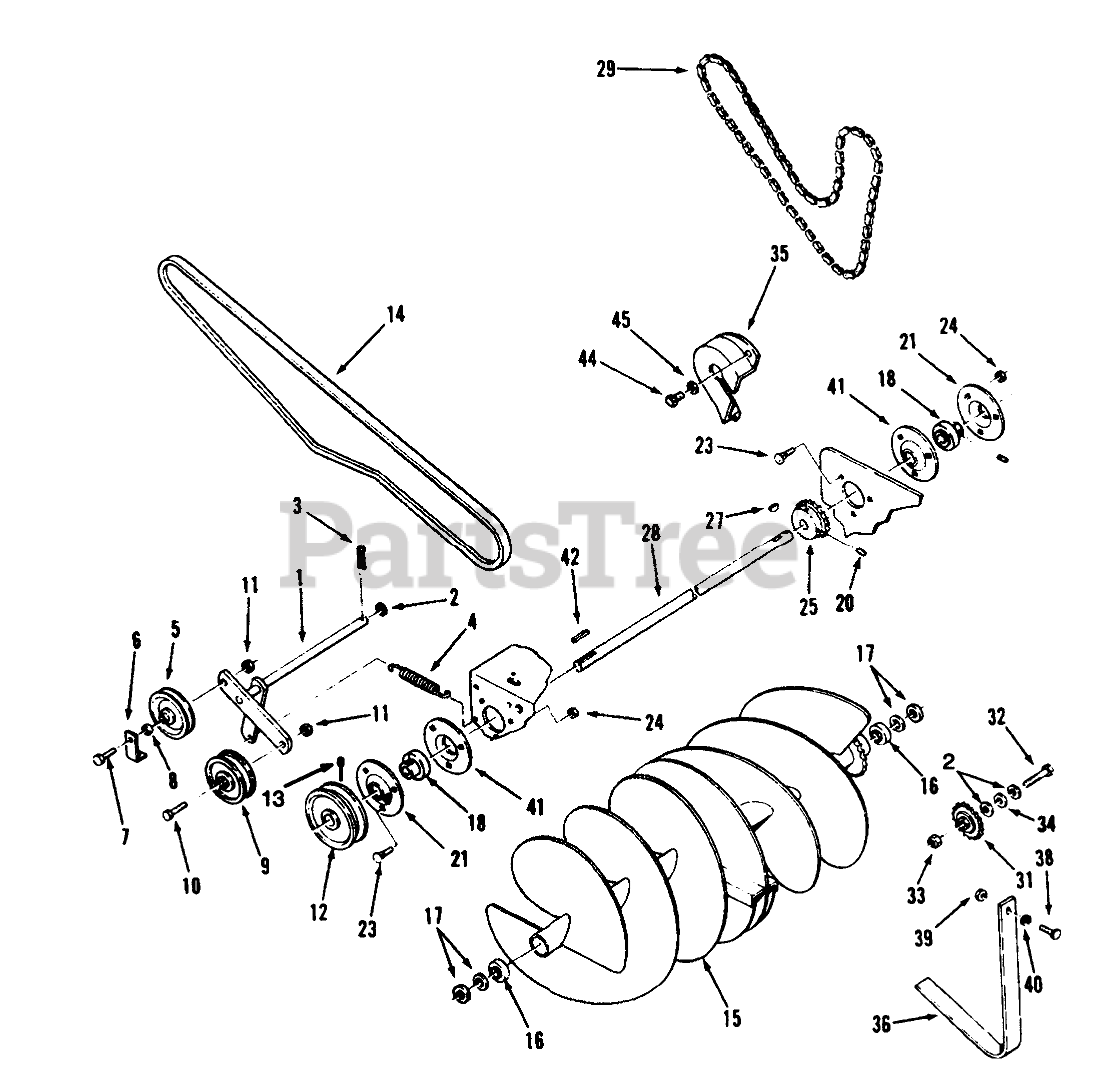

AUGER ASSEMBLY Parts Diagram

  • Title

1

Toro 78-0480

Arm Idler
(Superseded to 78-0480-01)

$

$

Not available

2

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 12

0

4

Toro 78-7480

SPRING-EXTENSION

$

$

Not available

5

Toro 7451

PULLEY-IDLER
(Superseded to 95-7668)

$27.99

$

In Stock, Qty 8

0

6

Toro 7450

Spacer
(Superseded to 7450-01)

$

$

Not available

7

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 104662

SPACER

$9.49

$

Usually ships in 3-6 days

0

9

Toro 92-7101

PULLEY-IDLER, FLAT

$36.99

$

In Stock, only 1 left!

0

10

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

12

Toro 113356

PULLEY

$107.99

$

In Stock, only 1 left!

0

13

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, only 3 left!

0

14

Toro 9750

V-BELT

$53.99

$

In Stock, only 2 left!

0

15

Toro 93-1615-01

Auger
(Superseded to 105-1478)

$

$

Not available

16

Toro 101480

BEARING-BALL

$53.99

$

In Stock, only 1 left!

0

17

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

18

Toro 110569

BEARING AND COLLAR

$117.99

$

In Stock, only 2 left!

0

20

Toro 3246-2

SCREW-SET, HSH

$0.99

$

In Stock, only 2 left!

0

21

Toro 110567

FLANGE-ZERK RELUBE

$27.99

$

In Stock, only 2 left!

0

23

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

24

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

25

Toro 78-0850

SPROCKET-14T H.T.
(Superseded to 78-0850-01)

$181.99

$

Usually ships in 3-6 days

0

27

Toro 937089

KEY-WOODRUFF

$2.49

$

In Stock, Qty 5

0

28

Toro 113320

Shaft
(Superseded to 113320-01)

$338.99

$

Usually ships in 3-6 days

0

29

Toro 6416

CHAIN

$232.99

$

In Stock, only 1 left!

0

31

Toro 93-1614-01

Idler Sprocket
(Superseded to 93-1614)

$59.99

$

In Stock, Qty 8

0

32

Toro 325-8

SCREW-HH

$5.99

$

In Stock, Qty 12

0

33

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

34

Toro 6417

SPACER

$

$

Not available

35

Toro 109218

GUARD-CHAIN

$81.99

$

Usually ships in 3-6 days

0

36

Toro 109244

Guard
(Superseded to 109244-01)

$87.99

$

Usually ships in 3-6 days

0

38

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

39

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 7

0

40

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

41

Toro 110568

Flange

$20.99

$

In Stock, only 3 left!

0

42

Toro 1005

KEY-STRAIGHT
(Superseded to 5-1077)

$7.49

$

In Stock, Qty 6

0

44

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

45

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

Toro 6392

MASTER LINK CHAIN
(Superseded to 2710-11)

Note: Not illustrated

$6.49

$

In Stock, only 1 left!

0
