79361 - Toro 44" Two-Stage Snow Thrower for 300 Series Tractors (SN: 039000001 - 039999999) (1993) Auger Housing Assembly Parts Diagram

44" Two-Stage Snow Thrower for 300 Series Tractors

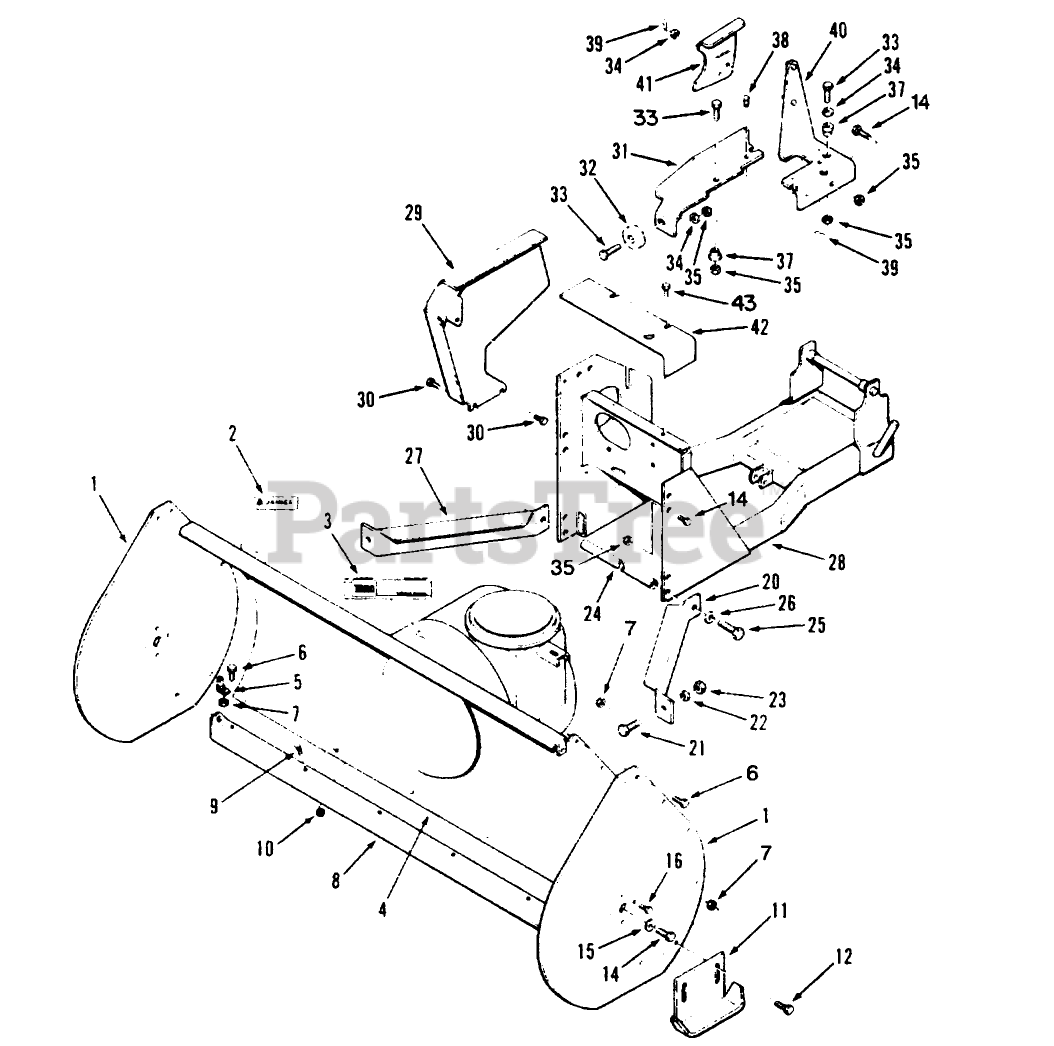

Auger Housing Assembly Parts Diagram

  • Title

1

Toro 57-3510

See Supercession: 57-3510-01
(Superseded to 57-3510-01)

$

$

Not available

2

Toro 53-7670

See Supercession: 94-2568
(Superseded to 94-2568)

$11.99

$

In Stock, only 3 left!

0

3

Toro 76-1330

DECAL - REAR FRAME

$9.99

$

In Stock, only 1 left!

0

4

Toro 92-6334

AUGER HSG/DECAL ASM

$

$

Not available

5

Toro 57-9890

See Supercession: 99-2304-03
(Superseded to 99-2304-03)

$36.99

$

Usually ships in 3-6 days

0

6

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 79-6670

See Supercession: 99-2303-01
(Superseded to 99-2303-01)

$197.99

$

Usually ships in 3-6 days

0

9

Toro 3229-25

See Supercession: 3229-1
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 5

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 78-0800

See Supercession: 78-0800-01
(Superseded to 78-0800-01)

$90.99

$

Usually ships in 3-6 days

0

12

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 6

0

14

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

15

Toro 2844

WASHER

$3.49

$

In Stock, Qty 14

0

16

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 117223

See Supercession: 117223-03
(Superseded to 117223-03)

$

$

Not available

21

Toro 3232-1

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

22

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 8

0

23

Toro 915664

See Supercession: 3296-48
(Superseded to 3296-48)

$0.99

$

In Stock, Qty 20+

0

24

Toro 117220

See Supercession: 117220-01
(Superseded to 117220-01)

$

$

Not available

25

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

26

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

27

Toro 117224

See Supercession: 117224-03
(Superseded to 117224-03)

$

$

Not available

28

Toro 117434

DISCONTINUED

$

$

Not available

29

Toro 117553

DISCONTINUED

$

$

Not available

30

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

31

Toro 79-2530

DISCONTINUED

$

$

Not available

32

Toro 101017

LOCK

$32.99

$

Usually ships in 3-6 days

0

33

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

34

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

35

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

37

Toro 104859

SPACER-LIFT LINK

$54.99

$

Usually ships in 3-6 days

0

38

Toro 932961

DISCONTINUED

$

$

Not available

39

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 5

0

40

Toro 117550

See Supercession: 117550-01
(Superseded to 117550-01)

$

$

Not available

41

Toro 117552

See Supercession: 117552-01
(Superseded to 117552-01)

$31.99

$

Usually ships in 3-6 days

0

42

Toro 117540

GUARD *R

$

$

Not available

43

Toro 926693

See Supercession: 9266934
(Superseded to 9266934)

$9.49

$

In Stock, only 4 left!

0
