79361 - Toro 44" Two-Stage Snow Thrower for 300 Series Tractors (SN: 039000001 - 039999999) (1993) AUGER HOUSING ASSEMBLY Parts Diagram

44" Two-Stage Snow Thrower for 300 Series Tractors

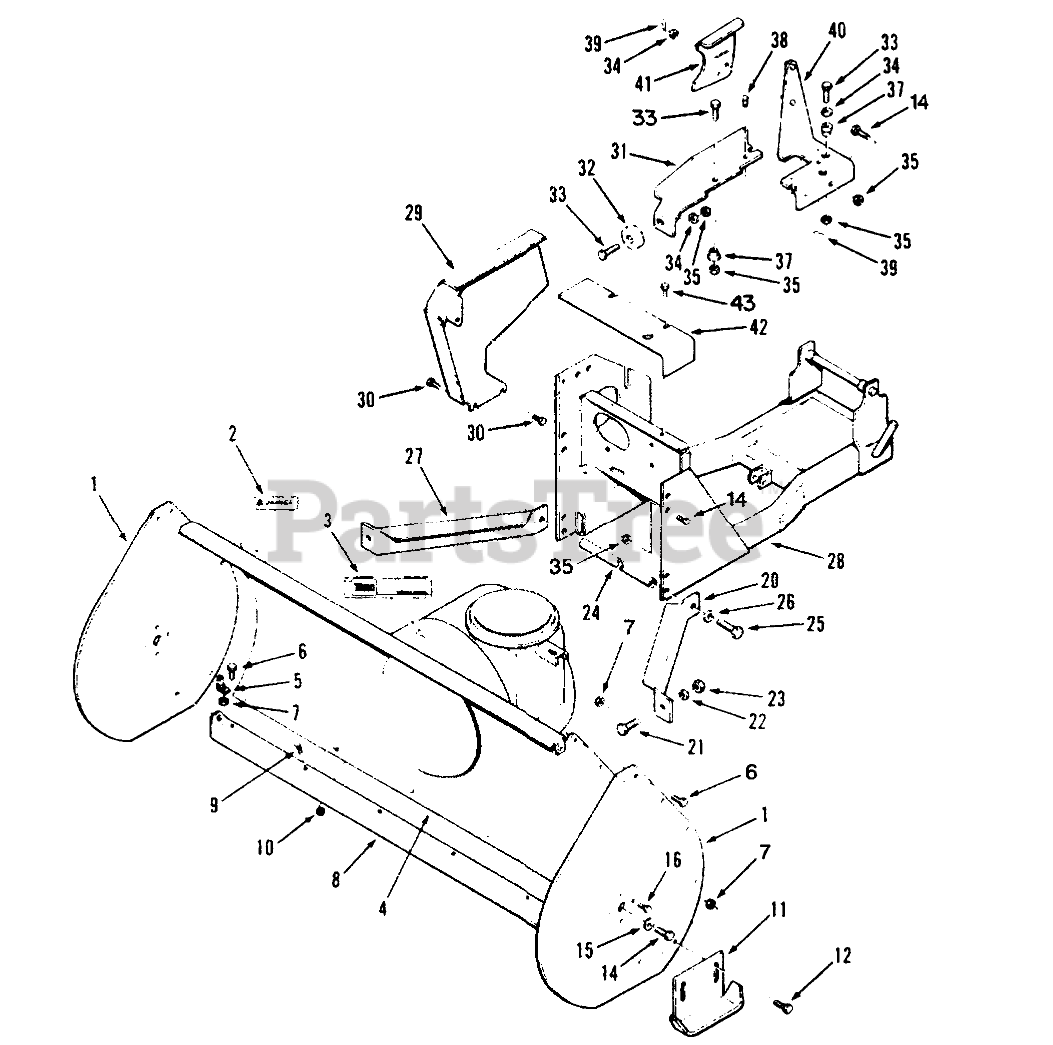

AUGER HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 57-3510

Plate-Side
(Superseded to 57-3510-01)

$

$

Not available

2

Toro 53-7670

DECAL-WARNING, AUGER
(Superseded to 94-2568)

$8.49

$

In Stock, only 3 left!

0

3

Toro 76-1330

DECAL - REAR FRAME

$9.99

$

In Stock, only 1 left!

0

4

Toro 92-6334

Housing-Auger (Incl. Ref. #2)

$3930.99

$

Usually ships in 3-6 days

0

5

Toro 57-9890

BLADE SUPPORT BRKT R
(Superseded to 99-2304-03)

$15.99

$

Usually ships in 3-6 days

0

6

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 79-6670

Blade-Scraper
(Superseded to 99-2303-01)

$177.99

$

Usually ships in 3-6 days

0

9

Toro 3229-25

SCREW-CARR
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 11

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 78-0800

Skid
(Superseded to 78-0800-01)

$83.99

$

Usually ships in 3-6 days

0

12

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

14

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

15

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

16

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 117223

BRACE-L.H. R
(Superseded to 117223-03)

$55.99

$

Usually ships in 3-6 days

0

21

Toro 3232-1

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

22

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 6

0

23

Toro 915664

Nut
(Superseded to 3296-48)

$0.99

$

In Stock, Qty 20+

0

24

Toro 117220

BRACE-CROSS R
(Superseded to 117220-01)

$

$

Not available

25

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

26

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

27

Toro 117224

BRACE-R.H. R
(Superseded to 117224-03)

$55.99

$

Usually ships in 3-6 days

0

28

Toro 117434

WLDMT-CARRIER FRA R

$

$

Not available

29

Toro 117553

WLDMT-BELT COVER R

$

$

Not available

30

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 16

0

31

Toro 79-2530

BRACKET-BUMPER R

$

$

Not available

32

Toro 101017

LOCK

$26.99

$

Usually ships in 3-6 days

0

33

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

34

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

35

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

37

Toro 104859

SPACER-LIFT LINK

$50.99

$

Usually ships in 3-6 days

0

38

Toro 932961

CLEVIS PIN

$

$

Not available

39

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 14

0

40

Toro 117550

WLDMT-BRKT GUARD R
(Superseded to 117550-01)

$154.99

$

Usually ships in 3-6 days

0

41

Toro 117552

GUARD-BELT R
(Superseded to 117552-01)

$24.99

$

Usually ships in 3-6 days

0

42

Toro 117540

GUARD R

$

$

Not available

43

Toro 926693

Bolt
(Superseded to 9266934)

$8.99

$

In Stock, Qty 5

0
