79361 - Toro 44" Two-Stage Snow Thrower for 300 Series Tractors (SN: 049000001 - 049999999) (1994) AUGER ASSEMBLY Parts Diagram

44" Two-Stage Snow Thrower for 300 Series Tractors

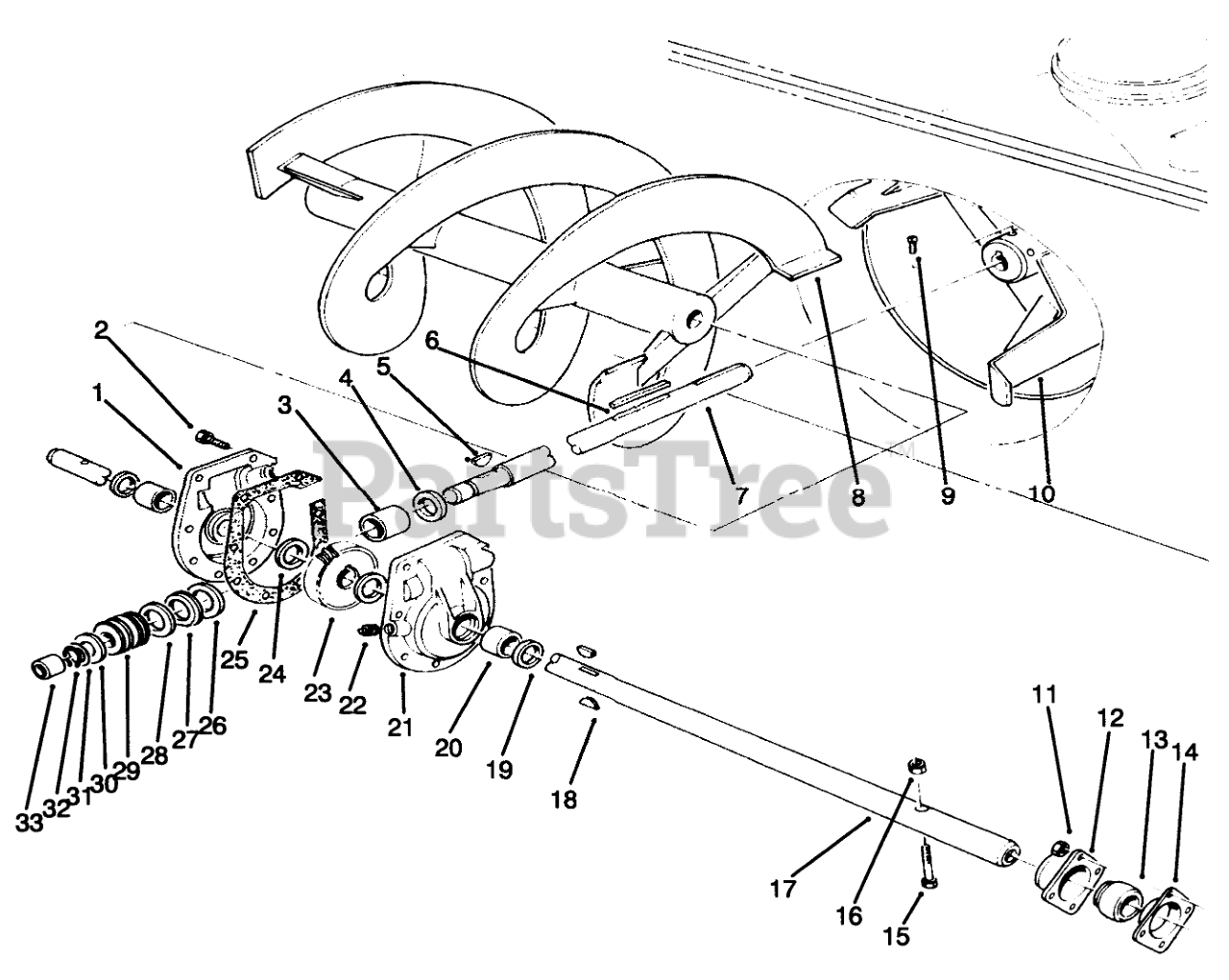

AUGER ASSEMBLY Parts Diagram

  • Title

1

Toro 14-2449

Gear Case Assembly (Incl. Ref. #19 & 20)

$164.99

$

In Stock, only 2 left!

0

2

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

3

Toro 20-3210

BUSHING-SPECIAL

$13.99

$

In Stock, only 3 left!

0

4

Toro 237-87

RING-QUAD

$7.99

$

In Stock, Qty 7

0

5

Toro 3257-23

KEY-WOODRUFF

$7.99

$

In Stock, Qty 9

0

6

Toro 6-8590

KEY

$13.99

$

Usually ships in 3-6 days

0

7

Toro 19-8540

SHAFT-IMPELLER

$397.99

$

Usually ships in 3-6 days

0

8

Toro 57-3300

Auger RH
(Superseded to 57-3300-03)

$951.99

$

Usually ships in 3-6 days

0

Toro 57-3370

Auger LH
(Superseded to 57-3370-03)

Note: Not illustrated

$

$

Not available

9

Toro 3242-6

SCREW-SET, SQH

$4.99

$

Usually ships in 3-6 days

0

10

Toro 19-8890

IMPELLER ASM
(Superseded to 19-8890-03)

$753.99

$

Usually ships in 3-6 days

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 20-0990

BEARING-FLANGE, FRONT

$12.99

$

In Stock, Qty 7

0

13

Toro 20-0980

BEARING

$25.99

$

In Stock, Qty 9

0

14

Toro 20-1000

BEARING-FLANGE, REAR

$12.99

$

In Stock, Qty 7

0

15

Toro 322-14

SCREW-HH

$2.99

$

In Stock, only 3 left!

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 57-3500

SHAFT-AUGER

$648.99

$

Usually ships in 3-6 days

0

18

Toro 3257-33

KEY-WOODRUFF

$2.49

$

Usually ships in 3-6 days

0

19

Toro 7-0045

SEAL-OIL

$20.99

$

In Stock, Qty 19

0

20

Toro 256-237

BUSHING

$17.99

$

In Stock, only 2 left!

0

21

Toro 12-2459

Gear Case Assembly (Incl. Ref. #19 & 20)

$

$

Currently unavailable

22

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0

23

Toro 5-7180

GEAR-WORM, 27T

$173.99

$

Usually ships in 3-6 days

0

24

Toro 252-71

WASHER-THRUST

$18.99

$

In Stock, only 2 left!

0

25

Toro 51-0460

GASKET-CASE, GEAR

$9.99

$

In Stock, Qty 5

0

26

Toro 252-78

WASHER-THRUST

$24.99

$

In Stock, only 2 left!

0

27

Toro 252-76

BEARING-THRUST

$23.99

$

In Stock, only 1 left!

0

28

Toro 252-77

THRUST-WASHER

$11.99

$

In Stock, only 3 left!

0

29

Toro 5-7170

GEAR

$124.99

$

In Stock, only 3 left!

0

30

Toro 3-8664

WASHER-THRUST

$7.49

$

In Stock, only 2 left!

0

31

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0

32

Toro 32120-72

Ring-Snap

$2.49

$

In Stock, Qty 7

0

33

Toro 256-32

BUSHING

$11.99

$

In Stock, Qty 9

0

Toro 822427

Gear Box-Assembly (Incl. Ref. #1-8 & 11-33)

Note: Not illustrated

$

$

Not available
