79365 - Toro 42" Single-Stage Snow Thrower for 5xi Tractors (SN: 200000001 - 200999999) (2000) AUGER AND DRIVE ASSEMBLY Parts Diagram

42" Single-Stage Snow Thrower for 5xi Tractors

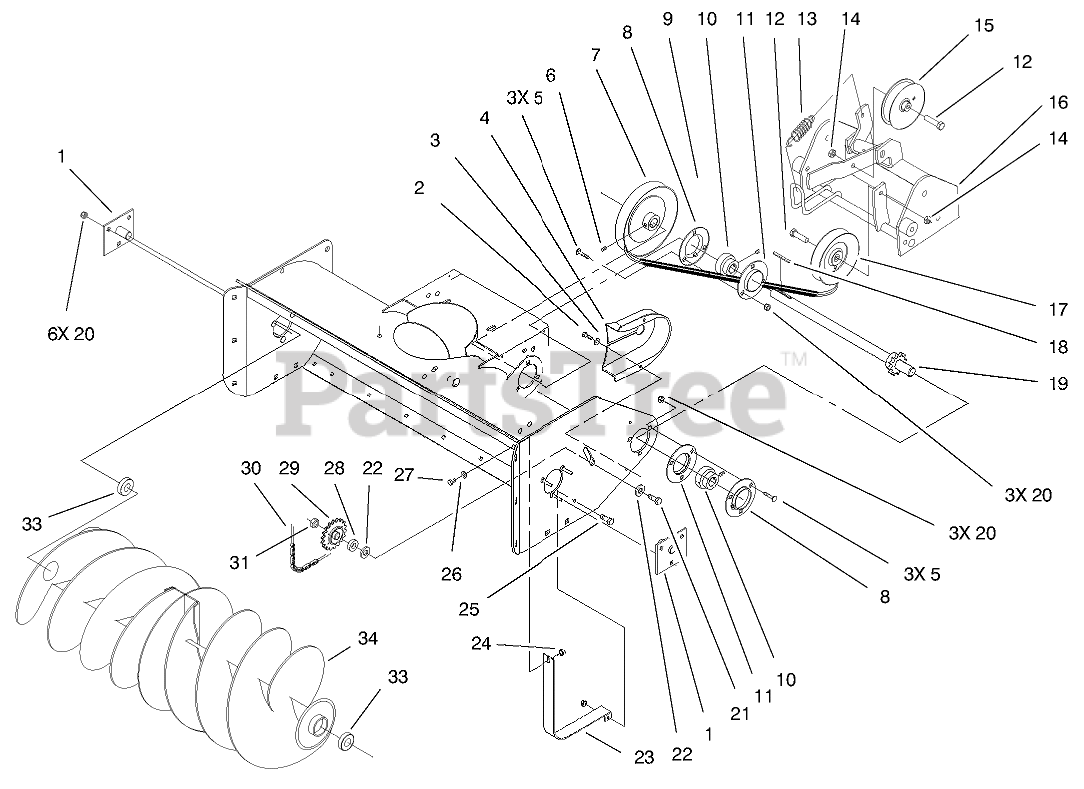

AUGER AND DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 93-1618-01

SUPPORT

$54.99

$

In Stock, only 2 left!

0

2

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

3

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 98-1631

GUARD-CHAIN

$

$

Not available

5

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

6

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, only 3 left!

0

7

Toro 94-7662

PULLEY

$

$

Not available

8

Toro 110568

Flange

$20.99

$

In Stock, only 3 left!

0

9

Toro 95-3918

V-BELT

$131.99

$

Usually ships in 3-6 days

0

10

Toro 110569

BEARING AND COLLAR

$117.99

$

In Stock, only 2 left!

0

11

Toro 110567

FLANGE-ZERK RELUBE

$27.99

$

In Stock, only 2 left!

0

12

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 94-2460

SPRING-EXTENSION

$40.99

$

Usually ships in 3-6 days

0

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 94-6236

PULLEY-IDLER

$152.99

$

In Stock, only 1 left!

0

16

Toro 95-4297-01

FRAME-PULLEY

$

$

Not available

17

Toro 94-2447

PULLEY-IDLER

$131.99

$

Usually ships in 3-6 days

0

18

Toro 1005

KEY-STRAIGHT
(Superseded to 5-1077)

$7.49

$

In Stock, Qty 8

0

19

Toro 94-7869-01

SHAFT-DRIVE

$771.99

$

Usually ships in 3-6 days

0

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 325-8

SCREW-HH

$5.99

$

In Stock, Qty 16

0

22

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 93-1619-01

GUARD-INNER

$46.99

$

In Stock, only 1 left!

0

24

Toro 32149-2

NUT-KEPS

$2.99

$

Usually ships in 3-6 days

0

25

Toro 1391

SCREW

$

$

Not available

26

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 6417

SPACER

$

$

Not available

29

Toro 93-1614-01

Idler Sprocket
(Superseded to 93-1614)

$59.99

$

In Stock, Qty 8

0

30

Toro 98-5083

CHAIN

$107.99

$

In Stock, only 2 left!

0

31

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

33

Toro 101480

BEARING-BALL

$53.99

$

In Stock, only 1 left!

0

34

Toro 93-1615-01

Auger
(Superseded to 105-1478)

$

$

Not available
