79366 - Toro 44" Two-Stage Snow Thrower for 5xi Tractor (SN: 200000001 - 200999999) (2000) DISCHARGE CHUTE ASSEMBLY Parts Diagram

44" Two-Stage Snow Thrower for 5xi Tractor

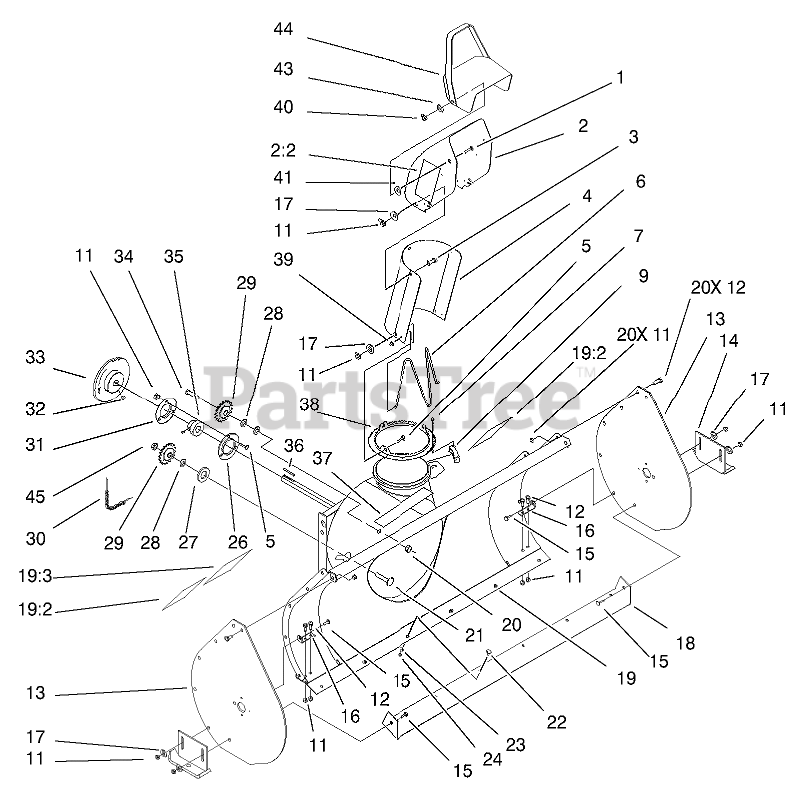

DISCHARGE CHUTE ASSEMBLY Parts Diagram

  • Title

1

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

2

Toro 94-1832

CHUTE

$

$

Not available

2:2

Toro 94-8079

DECAL-DANGER (only on: 38078)

$12.99

$

Usually ships in 3-6 days

0

3

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

4

Toro 26-1110-01

EXTENDER-CHUTE, UPPER

$183.99

$

Usually ships in 3-6 days

0

5

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

6

Toro 12-2040

WIRE-CHUTE

$

$

Not available

7

Toro 27-0220

SCREW-SPECIAL

$8.49

$

In Stock, only 4 left!

0

9

Toro 25-5450

RETAINER-CHUTE

$39.99

$

In Stock, only 2 left!

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 57-3510-01

PLATE-SIDE

$

$

Not available

14

Toro 78-0800-01

SUPPORT-SKID

$90.99

$

Usually ships in 3-6 days

0

15

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

16

Toro 99-2304

BRACKET-BLADE, SUPPORT
(Superseded to 99-2304-03)

$36.99

$

Usually ships in 3-6 days

0

17

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

18

Toro 99-2303-01

BLADE-SCRAPER

$192.99

$

Usually ships in 3-6 days

0

19

Toro 100-8027

AUGER HOUSING ASM

$5237.99

$

Usually ships in 3-6 days

0

19:2

Toro 63-2380

DECAL-DANGER

$

$

Not available

19:3

Toro 92-8652

DECAL-WARNING

$

$

Not available

20

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

21

Toro 3233-4

SCREW-CARR

$3.49

$

Usually ships in 3-6 days

0

22

Toro 3229-25

SCREW-CARR
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

23

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

26

Toro 110568

Flange

$20.99

$

In Stock, only 3 left!

0

27

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

28

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 93-1614-01

Idler Sprocket
(Superseded to 93-1614)

$59.99

$

In Stock, Qty 8

0

30

Toro 98-3098

CHAIN-DRIVE

$155.99

$

Usually ships in 3-6 days

0

31

Toro 119020

FLANGE-RELUBE

$25.99

$

Usually ships in 3-6 days

0

32

Toro 909546

SCREW-SET

$2.49

$

In Stock, only 2 left!

0

33

Toro 95-3867-01

SPROCKET-38 T
(Superseded to 95-3867-03)

$499.99

$

Usually ships in 3-6 days

0

34

Toro 325-7

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

35

Toro 110569

BEARING AND COLLAR

$117.99

$

In Stock, only 2 left!

0

36

Toro 6366

KEY

$5.49

$

Usually ships in 3-6 days

0

37

Toro 92-8748

DECAL-ATTACHMENT
(Superseded to 106-5839)

$

$

Not available

38

Toro 25-5290-01

RING-SWIVEL, CHUTE

$75.99

$

Usually ships in 3-6 days

0

39

Toro 3290-326

NUT-PUSH

$5.49

$

Usually ships in 3-6 days

0

40

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

41

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 5

0

43

Toro 3290-340

WASHER-BELLEVILLE

$8.49

$

In Stock, Qty 8

0

44

Toro 11-7120-01

DEFLECTOR

$127.99

$

Usually ships in 3-6 days

0

45

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0
