79370 - Toro 36" Tiller for 300 Series Tractors (SN: 039000001 - 039999999) (1993) Hitch Assembly Parts Diagram

36" Tiller for 300 Series Tractors

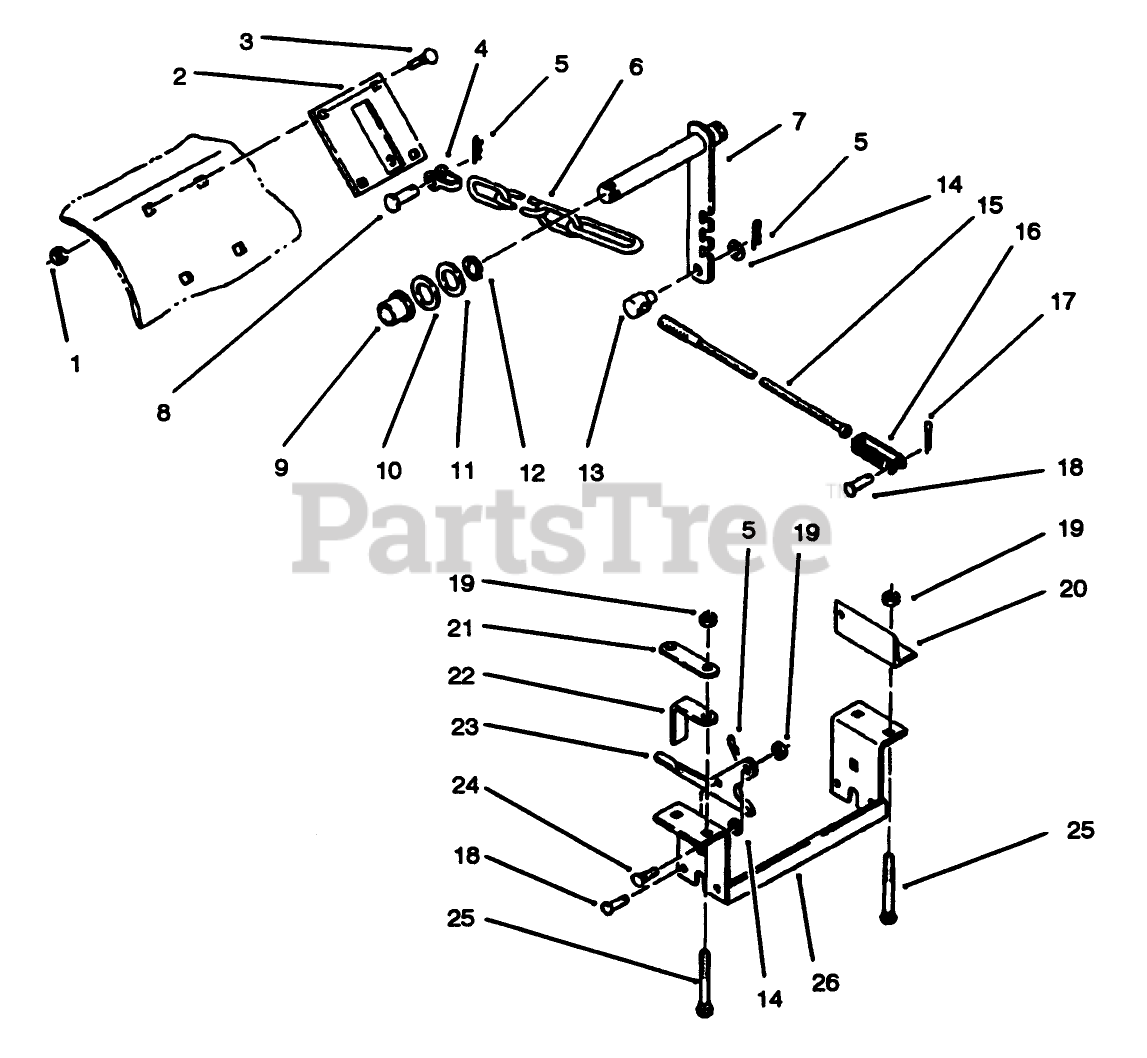

Hitch Assembly Parts Diagram

  • Title

1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 106531

DISCONTINUED
(Superseded to 93-1608-03)

$

$

Not available

3

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

4

Toro 79-2280

CLEVIS ASM

$21.99

$

In Stock, only 1 left!

0

5

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 5

0

6

Toro 110046

See Supercession: 92-7074
(Superseded to 92-7074)

$

$

Not available

7

Toro 110044

See Supercession: 110044-01
(Superseded to 110044-01)

$

$

Not available

8

Toro 105821

See Supercession: 9329584
(Superseded to 9329584)

$

$

Not available

9

Toro 108519

BUSHING-BRONZE

$17.99

$

In Stock, Qty 5

0

10

Toro 1278

WASHER

$2.49

$

In Stock, Qty 20+

0

11

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 20+

0

12

Toro 5618

E-RING

$1.49

$

In Stock, Qty 6

0

13

Toro 104524

TRUNNION-CLUTCH ROD

$49.99

$

Usually ships in 3-6 days

0

14

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 108144

CABLE

$113.99

$

Usually ships in 3-6 days

0

16

Toro 108145

CLEVIS-SHORT

$43.99

$

Usually ships in 3-6 days

0

Toro 108143

CLEVIS-LONG

Note: Not Illustrated.

$59.99

$

Usually ships in 3-6 days

0

17

Toro 932000

See Supercession: 3272-1
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 9

0

18

Toro 932120

See Supercession: 9321204
(Superseded to 9321204)

$5.49

$

Usually ships in 3-6 days

0

19

Toro 32146-2

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

20

Toro 108485

See Supercession: 108485-01
(Superseded to 108485-01)

$

$

Not available

21

Toro 3697

BRACKET-REAR LINK MOUNTING

$37.99

$

Usually ships in 3-6 days

0

22

Toro 7713

SPACER-BRACKET

$

$

Not available

23

Toro 104657

PLATE-LATCHING

$46.99

$

Usually ships in 3-6 days

0

24

Toro 2131-2

See Supercession: 3231-2
(Superseded to 323-12)

$2.99

$

In Stock, Qty 7

0

25

Toro 3231-11

SCREW-CARR

$5.49

$

In Stock, only 4 left!

0

26

Toro 104659

See Supercession: 104659-01
(Superseded to 104659-01)

$

$

Not available
