79375 - Toro 36" Tiller for 5xi Tractors (SN: 200000001 - 200999999) (2000) PULLEY BOX ASSEMBLY Parts Diagram

36" Tiller for 5xi Tractors

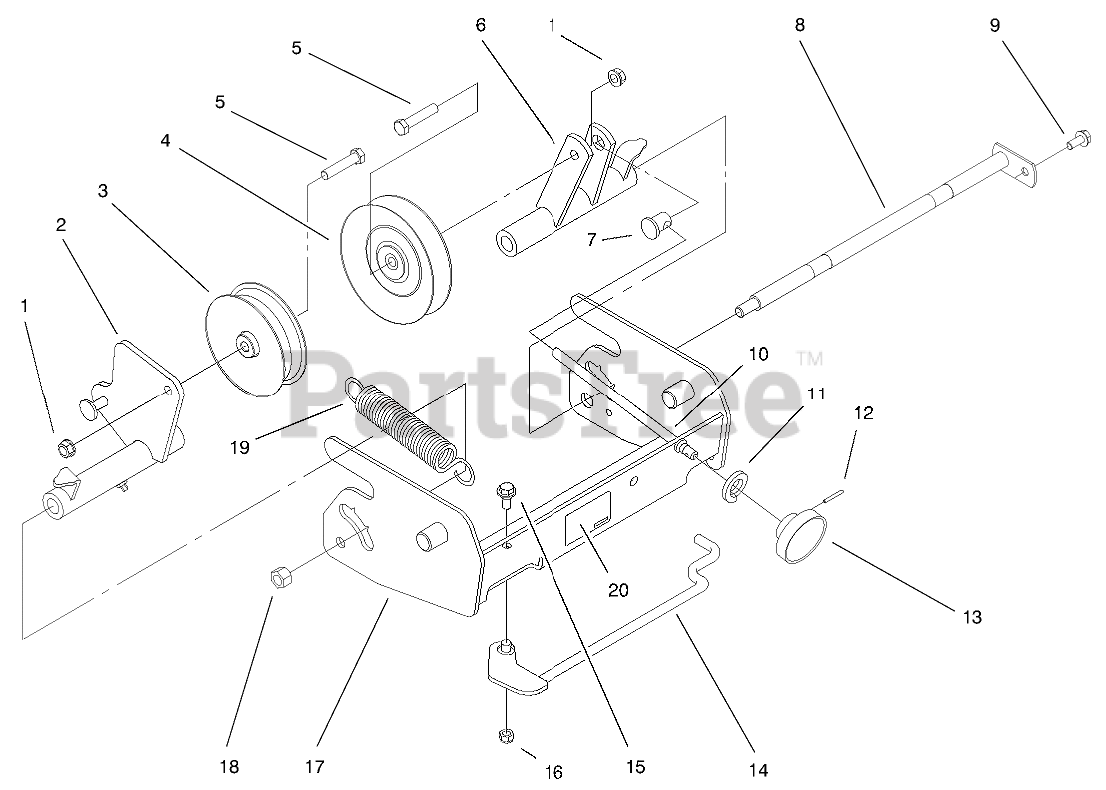

PULLEY BOX ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

2

Toro 94-7838

WA - IDLER ARM

$

$

Not available

3

Toro 98-3095

PULLEY-IDLER

$115.99

$

Usually ships in 3-6 days

0

4

Toro 94-2447

PULLEY-IDLER

$109.99

$

In Stock, only 1 left!

0

5

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 94-7799

Idler Lever
(Superseded to 94-7799-03)

$

$

Not available

7

Toro 94-2449

FERRULE-ADJUSTER

$35.99

$

Usually ships in 3-6 days

0

8

Toro 94-2423

ROD-PIVOT

$165.99

$

Usually ships in 3-6 days

0

9

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

10

Toro 94-2288

ROD-TENSION

$10.99

$

Usually ships in 3-6 days

0

11

Toro 108571

WASHER-SPRING

$10.99

$

In Stock, only 2 left!

0

12

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 10

0

13

Toro 101851

KNOB-ADJUSTMENT

$23.99

$

In Stock, Qty 9

0

14

Toro 94-7764

TENSIONER-IDLER

$114.99

$

Usually ships in 3-6 days

0

15

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 7

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 94-2287-03

BOX-PULLEY

$147.99

$

Usually ships in 3-6 days

0

18

Toro 32152-9

NUT-HEX

$9.49

$

Usually ships in 3-6 days

0

19

Toro 94-2460

SPRING-EXTENSION

$36.99

$

Usually ships in 3-6 days

0

20

Toro 98-8082

DECAL-BELT ROUTING

$

$

Not available
