79401 - Toro 42" Easy Twin Vacuum Bagger (SN: 079000001 - 079999999) (1997) DRIVE COMPONENTS ASSEMBLY Parts Diagram

42" Easy Twin Vacuum Bagger

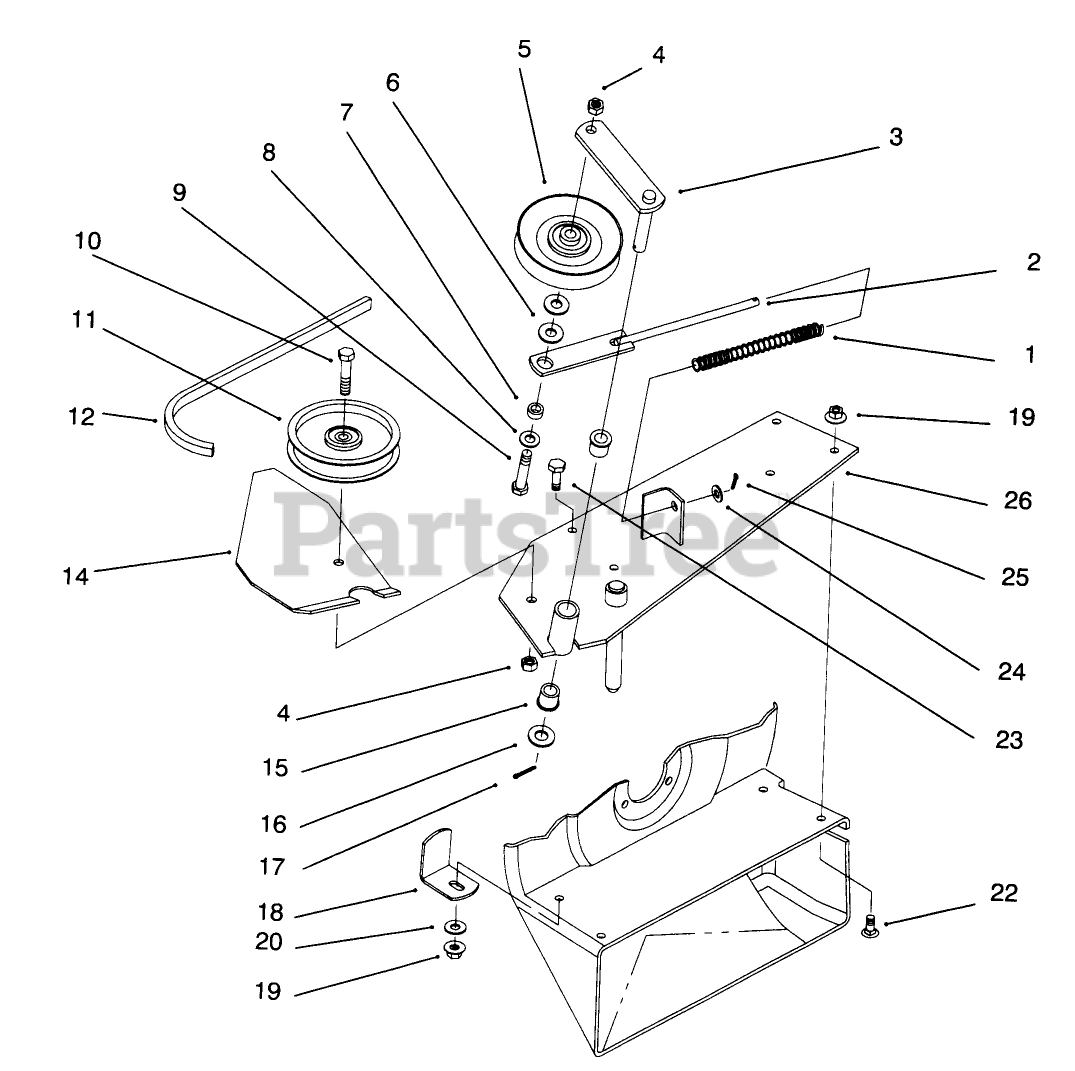

DRIVE COMPONENTS ASSEMBLY Parts Diagram

  • Title

1

Toro 79-7110

SPRING-COMPRESSION

$14.99

$

Usually ships in 3-6 days

0

2

Toro 79-2020

SPRING-ROD

$69.99

$

Usually ships in 3-6 days

0

3

Toro 79-1970

IDLER ARM ASM

$

$

Not available

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 92-7099

PULLEY-IDLER

$72.99

$

In Stock, only 2 left!

0

6

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

7

Toro 107213

SPACER

$11.99

$

In Stock, only 1 left!

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 323-10

SCREW-HH

$1.49

$

In Stock, only 1 left!

0

10

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 93-1622

PULLEY-IDLER

$53.99

$

In Stock, Qty 8

0

12

Toro 79-7480

V-BELT

$106.99

$

In Stock, only 1 left!

0

14

Toro 79-7280

SHIELD SUPPORT B
(Superseded to 79-7280-03)

$

$

Not available

15

Toro 100284

BUSHING

$

$

Not available

16

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 12

0

18

Toro 79-7440

BRACKET-SUPPORT, HOUSING

$

$

Not available

19

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

22

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

23

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

26

Toro 79-1380

BLOWER-MTG ASM
(Superseded to 79-1380-03)

$279.99

$

Usually ships in 3-6 days

0
