79402 - Toro 52" Vacuum Bagger (SN: 069000001 - 069999999) (1996) BLOWER HOUSING ASSEMBLY Parts Diagram

52" Vacuum Bagger

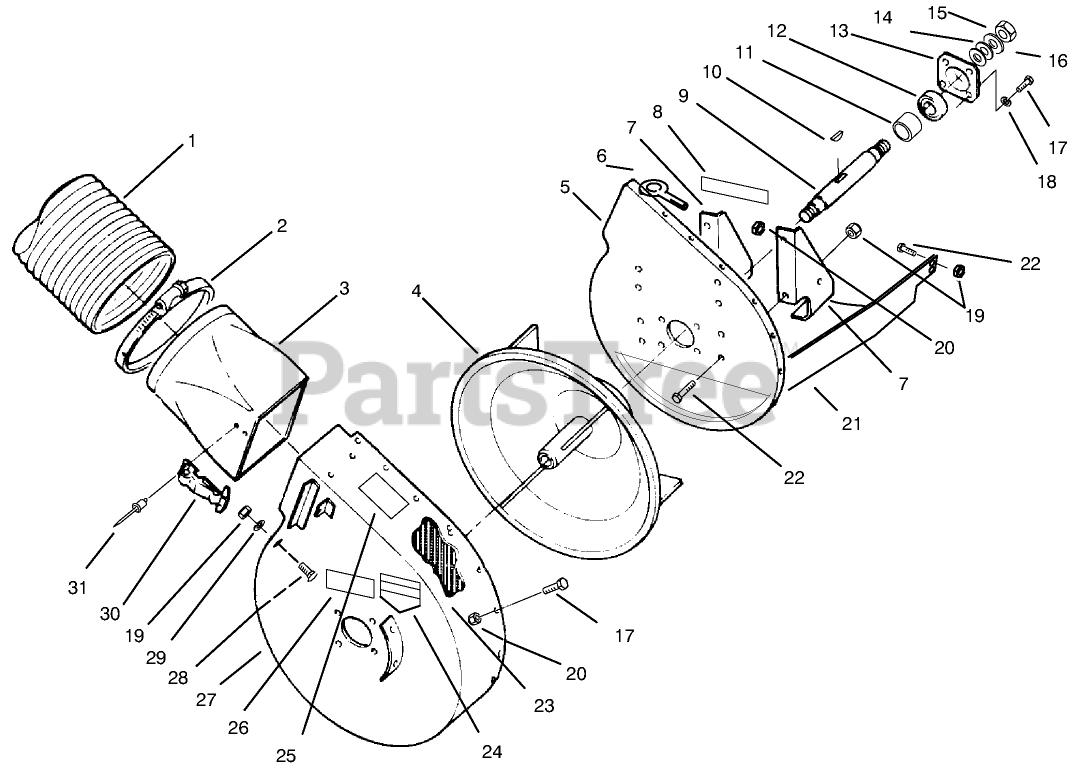

BLOWER HOUSING ASSEMBLY Parts Diagram

  • Title

1

Hose-Flexible (Ref.)

$

$

Not available

2

Toro 102528

CLAMP

$15.99

$

Usually ships in 3-6 days

0

3

Toro 79-0900

ADAPTER

$471.99

$

Usually ships in 3-6 days

0

4

Toro 79-1961

IMPELLER - WELDED BLACK

$1589.99

$

Usually ships in 3-6 days

0

5

Toro 94-9699

Mount Plate Asm (Incl. Ref. #8)

$1543.99

$

Usually ships in 3-6 days

0

6

Toro 102555

EYE BOLT

$

$

Not available

7

Toro 78-5560

BRACKET-BLOWER MT B

$77.99

$

Usually ships in 3-6 days

0

8

Toro 82-5510

DECAL

$

$

Not available

9

Toro 78-5410

SHAFT- BLOWER

$

$

Not available

10

Toro 3257-40

KEY

$9.49

$

In Stock, only 1 left!

0

12

Toro 38-7820

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

13

Toro 37-6730

CUP-BEARING

$18.99

$

In Stock, only 1 left!

0

11

Toro 7989

SPACER

$15.99

$

In Stock, only 2 left!

0

14

Toro 9202154

WASHER-FLAT

$3.49

$

In Stock, Qty 15

0

15

Toro 3218-12

NUT 5/8-11 L.H.

$

$

Not available

16

Toro 9202604

WASHER-FLAT

$10.99

$

Usually ships in 3-6 days

0

17

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

21

Toro 79-3520

DEFLECTOR-W.A. B

$

$

Not available

22

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 79-1880

STRIP-WEAR

$

$

Not available

24

Toro 79-0350

DECAL-DANGER

$

$

Not available

25

Toro 79-0360

DECAL-DANGER

$

$

Not available

26

Toro 93-1122

DECAL-DANGER

$10.99

$

In Stock, Qty 11

0

27

Toro 94-9698

Blower Housing Asm (Incl. Ref.# 23, 25 &26)

$

$

Not available

28

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

29

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

30

Toro 117344

HANDLE ASM

$38.99

$

In Stock, only 2 left!

0

31

Toro 3269-13

RIVET-POP

$0.99

$

In Stock, only 2 left!

0
