79409 (Z 300) - Toro 40" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 280000001 - 280999999) (2008) HYDRAULIC DRIVE ASSEMBLY Parts Diagram

40" Z Master Zero-Turn Mower, Side-Discharge Deck

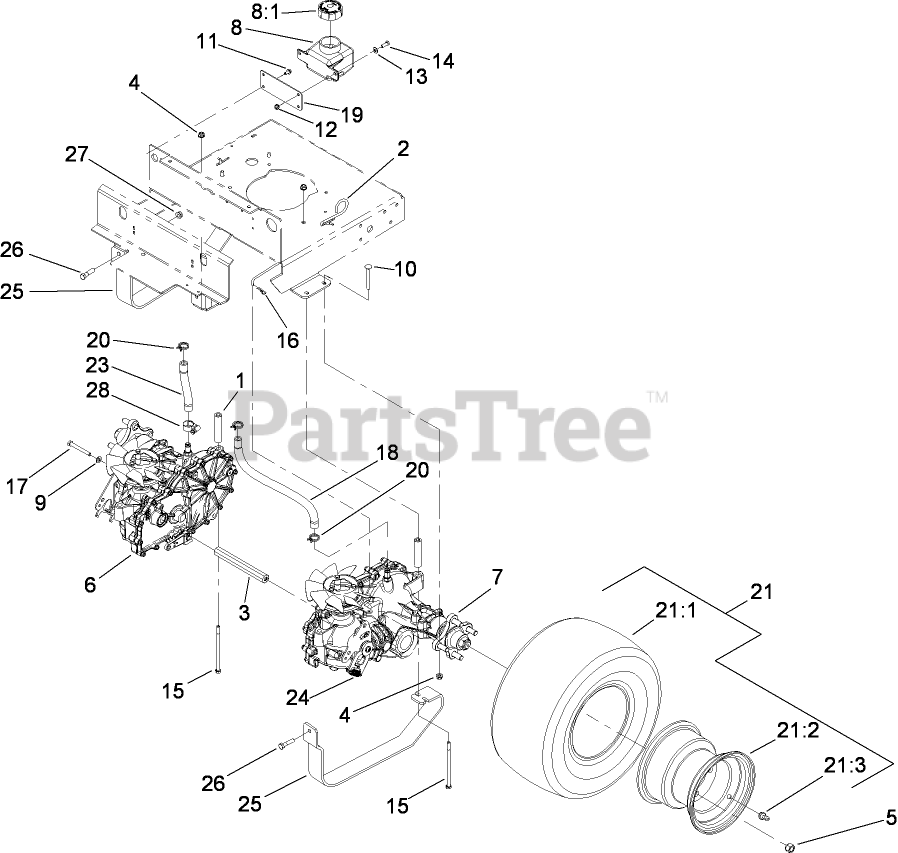

HYDRAULIC DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 103-9397

SPACER-HYDRO

$19.99

$

Usually ships in 3-6 days

0

2

Toro 103-9380

ROD-BYPASS, HYDRO

$22.99

$

Usually ships in 3-6 days

0

3

Toro 103-9398

SPACER-AXLE

$67.99

$

Usually ships in 3-6 days

0

4

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 242-50

NUT-LUG

$1.99

$

In Stock, Qty 20+

0

6

Toro 109-5846

TRANSMISSION-RH
(Superseded to 116-1204)

$2187.99

$

Usually ships in 3-6 days

0

7

Toro 109-5847

TRANSMISSION-LH
(Superseded to 116-1205)

$2187.99

$

Usually ships in 3-6 days

0

8

Toro 109-2250

TANK-HYD

$63.99

$

In Stock, Qty 15

0

8:1

Toro 109-3320

CAP-RESERVOIR, HYD

$27.99

$

In Stock, only 1 left!

0

9

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

10

Toro 3230-9

SCREW-CARR

$3.99

$

In Stock, Qty 9

0

11

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

12

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 1-800286

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

16

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

17

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 11

0

18

Toro 109-3459

HOSE-HYD

$19.99

$

Usually ships in 3-6 days

0

19

Toro 103-9350-03

PLATE-MOUNT, TANK

$14.99

$

Usually ships in 3-6 days

0

20

Toro 109-3322

CLAMP-HOSE

$1.49

$

In Stock, Qty 13

0

21

Toro 112-3795

WHEEL AND TIRE

$302.99

$

Usually ships in 3-6 days

0

21:1

Toro 112-3798

TIRE
(Superseded to 119-3516)

$119.99

$

Usually ships in 3-6 days

0

21:2

Toro 217-60

RIM

$120.99

$

Usually ships in 3-6 days

0

21:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 13

0

21:99

Toro 232-37

TUBE

Note: Not illustrated

$33.99

$

In Stock, only 2 left!

0

23

Toro 109-3319

HOSE-HYD

$7.99

$

Usually ships in 3-6 days

0

24

Toro 109-2631

SPRING-RETURN, NEUTRAL

$6.49

$

Usually ships in 3-6 days

0

25

Toro 114-0469-03

GUARD-TRANSMISSION

$87.99

$

Usually ships in 3-6 days

0

26

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

28

Toro 109-6801

CLAMP-HOSE

$9.49

$

Usually ships in 3-6 days

0
