79413 - Toro 60" Bagger Kit for Mower (SN: 416700000 - 999999999) Frame and Bag Assembly Parts Diagram

60" Bagger Kit for Mower

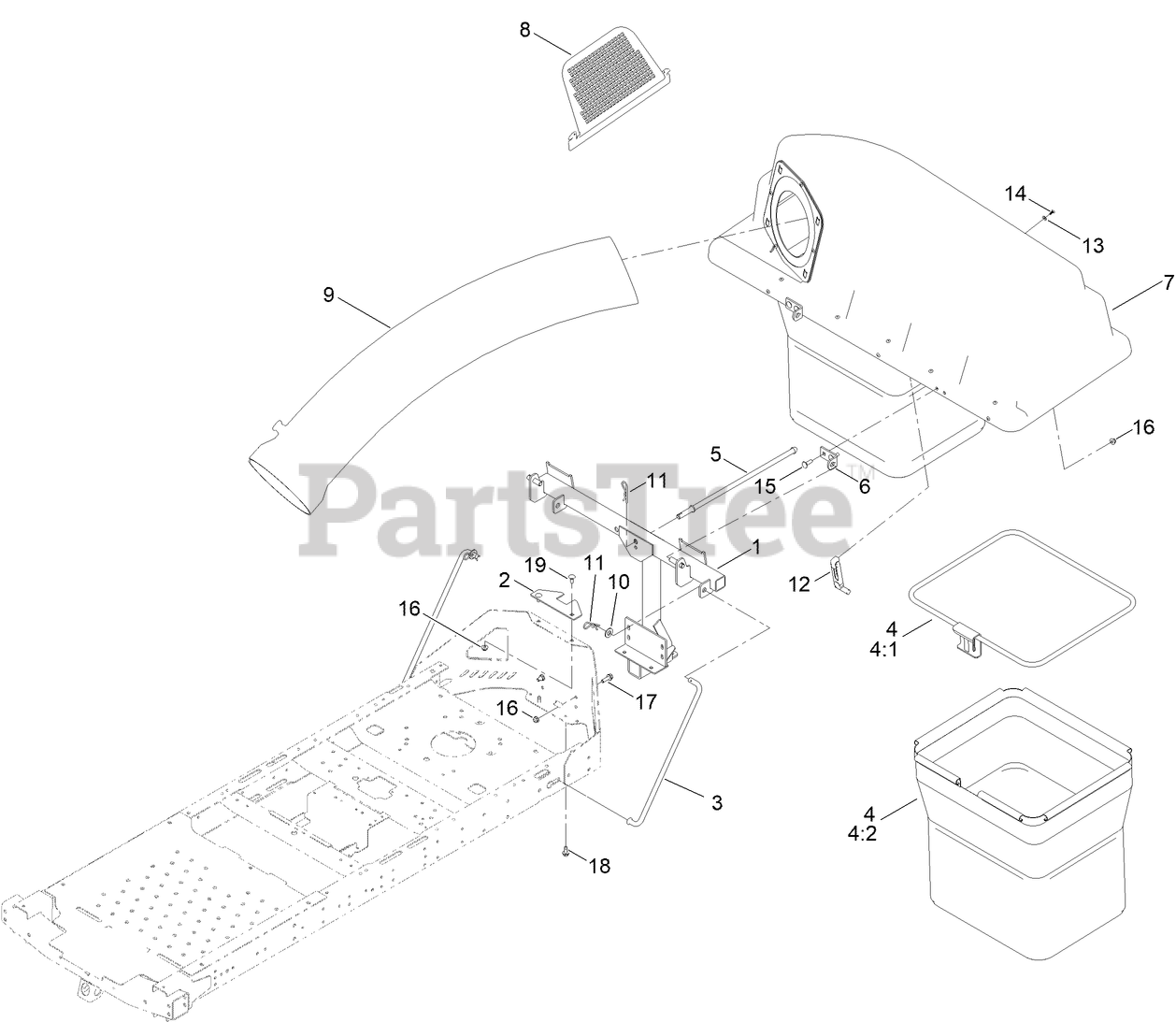

Frame and Bag Assembly Parts Diagram

  • Title

1

Toro 136-4231-03

FRAME-PIVOT

$395.99

$

Usually ships in 3-6 days

0

2

Toro 131-3967-03

BRACKET-STABILIZER

$6.99

$

In Stock, only 2 left!

0

3

Toro 140-5093

ROD-SUPPORT, CZ

$23.99

$

Usually ships in 3-6 days

0

4

Toro 147-2888

BAG ASM

$112.99

$

Usually ships in 0 days

0

4:1

Toro 140-5179-03

FRAME, BAG [BLACK]

$31.99

$

Usually ships in 3-6 days

0

4:2

Toro 140-5192

BAG ASM 20IN DEPTH

$91.99

$

Usually ships in 3-6 days

0

5

Toro 131-4189

ROD-HOOD, DOWN (HOLD)

$25.99

$

In Stock, only 2 left!

0

6

Toro 140-5016

BRACKET-HOPPER PIVOT

$5.49

$

Usually ships in 3-6 days

0

7

Toro 140-5096

TOP ASM-BAGGER

$275.99

$

Usually ships in 3-6 days

0

8

Toro 112-3993

SCREEN-BAGGER

$33.99

$

In Stock, only 2 left!

0

9

Toro 117-5379

TUBE-BAGGER

$239.99

$

Usually ships in 3-6 days

0

10

Toro 139-2611

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

11

Toro 139-2562

PIN-HAIR

$1.49

$

In Stock, Qty 9

0

12

Toro 116-4992

LATCH-RUBBER

$53.99

$

In Stock, only 2 left!

0

13

Toro 137-3073

WASHER-PLAIN

$1.49

$

Usually ships in 3-6 days

0

14

Toro 132-6919

SCREW-PLASTIC, PTH

$1.49

$

Usually ships in 3-6 days

0

15

Toro 110-3144

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

16

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 15

0

17

Toro 139-2596

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

18

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

19

Toro 139-2630

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0
