79431 - Toro 60" Vacuum Bagger for ZRT Tractor (SN: 059000001 - 059999999) (1995) BLOWER PULLEYS & IDLER ARM ASSEMBLY Parts Diagram

60" Vacuum Bagger for ZRT Tractor

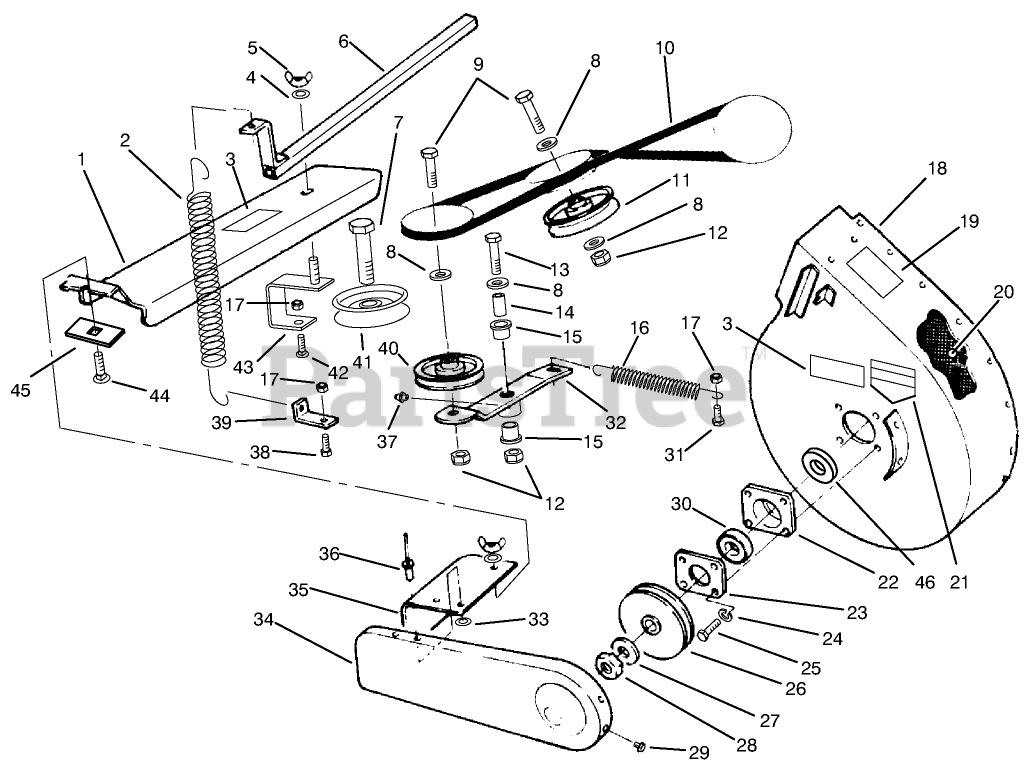

BLOWER PULLEYS & IDLER ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 78-6570

LATCH-BAGGER TOP B

$

$

Not available

2

Toro 79-0020

SPRING-EXTENSION

$

$

Not available

3

Toro 79-0350

DECAL-DANGER

$

$

Not available

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 32103-23

NUT-WING, LOCK

$

$

Not available

6

Toro 78-9510

SUPPORT-WELDED B

$121.99

$

Usually ships in 3-6 days

0

7

Toro 327-7

SCREW-HH

$13.99

$

In Stock, only 2 left!

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 108960

V-BELT

$61.99

$

Usually ships in 3-6 days

0

11

Toro 92-7099

PULLEY-IDLER

$69.99

$

In Stock, only 1 left!

0

12

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

13

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

14

Toro 114511

SPACER

$72.99

$

Usually ships in 3-6 days

0

15

Toro 109859

BUSHING

$15.99

$

Usually ships in 3-6 days

0

16

Toro 116172

SPRING - EXTENSION

$43.99

$

In Stock, only 1 left!

0

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 78-5441

Blower
(Superseded to 93-1636)

$

$

Not available

19

Toro 79-0360

DECAL-DANGER

$

$

Not available

20

Toro 79-1880

STRIP-WEAR

$

$

Not available

21

Toro 93-1122

DECAL-DANGER

$8.99

$

In Stock, Qty 16

0

22

Toro 37-6730

CUP-BEARING

$18.99

$

In Stock, only 1 left!

0

23

Toro 63-9700

Cover-Plate
(Superseded to 63-9700-03)

$21.99

$

In Stock, only 2 left!

0

24

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

25

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 10

0

26

Toro 78-0730

PULLEY-BLOWER R

$140.99

$

In Stock, only 1 left!

0

27

Toro 9202604

WASHER-FLAT

$8.99

$

Usually ships in 3-6 days

0

28

Toro 3218-12

NUT 5/8-11 L.H.

$7.49

$

Usually ships in 3-6 days

0

29

Toro 9266934

SCREW

$8.99

$

In Stock, Qty 7

0

30

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

31

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Toro 78-0750

ARM-IDLER-WELDED B

$

$

Not available

33

Toro 9202704

WASHER-FLAT

$1.49

$

In Stock, Qty 15

0

34

Toro 78-9120

SHIELD-PULLEY B

$

$

Not available

35

Toro 78-5450

SHIELD

$

$

Not available

36

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

37

Toro 302-26

FITTING-GREASE

$6.49

$

In Stock, only 1 left!

0

38

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

39

Toro 79-0010

BRACKET-ANGLE B

$

$

Not available

40

Toro 92-7084

PULLEY-IDLER, FLAT

$38.99

$

In Stock, only 2 left!

0

41

Toro 78-0720

PULLEY

$128.99

$

Usually ships in 3-6 days

0

42

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 16

0

43

Toro 78-9690

Bracket
(Superseded to 78-9690-03)

$53.99

$

Usually ships in 3-6 days

0

44

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

45

Toro 78-7830

STRAP B

$

$

Not available

Toro 93-1636

Blower Asm (Incl. Ref. #3 & 21)

Note: Not illustrated

$

$

Not available

46

Toro 63-9710

SPACER-BEARING

$12.99

$

In Stock, only 2 left!

0

Toro 93-1635

Belt Cover Asm (Incl. Ref. #3)

Note: Not illustrated

$134.99

$

Usually ships in 3-6 days

0

Toro 78-6530

DEFLECTOR-BLOWER B

Note: Not illustrated

$202.99

$

Usually ships in 3-6 days

0

Toro 79-6520

SPACER-RUBBER

Note: Not illustrated

$

$

Not available
