79432 - Toro 60" Vacuum Bagger for Z Master (SN: 079000001 - 079999999) (1997) BLOWER PULLEY AND IDLER ARM ASSEMBLY Parts Diagram

60" Vacuum Bagger for Z Master

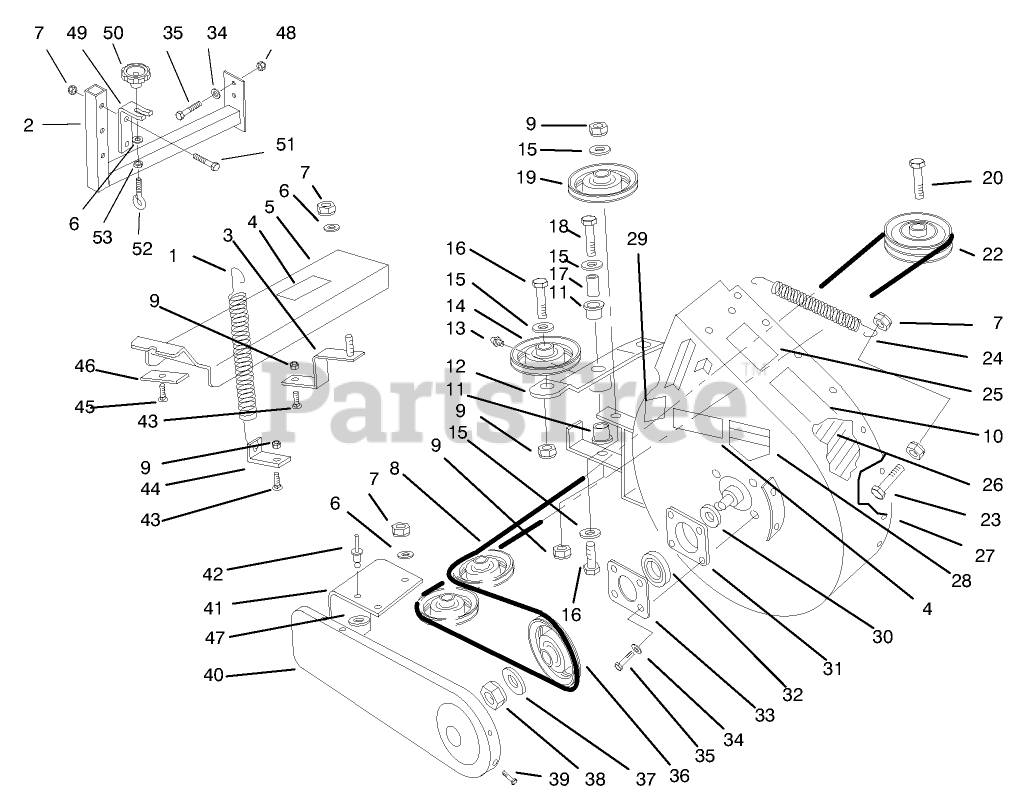

BLOWER PULLEY AND IDLER ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 79-0020

SPRING-EXTENSION

$

$

Not available

2

Toro 94-6291

WA - BRACKET

$

$

Not available

3

Toro 78-9690

Bracket
(Superseded to 78-9690-03)

$53.99

$

Usually ships in 3-6 days

0

4

Toro 79-0350

DECAL-DANGER

$

$

Not available

5

Toro 93-1635

ASM - BELT CVR W/DECAL B

$134.99

$

Usually ships in 3-6 days

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 108960

V-BELT

$61.99

$

Usually ships in 3-6 days

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 92-2511

DECAL - WARNING

$

$

Not available

11

Toro 109859

BUSHING

$15.99

$

Usually ships in 3-6 days

0

12

Toro 78-0750

ARM-IDLER-WELDED B

$

$

Not available

13

Toro 302-26

FITTING-GREASE

$6.49

$

In Stock, only 1 left!

0

14

Toro 92-7084

PULLEY-IDLER, FLAT

$38.99

$

In Stock, only 2 left!

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 114511

SPACER

$72.99

$

Usually ships in 3-6 days

0

18

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

19

Toro 92-7099

PULLEY-IDLER

$69.99

$

In Stock, only 1 left!

0

20

Toro 327-7

SCREW-HH

$13.99

$

In Stock, only 2 left!

0

22

Toro 78-0720

PULLEY

$128.99

$

Usually ships in 3-6 days

0

23

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 116172

SPRING - EXTENSION

$43.99

$

In Stock, only 1 left!

0

25

Toro 79-0360

DECAL-DANGER

$

$

Not available

26

Toro 79-1880

STRIP-WEAR

$

$

Not available

27

Toro 93-1636

ASM - BLOWER W/DECALS B

$

$

Not available

28

Toro 93-1122

DECAL-DANGER

$8.99

$

In Stock, Qty 16

0

30

Toro 63-9710

SPACER-BEARING

$12.99

$

In Stock, only 2 left!

0

31

Toro 37-6730

CUP-BEARING

$18.99

$

In Stock, only 1 left!

0

32

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

33

Toro 63-9700

Cover-Plate
(Superseded to 63-9700-03)

$21.99

$

In Stock, only 2 left!

0

34

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

35

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 10

0

36

Toro 78-0730

PULLEY-BLOWER R

$140.99

$

In Stock, only 1 left!

0

37

Toro 9202604

WASHER-FLAT

$8.99

$

Usually ships in 3-6 days

0

38

Toro 3218-12

NUT 5/8-11 L.H.

$7.49

$

Usually ships in 3-6 days

0

39

Toro 9266934

SCREW

$8.99

$

In Stock, Qty 7

0

40

Toro 78-9120

SHIELD-PULLEY B

$

$

Not available

41

Toro 78-5450

SHIELD

$

$

Not available

42

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

43

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 16

0

44

Toro 79-0010

BRACKET-ANGLE B

$

$

Not available

45

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

46

Toro 78-7830

STRAP B

$

$

Not available

47

Toro 9202704

WASHER-FLAT

$1.49

$

In Stock, Qty 15

0

48

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

29

Toro 44-3216

Decal

$

$

Currently unavailable

49

Toro 94-6293

PLATE - SUPPORT

$

$

Not available

50

Toro 19-4050

KNOB

$17.99

$

In Stock, Qty 9

0

51

Toro 322-41

SCREW-HH
(Superseded to 323-4)

$3.99

$

In Stock, Qty 19

0

52

Toro 55-9420

BOLT-EYE

$11.99

$

In Stock, only 2 left!

0

53

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0
