79434 - Toro 48" Grass Collection System (SN: 089001637 - 089999999) (1998) PLENUM AND DISCHARGE BRACKET Parts Diagram

48" Grass Collection System

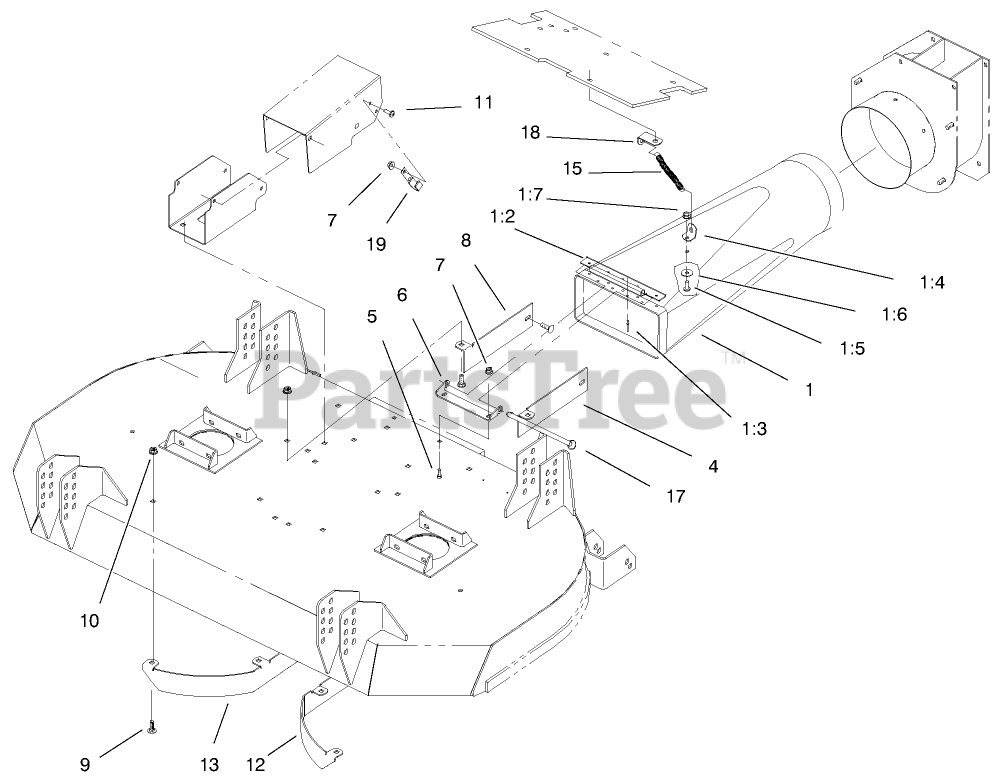

PLENUM AND DISCHARGE BRACKET Parts Diagram

  • Title

1

Toro 99-0266

ASM - PLENUM

$

$

Not available

1:2

Toro 99-0255

BRACKET - PLENUM

$

$

Not available

1:3

Toro 3269-25

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

1:4

Toro 98-3035

BRACKET-SPRING

$

$

Not available

1:5

Toro 3250-32

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

1:6

Toro 3256-58

WASHER-FLAT
(Superseded to 3256-55)

$5.49

$

In Stock, only 2 left!

0

1:7

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, Qty 8

0

4

Toro 98-3002

Bracket-Discharge
(Superseded to 98-3002-01)

$30.99

$

Usually ships in 3-6 days

0

5

Toro 3229-25

SCREW-CARR
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 11

0

6

Toro 99-0252

BRACKET - HINGE

$

$

Not available

7

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, Qty 8

0

8

Toro 98-3003

Bracket-Discharge
(Superseded to 98-3003-01)

$

$

Not available

9

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

10

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

11

Toro 3250-32

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

12

Toro 98-3015

Baffle-LH
(Superseded to 98-3015-01)

$

$

Not available

13

Toro 98-3016

Baffle-RH
(Superseded to 98-3016-01)

$

$

Not available

15

Toro 98-4399

SPRING - EXTENSION

$14.99

$

Usually ships in 3-6 days

0

17

Toro 99-0261

PIN - LOCKING

$

$

Not available

18

Toro 98-4398

BRACKET - SPRING

$

$

Not available

19

Toro 99-0270

CLIP - CABLE

$

$

Not available
