79480 - Toro 42"/48" Vacuum Bagger for XT Series Tractors (SN: 240000001 - 240999999) (2004) DRIVE ASSEMBLY Parts Diagram

42"/48" Vacuum Bagger for XT Series Tractors

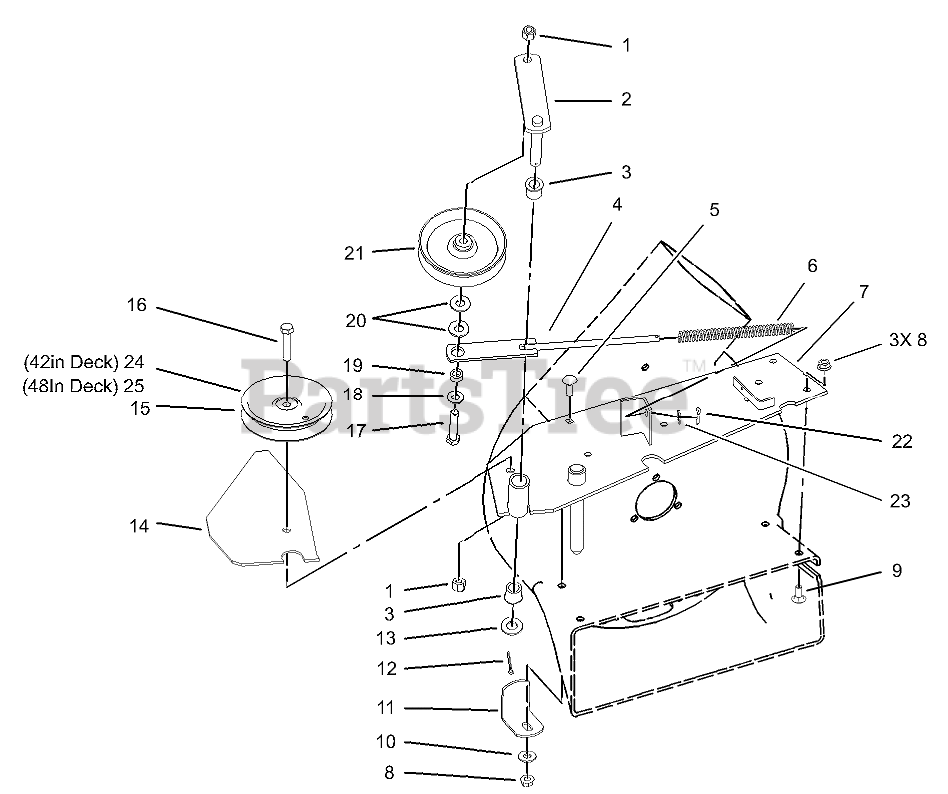

DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

2

Toro 79-1970

IDLER ARM ASM

$

$

Not available

3

Toro 100284

BUSHING

$

$

Not available

4

Toro 79-2020

SPRING-ROD

$67.99

$

Usually ships in 3-6 days

0

5

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

6

Toro 79-7110

SPRING-COMPRESSION

$14.99

$

Usually ships in 3-6 days

0

7

Toro 79-1380-03

Blower Mounting ASM

$271.99

$

Usually ships in 3-6 days

0

8

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

10

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 79-7440

BRACKET-SUPPORT, HOUSING

$

$

Not available

12

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 12

0

13

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 79-7280-03

SUPPORT-SHIELD, BELT

$

$

Not available

15

Toro 93-1622

PULLEY-IDLER

$44.99

$

In Stock, Qty 19

0

16

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 107213

SPACER

$11.99

$

In Stock, only 1 left!

0

20

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

21

Toro 92-7099

PULLEY-IDLER

$72.99

$

In Stock, only 1 left!

0

22

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

23

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

24

Toro 79-7480

V-BELT

$106.99

$

In Stock, only 1 left!

0

25

Toro 79-7490

V-BELT

$107.99

$

Usually ships in 3-6 days

0
