79482 - Toro 44" Two-Stage Snow Thrower for XT Series Tractors (SN: 260000001 - 260999999) (2006) AUGER HOUSING AND CHUTE ASSEMBLY Parts Diagram

44" Two-Stage Snow Thrower for XT Series Tractors

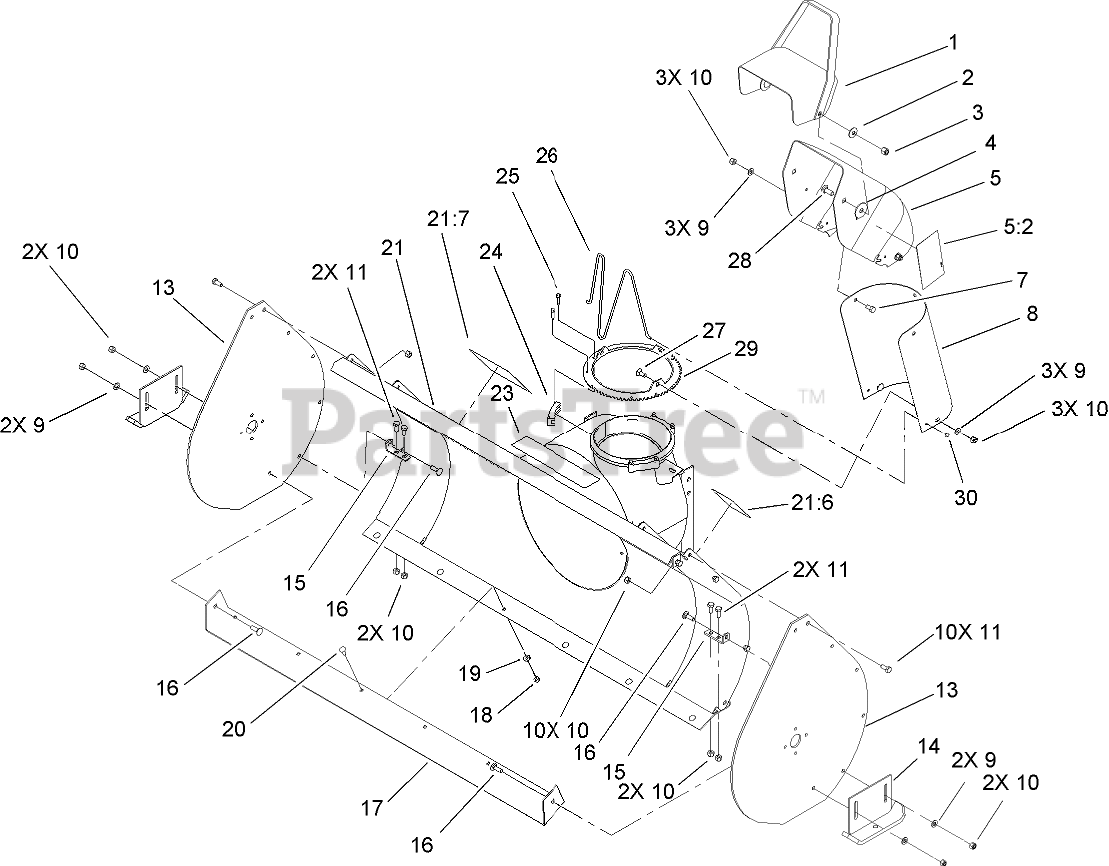

AUGER HOUSING AND CHUTE ASSEMBLY Parts Diagram

  • Title

1

Toro 11-7120-01

DEFLECTOR

$131.99

$

Usually ships in 3-6 days

0

2

Toro 3290-340

WASHER-BELLEVILLE

$8.99

$

In Stock, Qty 6

0

3

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 5

0

5

Toro 94-1832

CHUTE

$

$

Not available

5:2

Toro 94-8079

DECAL-DANGER (only on: 38078)

$12.99

$

Usually ships in 3-6 days

0

7

Toro 322-2

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

8

Toro 26-1110-01

EXTENDER-CHUTE, UPPER

$189.99

$

Usually ships in 3-6 days

0

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 57-3510-01

PLATE-SIDE

$

$

Not available

14

Toro 78-0800-01

SUPPORT-SKID

$90.99

$

Usually ships in 3-6 days

0

15

Toro 99-2304-01

BRACKET-SUPPORT, BLADE

$23.99

$

Usually ships in 3-6 days

0

16

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, only 1 left!

0

17

Toro 99-2303-01

BLADE-SCRAPER

$197.99

$

Usually ships in 3-6 days

0

18

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

19

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 17

0

20

Toro 3229-25

SCREW-CARR
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 11

0

21

Toro 92-6334

AUGER HSG/DECAL ASM

$

$

Not available

21:6

Toro 63-2380

DECAL-DANGER

$

$

Not available

21:7

Toro 92-8652

DECAL-WARNING

$

$

Not available

23

Toro 106-5838

DECAL-WORKHORSE

$

$

Not available

24

Toro 25-5450

RETAINER-CHUTE

$41.99

$

In Stock, only 2 left!

0

25

Toro 27-0220

SCREW-SPECIAL

$8.49

$

In Stock, only 4 left!

0

26

Toro 12-2040

WIRE-CHUTE

$

$

Not available

27

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

28

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

29

Toro 25-5290-01

RING-SWIVEL, CHUTE

$75.99

$

Usually ships in 3-6 days

0

30

Toro 3290-326

NUT-PUSH

$5.49

$

Usually ships in 3-6 days

0
