79483 - Toro 42" Single-Stage Snow Thrower for XT Series Tractors (SN: 260000001 - 260999999) (2006) PULLEY AND HITCH SYSTEM ASSEMBLY Parts Diagram

42" Single-Stage Snow Thrower for XT Series Tractors

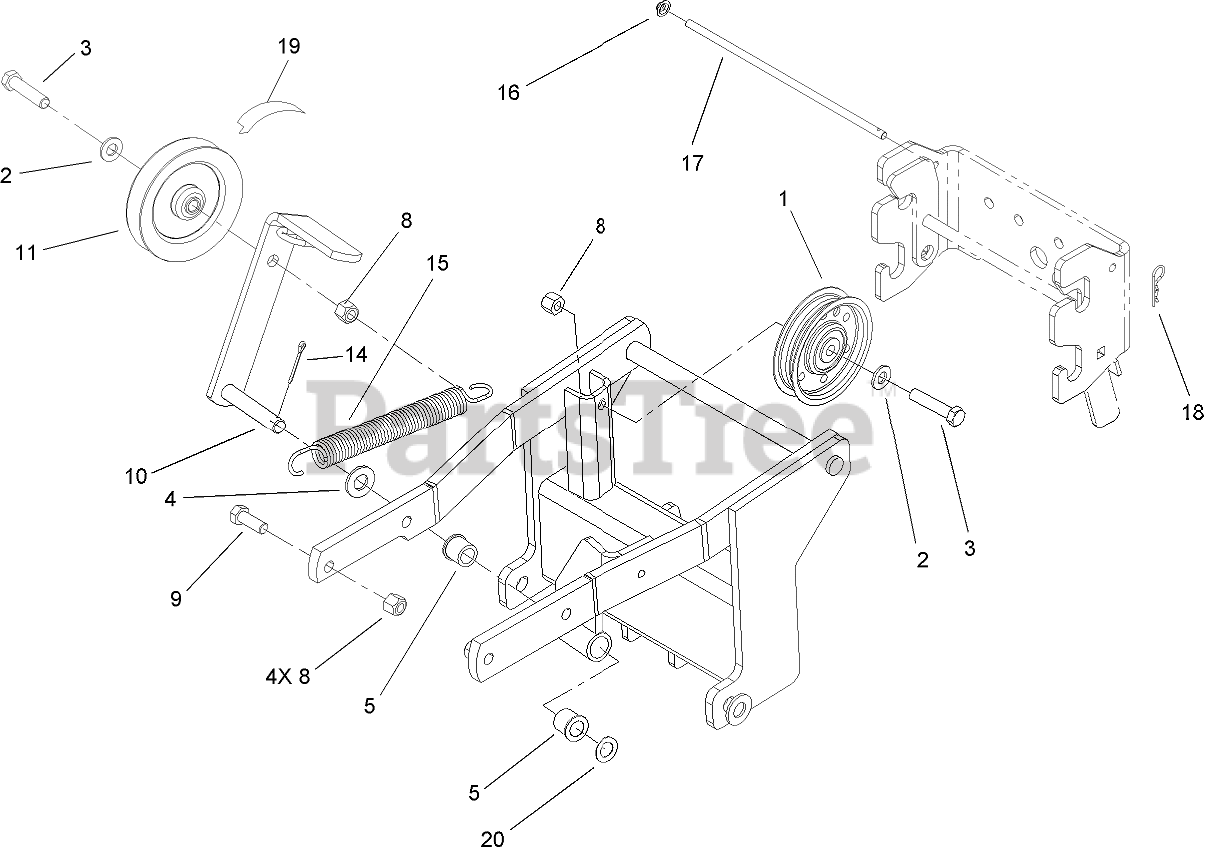

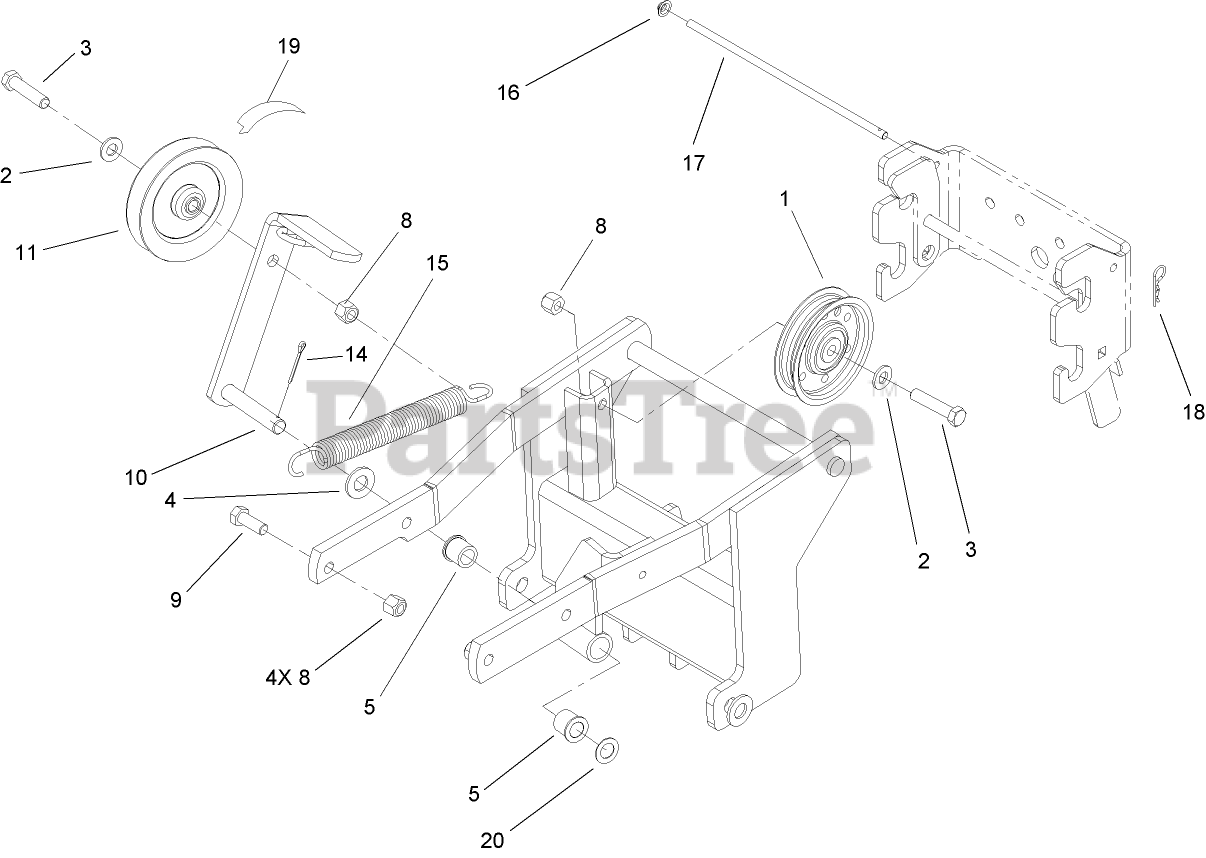

PULLEY AND HITCH SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 106-2175

PULLEY-IDLER, FLAT
(Superseded to 132-9420)

$36.99

$

In Stock, only 4 left!

0

2

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 100284

BUSHING

$

$

Not available

8

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

9

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

10

Toro 106-5687-03

IDLER ARM ASM

$

$

Not available

11

Toro 95-7668

PULLEY-V, IDLER

$27.99

$

In Stock, only 4 left!

0

14

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 12

0

15

Toro 80-6610

SPRING-EXTENSION

$28.99

$

In Stock, only 2 left!

0

16

Toro 3290-337

NUT-SPEED

$1.49

$

In Stock, Qty 20+

0

17

Toro 106-9922

ROD-STOP

$

$

Not available

18

Toro 9335044

PIN-HAIR

$1.49

$

In Stock, Qty 5

0

19

Toro 54-1380

V-BELT, JACKSHAFT

$39.99

$

Usually ships in 3-6 days

0

20

Toro 98-1629

WASHER

$1.49

$

Usually ships in 3-6 days

0
