79489 - Toro Slope Sensor Kit for Mower Slope Sensor Kit Assembly Parts Diagram

Slope Sensor Kit for Mower

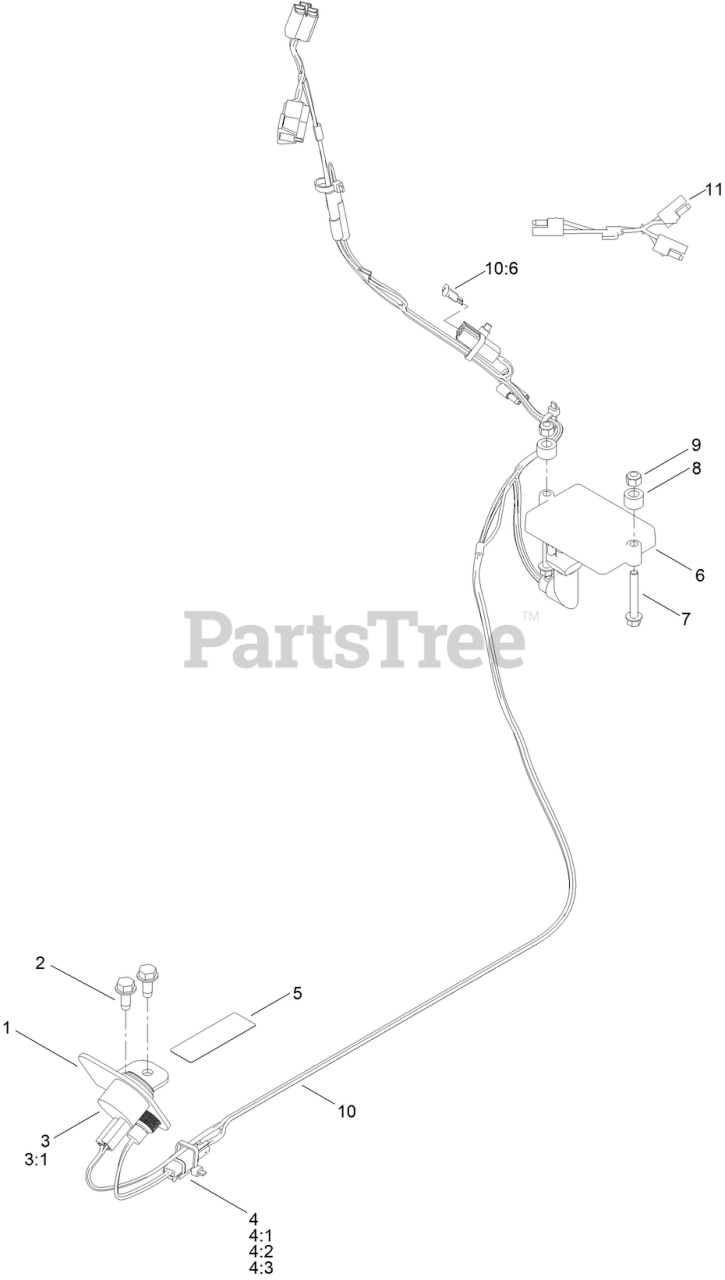

Slope Sensor Kit Assembly Parts Diagram

  • Title

1

Toro 147-8760-03

BRACKET-LIGHT

$

$

Currently unavailable

2

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 15

0

3

Toro 80-9330

AUDIO ALARM ASM

$156.99

$

Usually ships in 3-6 days

0

3:1

Toro 104-5107

NUT-PLASTIC, KNURLED

$6.49

$

Usually ships in 3-6 days

0

4

Toro 122-0630

RED LED INDICATOR LAMP ASM

$109.99

$

Usually ships in 3-6 days

0

4:1

Toro 122-0634

GASKET-LED

$2.99

$

Usually ships in 3-6 days

0

4:2

Toro 122-0633

WASHER-LOCKING

$1.49

$

Usually ships in 3-6 days

0

4:3

Toro 122-0632

NUT-FIXING

$6.99

$

Usually ships in 3-6 days

0

5

Toro 140-2710

DECAL-SLOPE SENSOR

$12.99

$

Usually ships in 3-6 days

0

6

Toro 122-1266

CONTROLLER (FASM-TSM-0802)

$359.99

$

Usually ships in 3-6 days

0

7

Toro 138-5527

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

8

Toro 98-4695

SPACER

$8.49

$

Usually ships in 3-6 days

0

9

Toro 137-3088

NUT-HEX

$1.49

$

In Stock, Qty 11

0

10

Toro 147-7723

HARNESS-WIRE, SLOPE SNSR

$327.99

$

Usually ships in 3-6 days

0

10:6

Toro 94-6710

FUSE-2 AMP

$6.49

$

Usually ships in 3-6 days

0

11

Toro 116-2305

HARNESS,ACCESSORY ADD-ON

$

$

Currently unavailable
