7T84JH - Cub Cadet 382cc Engine 7T84JH General Assembly Parts Diagram

382cc Engine

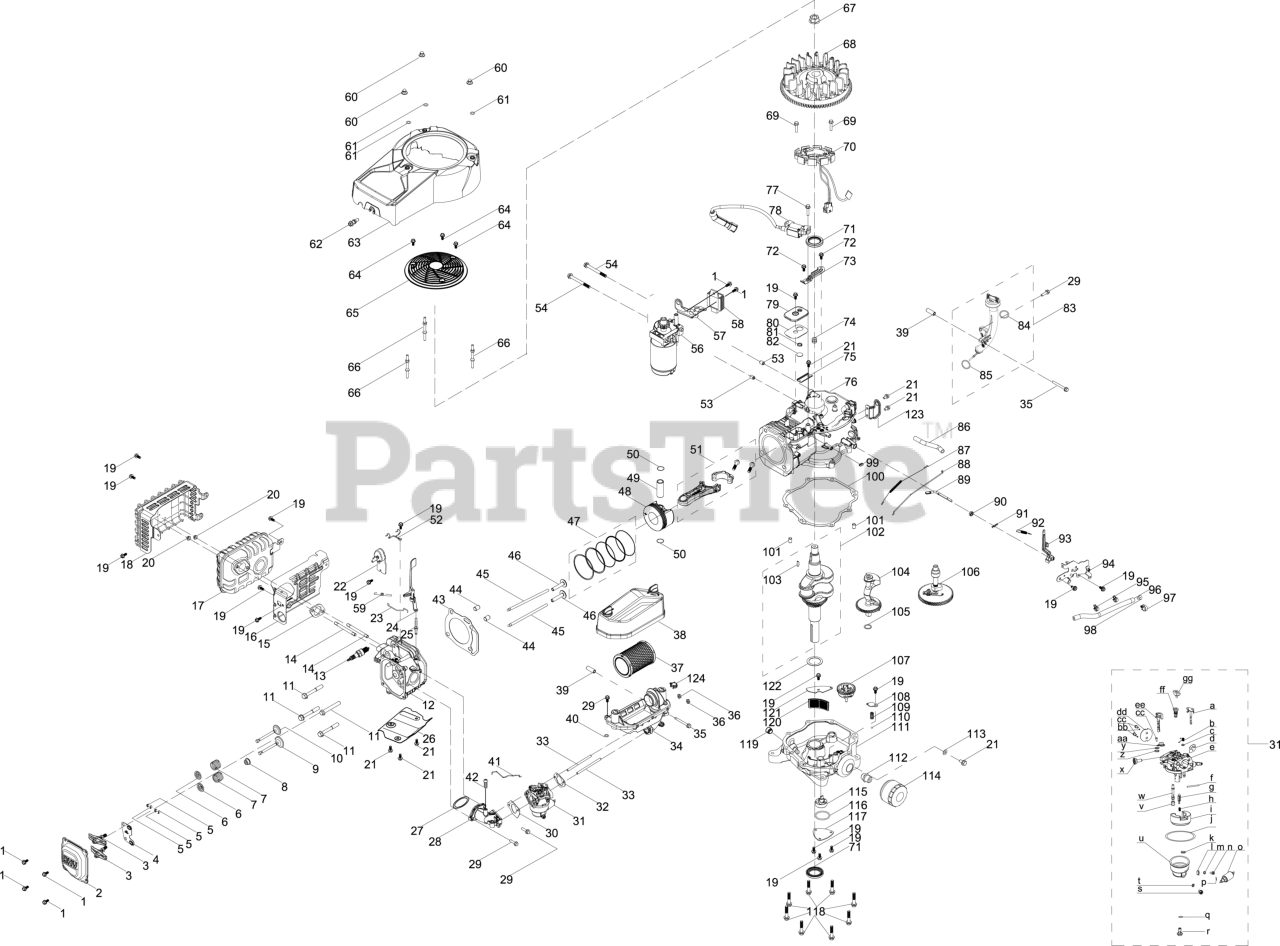

7T84JH General Assembly Parts Diagram

  • Title

1

Cub Cadet 710-04968

BOLT M6 x 16

$6.49

$

In Stock, only 3 left!

0

2

Cub Cadet 951-15654

VALVE COVER

$13.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 951-15655

ROCKER ARM ASSEMBLY

$11.99

$

In Stock, only 1 left!

0

4

Cub Cadet 951-15656

ROCKER ARM BASE

$5.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 951-14912

VALVE CAP
(Superseded to 951-14912A)

$3.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 951-14911

VALVE SPRING SEAT

$5.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 951-12078

VALVE SPRING

$3.99

$

In Stock, only 3 left!

0

8

Cub Cadet 951-11964

INTAKE VALVE SEAL
(Superseded to 951-11964A)

$10.99

$

In Stock, Qty 7

0

9

Cub Cadet 951-15923

INTAKE VALVE

$14.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 951-15924

EXHAUST VALVE

$25.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-06291

BOLT M10-1.25 x 70

$4.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 951-15657

CYLINDER HEAD

$111.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 951-10292A

SPARK PLUG (F6RTC/RN11YC/BPR6ES)

$6.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-06615

STUD - M8 x 102

$5.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 951-15658

EXHAUST GASKET

$7.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 951-15659

ENGINE SHROUD

$19.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 951-15660

MUFFLER

$83.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 951-15661

MUFFLER GUARD

$29.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-04916

BOLT M6-1 x 14 GR8.8

$4.49

$

In Stock, only 2 left!

0

20

Cub Cadet 751-15427

NUT M8

$3.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-04915

BOLT M6-1 x 12 GR8.8

$4.49

$

In Stock, Qty 8

0

22

Cub Cadet 951-15707

THERMAL SWITCH

$29.99

$

In Stock, only 1 left!

0

23

Cub Cadet 951-15708

THERMAL LEVER

$5.49

$

In Stock, only 1 left!

0

24

Cub Cadet 951-15709

AIRVANE CHOKE

$9.49

$

In Stock, Qty 9

0

25

Cub Cadet 951-14734

PIVOT VANE STUD

$5.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 951-15710

ENGINE SHROUD

$7.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 951-15711

O-RING 36 x 2.5

$5.49

$

In Stock, only 1 left!

0

28

Cub Cadet 951-15712

INTAKE MANIFOLD
(Superseded to 951-15712A)

$13.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 710-06292

BOLT M6 x 22

$4.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 951-14947

INTAKE GASKET

$7.99

$

In Stock, Qty 13

0

31

Cub Cadet 951-05545

CARBURETOR ASSEMBLY HY-7T84JU

Note: 1

$181.99

$

In Stock, Qty 5

0

32

Cub Cadet 921-04745

AIR FLTER GASKET

$6.99

$

In Stock, Qty 14

0

33

Cub Cadet 710-06319

STUD M6-1.00 x 92

$5.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 951-15713

AIR FILTER BASE ASSEMBLY

$24.99

$

In Stock, only 1 left!

0

35

Cub Cadet 710-05234

SCREW M6-1:50:CL5.

$5.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 712-05015

HEX NUT

$6.49

$

In Stock, only 2 left!

0

37

Cub Cadet 937-05129

AIR FILTER W/PREFILTER
(Superseded to 937-05129A)

$23.99

$

In Stock, Qty 14

0

38

Cub Cadet 951-05557

AIR FILTER COVER ASSEMBLY

$20.99

$

In Stock, only 1 left!

0

39

Cub Cadet 951-15714

BUSHING - 11X6X30

$4.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 721-04974

CARB FUEL DRAIN GASKET

$0.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 951-15715

CHOKE LEVER

$4.49

$

In Stock, only 1 left!

0

42

Cub Cadet 710-06447

SELF TAPPING SCREW 4.8 x 16

$4.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 951-15716

CYLINDER HEAD GASKET

$13.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 715-04122

DOWEL PIN

$3.99

$

In Stock, only 2 left!

0

45

Cub Cadet 951-15717

PUSH ROD - INDIVIDUAL

$7.49

$

In Stock, only 3 left!

0

46

Cub Cadet 951-11962

TAPPET

$7.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 951-05548

PISTON RING SET

$27.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 951-15718

PISTON

$55.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 911-06415

PISTON PIN

$9.49

$

Usually ships in 3-6 days

0

50

Cub Cadet 951-11953

PISTON PIN SNAP RING
(Superseded to 951-11953A)

$3.99

$

In Stock, Qty 11

0

51

Cub Cadet 951-15775

CONNECTING ROD ASSEMBLY

$37.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 951-15720

WIRE ROD

$4.49

$

Usually ships in 3-6 days

0

53

Cub Cadet 915-05026

DOWEL PIN

$4.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 710-06286

BOLT M8-1.25 x 80

$4.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 951-05549

ELECTRIC STARTER ASSEMBLY
(Superseded to 951-05549A)

$353.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 951-15721

HOOK

$5.49

$

Usually ships in 3-6 days

0

58

Cub Cadet 925-06299

REGULATOR

$37.99

$

In Stock, only 1 left!

0

59

Cub Cadet 951-16206

IDLE SPRING

$5.49

$

In Stock, only 1 left!

0

60

Cub Cadet 712-04276

ACORN NUT
(Superseded to 712-04276A)

$5.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 736-05109

WASHER

$5.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 710-05305

HOOK BOLT

$3.99

$

In Stock, only 2 left!

0

63

Cub Cadet 951-15724

ENGINE BLOWER HOUSING

$31.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 710-06449

BOLT M5 x 18

$3.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 951-15722

ENGINE SHROUD

$10.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 710-06628

STUD - M6 x 83

$5.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 912-05102

NUT M20 x 1.5

$7.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 951-15725

FLYWHEEL ASSEMBLY

$232.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 710-06448

BOLT M5 x 28

$3.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 951-15726

ALTERNATOR

$91.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 937-05134

OIL SEAL - 35X52X7

$7.49

$

In Stock, only 1 left!

0

72

Cub Cadet 710-06290

BOLT M5-.8 x 10

$4.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 951-15727

WIRE PLATE

$4.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 750-05314

BUSHING

$3.99

$

In Stock, only 1 left!

0

75

Cub Cadet 951-14922

BREATHER SCREEN

$4.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 951-15728

CRANKCASE

$316.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 710-04943

BOLT-M6-1 x 28 GR8.8

$3.99

$

In Stock, only 2 left!

0

78

Cub Cadet 994-00136

IGNITION COIL
(Superseded to 994-00136A)

$72.99

$

In Stock, Qty 7

0

79

Cub Cadet 951-15729

BREATHER COVER

$9.49

$

Usually ships in 3-6 days

0

80

Cub Cadet 951-15730

BREATHER COVER GASKET

$7.49

$

Usually ships in 3-6 days

0

81

Cub Cadet 732-04718

BREATHER VALVE SPRING

$4.49

$

Usually ships in 3-6 days

0

82

Cub Cadet 951-11614

BREATHER VALVE

$3.99

$

Usually ships in 3-6 days

0

83

Cub Cadet 951-15731

DIPSTICK ASSEMBLY
(Superseded to 951-15731A)

$18.99

$

In Stock, only 1 left!

0

84

Cub Cadet 921-04739

O-RING

$4.99

$

In Stock, only 1 left!

0

85

Cub Cadet 921-04946

O-RING

$3.99

$

Usually ships in 3-6 days

0

86

Cub Cadet 951-15732

BREATHER HOSE

$16.99

$

Usually ships in 3-6 days

0

87

Cub Cadet 951-15733

THROTTLE DAMPENING SPRING

$4.49

$

In Stock, Qty 6

0

88

Cub Cadet 951-15734

THROTTLE LINKAGE

$6.49

$

In Stock, Qty 10

0

89

Cub Cadet 951-15735

GOVERNOR GEAR SHAFT

$5.49

$

In Stock, only 1 left!

0

90

Cub Cadet 951-11902

GOVERNOR SEAL

$4.49

$

In Stock, only 1 left!

0

91

Cub Cadet 714-04078

COTTER PIN

$3.99

$

Usually ships in 3-6 days

0

92

Cub Cadet 951-15738

GOVERNOR SPRING

$9.49

$

In Stock, only 4 left!

0

93

Cub Cadet 951-15739

GOVERNOR ARM ASSEMBLY

$6.99

$

Usually ships in 3-6 days

0

94

Cub Cadet 951-15740

CONTROL BRACKET ASSEMBLY

$13.99

$

Usually ships in 3-6 days

0

95

Cub Cadet 951-11700

HOSE CLAMP
(Superseded to 951-11700A)

$3.99

$

In Stock, only 3 left!

0

96

Cub Cadet 993-00171

FUEL HOSE 6.3 x 12.5 x 250

$8.99

$

Usually ships in 3-6 days

0

97

Cub Cadet 723-04071

FUEL LINE SUPPORT CLAMP
(Superseded to 723-04071A)

$2.99

$

Usually ships in 3-6 days

0

98

Cub Cadet 951-14091

PLUG

$4.49

$

Usually ships in 3-6 days

0

99

Cub Cadet 951-15741

CLIP

$3.99

$

Usually ships in 3-6 days

0

100

Cub Cadet 951-15742

CRANKCASE GASKET

$16.99

$

In Stock, only 3 left!

0

101

Cub Cadet 715-04096A

DOWEL PIN 9 X 14

$3.99

$

Usually ships in 3-6 days

0

102

Cub Cadet 951-15743

CRANKSHAFT ASSEMBLY

$242.99

$

Usually ships in 3-6 days

0

103

Cub Cadet 751P10307A

WOODRUFF KEY

$2.49

$

In Stock, Qty 11

0

104

Cub Cadet 951-15744

BALANCE SHAFT ASSEMBLY

$60.99

$

Usually ships in 3-6 days

0

105

Cub Cadet 936-05112

WASHER 17.2 x 26 x 1

$4.99

$

In Stock, only 2 left!

0

106

Cub Cadet 951-15745

CAMSHAFT ASSEMBLY

$53.99

$

Usually ships in 3-6 days

0

107

Cub Cadet 951-15746

GOVERNOR GEAR

$18.99

$

In Stock, only 1 left!

0

108

Cub Cadet 951-14895

PRESSURE RELEASE COVER

$4.99

$

Usually ships in 3-6 days

0

109

Cub Cadet 932-05290

PRESSURE RELEASE SPRING

$4.99

$

Usually ships in 3-6 days

0

110

Cub Cadet 951-15588

OIL PUMP STEEL BALL

$3.99

$

Usually ships in 3-6 days

0

111

Cub Cadet 951-15747

CRANKCASE COVER

$167.99

$

Usually ships in 3-6 days

0

112

Cub Cadet 951-12253

SCREW JOINT OIL FILTER ADAPTER

$7.49

$

Usually ships in 3-6 days

0

113

Cub Cadet 951-15748

WASHER - 6.2X1.5X13

$3.49

$

Usually ships in 3-6 days

0

114

Cub Cadet 951-12690

ENGINE OIL FILTER

$17.99

$

In Stock, Qty 20+

0

115

Cub Cadet 951-05247

OIL PUMP ASSEMBLY

$54.99

$

Usually ships in 3-6 days

0

116

Cub Cadet 921-04742

GASKET

$6.99

$

In Stock, only 1 left!

0

117

Cub Cadet 951-14896

OIL SEPARATOR

$4.99

$

Usually ships in 3-6 days

0

118

Cub Cadet 710-05306

BOLT M8 x 40

$3.99

$

In Stock, Qty 5

0

119

Cub Cadet 951-11644

ENGINE PLUG 3/8 NPT

$9.49

$

In Stock, Qty 6

0

120

Cub Cadet 937-05069

FILTER SCREEN

$4.99

$

Usually ships in 3-6 days

0

121

Cub Cadet 951-15749

OIL SCREEN PLATE

$4.99

$

Usually ships in 3-6 days

0

122

Cub Cadet 951-15750

WASHER - 35.4X1X52

$3.99

$

Usually ships in 3-6 days

0

123

Cub Cadet 751P17972

LIFT HOOK

$2.49

$

Usually ships in 3-6 days

0

124

Cub Cadet 751P17987

CLIP

$0.99

$

Usually ships in 3-6 days

0

a

Cub Cadet 951-16207

CHOKE SHAFT

$8.49

$

Usually ships in 3-6 days

0

b

Cub Cadet 951-16208

CHOKE RETURN SPRING

$7.49

$

Usually ships in 3-6 days

0

c

Flat Steel Washer

$

$

Not available

d

Choke Plate

$

$

Not available

e

Carburetor Body

$

$

Not available

f

Cub Cadet 711-06036

HINGE FLOAT PIN

$0.99

$

Usually ships in 3-6 days

0

g

Cub Cadet 751P14036A

NEEDLE VALVE

$5.49

$

Usually ships in 3-6 days

0

h

Cub Cadet 732P05251

NEEDLE VALVE SPRING

$0.99

$

In Stock, Qty 10

0

i

Float

$

$

Not available

j

Cub Cadet 951-11970

FUEL BOWL GASKET

$6.49

$

In Stock, Qty 9

0

k

Square-Ring

$

$

Not available

l

Idle Mixture Screw

$

$

Not available

m

Cub Cadet 736-04629

WASHER

$3.99

$

Usually ships in 3-6 days

0

n

Screw, M5x8

$

$

Not available

o

Cub Cadet 951-14972

CARBURETOR SOLENOID VALVE ASM

Note: 1

$42.99

$

In Stock, only 3 left!

0

p

Solenoid Valve Washer

$

$

Not available

q

Cub Cadet 951-12772

SEAT/FUEL BOWL BOLT O-RING

$3.99

$

Usually ships in 3-6 days

0

r

Fuel Bowl Bolt

$

$

Not available

s

Cub Cadet 910-06752

DRAIN BOLT

$4.99

$

Usually ships in 3-6 days

0

t

Cub Cadet 951-11349

FUEL DRAIN PLUG GASKET
(Superseded to 951-11349A)

$3.99

$

In Stock, Qty 16

0

u

Cub Cadet 751P16210

FUEL BOWL

$6.49

$

Usually ships in 3-6 days

0

v

Main Jet

$

$

Not available

w

Emulsion Tube

$

$

Not available

x

Cub Cadet 710P06038A

SPEED IDLE SCREW

$2.99

$

Usually ships in 3-6 days

0

y

Cub Cadet 736P05037

FIBER WASHER

$0.99

$

Usually ships in 3-6 days

0

z

Nylon/Plastic O-Ring

$

$

Not available

aa

Sheetmetal Housing

$

$

Not available

bb

Cub Cadet 736-04638

CHOKE CONTROL LEVER WASHER
(Superseded to 736-04638A)

$3.49

$

In Stock, only 1 left!

0

cc

Screw, M3x5

$

$

Not available

dd

Throttle Plate

$

$

Not available

ee

Throttle Shaft

$

$

Not available

ff

Idle Jet Assembly

$

$

Not available

gg

Idle Jet Rivet

$

$

Not available

Cub Cadet 752Z7T84JH

COMPLETE ENGINE 382cc

$

$

Currently unavailable
