7X70JU - Troy-Bilt 196cc Engine 7X70JU General Assembly Parts Diagram

196cc Engine

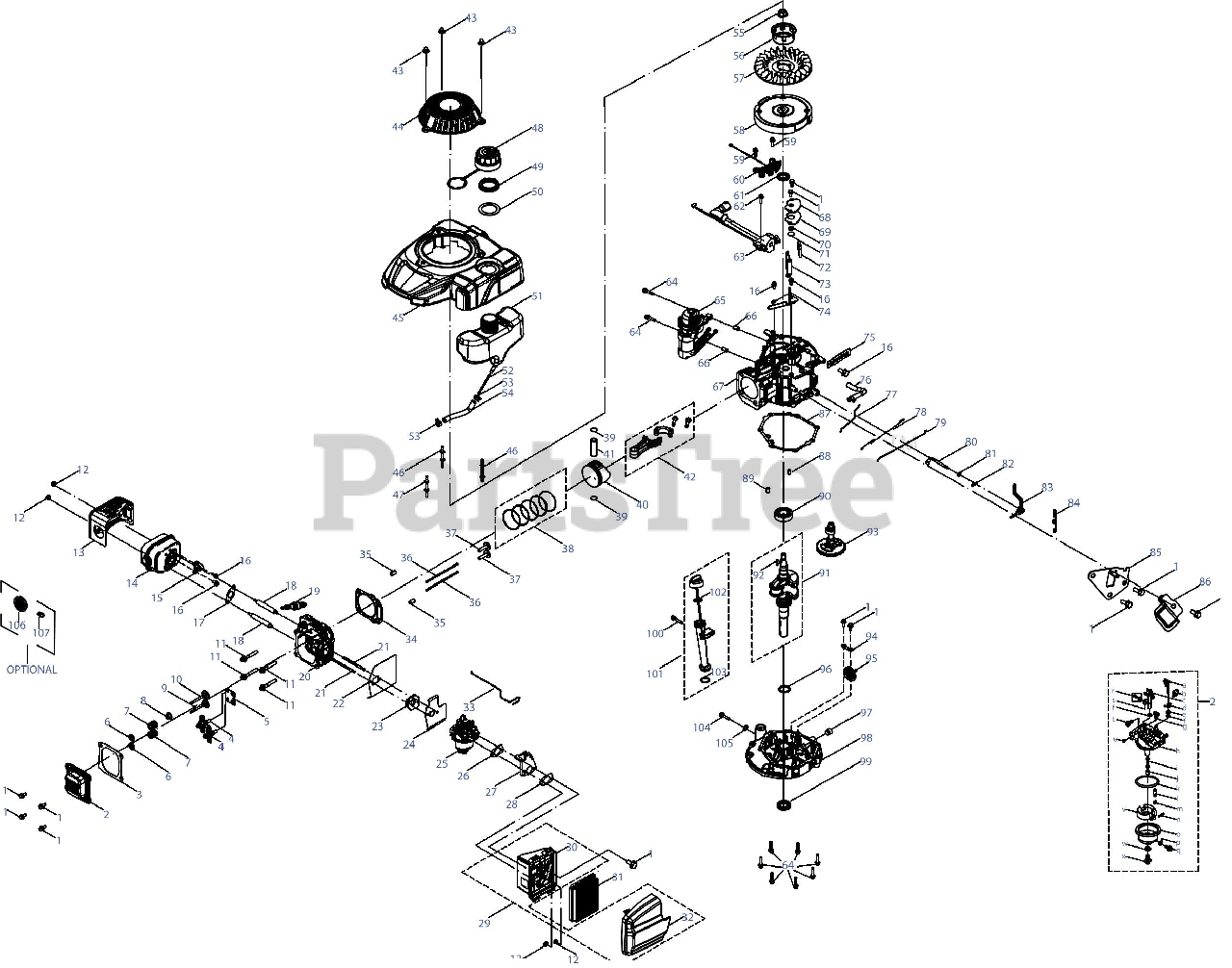

7X70JU General Assembly Parts Diagram

  • Title

1

Troy-Bilt 710-04916

Bolt M6x14

$4.49

$

In Stock, only 2 left!

0

2

Troy-Bilt 951-14609

Valve Cover

$15.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 951-11551

Valve Cover Gasket

$9.99

$

In Stock, Qty 11

0

4

Troy-Bilt 951-11606

Rocker Arm Assembly

$37.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 951-11629

Push Rod Guide

$7.49

$

In Stock, only 3 left!

0

6

Troy-Bilt 951-12000

Valve Spring Retainer

$3.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 951-12116

Valve Spring

$3.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 921-04237

Intake Valve Seal
(Superseded to 921-04237A)

$7.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 951-15669

Exhaust Valve

$7.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 951-14099

Intake Valve
(Superseded to 751P14099A)

$3.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 710-06200

Bolt M8x54 Cylinder Head

$5.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 712-05015

Nut M6X10

$6.49

$

Usually ships in 3-6 days

0

13

Troy-Bilt 951-15566

Muffler Shield

$25.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 951-14429

Muffler Assembly

$63.99

$

In Stock, only 2 left!

0

15

Troy-Bilt 951-14428

Choke Thermal Control
(Superseded to 951-14428A)

$38.99

$

In Stock, only 4 left!

0

16

Troy-Bilt 710-04915

Bolt M6x12

$4.49

$

In Stock, Qty 10

0

17

Troy-Bilt 951-14427

Muffler Gasket
(Superseded to 951-14427A)

$6.99

$

In Stock, Qty 6

0

18

Troy-Bilt 710-05094

Muffler Stud M6x95

$4.49

$

In Stock, Qty 10

0

19

Troy-Bilt 951-14437

Spark Plug/F5RTC

$7.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 951-15670

Cylinder Head

$110.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 951-14425

Carb Stud M6x87

$6.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 921-04947

Carburetor Insulator Gasket

$6.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 951-15671

Carburetor Insulator
(Superseded to 951-15671A)

$7.49

$

Usually ships in 3-6 days

0

24

Troy-Bilt 921-04942

Carburetor Gasket

$6.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 951-05538

Carburetor Assembly

$83.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 951-14422

Air Filter Bracket Gasket

$7.49

$

In Stock, Qty 6

0

27

Troy-Bilt 908-05265

Air Filter Bracket

$8.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 951-14419

Air Filter Base Gasket
(Superseded to 951-14419A)

$7.99

$

In Stock, Qty 18

0

29

Troy-Bilt 931-05566

Air Filter Assembly

$22.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 931-13118

Air Filter Base

$14.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 951-15245

Air Filter Element, Paper

$14.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 931-13119

Air Filter Cover
(Superseded to 931-13119A)

$11.99

$

In Stock, only 2 left!

0

33

Troy-Bilt 951-15672

Temp Control Linkage

$6.49

$

Usually ships in 3-6 days

0

34

Troy-Bilt 951-15673

Cylinder Head Gasket

$10.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 715-04108

Cylinder Head Dowel Pin 10x16

$3.99

$

In Stock, only 3 left!

0

36

Troy-Bilt 951-15674

Push Rod

$5.49

$

Usually ships in 3-6 days

0

37

Troy-Bilt 951-14432

Tappet

$9.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 951-14317

Piston Ring Set

$30.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 951-11632

Piston Pin Snap Ring

$3.99

$

In Stock, only 3 left!

0

40

Troy-Bilt 951-15675

Piston

$34.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 951-11633

Piston Pin

$7.49

$

Usually ships in 3-6 days

0

42

Troy-Bilt 951-05539

Connecting Rod Assembly

$25.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 712-04276

Starter Acorn Nut
(Superseded to 712-04276A)

$5.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 931-13151

Starter Cover Housing

$18.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 631-05657

ENGINE SHROUD ASSEMBLY
(Superseded to 931-05657)

$30.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 951-14397

Shroud Stud M6x78.5

$9.49

$

In Stock, only 1 left!

0

47

Troy-Bilt 951-14398

Shroud Stud M6x74

$9.49

$

In Stock, only 3 left!

0

48

Troy-Bilt 951-15255

Fuel Cap Assembly
(Superseded to 951-15255A)

$24.99

$

In Stock, only 3 left!

0

49

Troy-Bilt 931-10290

Fuel Tank Nut

$5.99

$

Usually ships in 3-6 days

0

50

Troy-Bilt 951-14406

Fuel Tank Upper Grommet

$11.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 931-12771

Fuel Tank
(Superseded to 931-12771A)

$46.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 951-12296

Fuel Filter
(Superseded to 951-12296A)

$9.49

$

In Stock, Qty 20+

0

53

Troy-Bilt 951-11700

Fuel Hose Clamp
(Superseded to 951-11700A)

$3.99

$

In Stock, only 3 left!

0

54

Troy-Bilt 735-05053

Fuel Hose
(Superseded to 735-05053A)

$9.49

$

Usually ships in 3-6 days

0

55

Troy-Bilt 712-04287

Flywheel Nut M14

$6.49

$

In Stock, only 1 left!

0

56

Troy-Bilt 951-12161

Starter Cup

$15.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 951-10934

Cooling Fan
(Superseded to 951-10909A)

$

$

Not available

58

Troy-Bilt 951-15736

Flywheel

$101.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt 710-04918

Bolt M6x20

$3.99

$

Usually ships in 3-6 days

0

60

Troy-Bilt 925-07223

Alternator

$32.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt 951-11596

Upper Crankshaft Seal

$5.99

$

In Stock, only 1 left!

0

62

Troy-Bilt 710-04919

Bolt M6x25

$4.49

$

Usually ships in 3-6 days

0

63

Troy-Bilt 925-07224

Ignition Coil Assembly

$36.99

$

Usually ships in 3-6 days

0

64

Troy-Bilt 710-04943

Bolt M6x28

$3.99

$

In Stock, only 2 left!

0

65

Troy-Bilt 951-05312

Electric Starter Assembly (69:12)

$135.99

$

Usually ships in 3-6 days

0

66

Troy-Bilt 715-04088

Starter Housing Dowel Pin 8x8

$3.99

$

In Stock, Qty 6

0

67

Troy-Bilt 951-15676

Crankcase

$168.99

$

Usually ships in 3-6 days

0

68

Troy-Bilt 951-14404

Breather Cover Plate

$13.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 951-14405

Breather Gasket

$9.49

$

Usually ships in 3-6 days

0

70

Troy-Bilt 732-04718

Breather Valve Spring

$4.49

$

Usually ships in 3-6 days

0

71

Troy-Bilt 951-11614

Breather Valve

$3.99

$

Usually ships in 3-6 days

0

72

Troy-Bilt 951-11730

Breather Screen

$5.49

$

Usually ships in 3-6 days

0

73

Troy-Bilt 951-11529

Air Vane
(Superseded to 951-11529A)

$6.99

$

In Stock, only 1 left!

0

74

Troy-Bilt 951-14719

Air Vane Bracket

$7.99

$

Usually ships in 3-6 days

0

75

Troy-Bilt 951-11622

Flexible Clamp
(Superseded to 951-11622A)

$3.99

$

Usually ships in 3-6 days

0

76

Troy-Bilt 951-15678

Breather Hose Assembly

$7.49

$

Usually ships in 3-6 days

0

77

Troy-Bilt 951-15679

Choke Linkage

$6.49

$

Usually ships in 3-6 days

0

78

Troy-Bilt 951-15677

Throttle Linkage

$5.99

$

Usually ships in 3-6 days

0

79

Troy-Bilt 951-11258

Throttle Linkage Spring
(Superseded to 951-11258A)

$4.49

$

In Stock, Qty 5

0

80

Troy-Bilt 951-11608

Governor Arm Shaft
(Superseded to 951-11621)

$9.49

$

Usually ships in 3-6 days

0

81

Troy-Bilt 951-11574

Governor Seal
(Superseded to 951-11902)

$4.49

$

In Stock, only 1 left!

0

82

Troy-Bilt 714-04078

Governor Arm Shaft Cotter Pin

$3.99

$

Usually ships in 3-6 days

0

83

Troy-Bilt 951-05160A

Governor Arm Assembly

$5.99

$

Usually ships in 3-6 days

0

84

Troy-Bilt 951-15680

Governor Spring

$6.49

$

Usually ships in 3-6 days

0

85

Troy-Bilt 908-05254

Component Bracket

$6.49

$

Usually ships in 3-6 days

0

86

Troy-Bilt 908-05255

Governor Shield

$4.49

$

Usually ships in 3-6 days

0

87

Troy-Bilt 951-15681

Crankcase Cover Gasket

$15.99

$

Usually ships in 3-6 days

0

88

Troy-Bilt 715-04092

Crankcase Cover Dowel Pin 7x14
(Superseded to 715-04096A)

$3.99

$

Usually ships in 3-6 days

0

89

Troy-Bilt 715-04096

Crankcase Cover Dowel Pin 9x14
(Superseded to 715-04096A)

$3.99

$

Usually ships in 3-6 days

0

90

Troy-Bilt 951-11369

Main Bearing

$32.99

$

Usually ships in 3-6 days

0

91

Troy-Bilt 951-15684

Crankshaft Assembly

$90.99

$

Usually ships in 3-6 days

0

92

Troy-Bilt 951-10307

Flywheel Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 11

0

93

Troy-Bilt 951-15795

Camshaft Assembly

$42.99

$

Usually ships in 3-6 days

0

94

Troy-Bilt 951-11609

Governor Gear Mounting Plate

$4.99

$

Usually ships in 3-6 days

0

95

Troy-Bilt 951-05336

Governor Gear/Shaft Assembly
(Superseded to 951-05336A)

$8.49

$

Usually ships in 3-6 days

0

96

Troy-Bilt 736-04491

Crankshaft Thrust Washer

$4.49

$

Usually ships in 3-6 days

0

97

Troy-Bilt 951-11644

Oil Drain Plug

$9.49

$

In Stock, Qty 6

0

98

Troy-Bilt 951-15737

Crankcase Cover

$66.99

$

Usually ships in 3-6 days

0

99

Troy-Bilt 951-15686

Lower Crankshaft Seal
(Superseded to 951-15686A)

$9.49

$

Usually ships in 3-6 days

0

100

Troy-Bilt 710-04980

Bolt M6x35

$3.99

$

Usually ships in 3-6 days

0

101

Troy-Bilt 951-05540

Dipstick Assembly
(Superseded to 951-05540A)

$18.99

$

In Stock, only 1 left!

0

102

Troy-Bilt 921-04795

Dipstick / Oil Fill Tube O-Ring
(Superseded to 921-04795A)

$3.99

$

Usually ships in 3-6 days

0

103

Troy-Bilt 921-04697

Dipstick / Oil Fill Tube O-Ring

$3.49

$

Usually ships in 3-6 days

0

104

Troy-Bilt 710-04906

Oil Drain Plug

$6.49

$

In Stock, Qty 6

0

105

Troy-Bilt 736-04440

Oil Drain Plug Washer
(Superseded to 736-04440A)

$6.49

$

In Stock, Qty 6

0

106

Troy-Bilt 951-10351

Spark Arrestor
(Superseded to 951-10351A)

$51.99

$

Usually ships in 3-6 days

0

107

Troy-Bilt 710-04983

Spark Arrestor Screw

$3.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 951-05538

Carburetor Assembly

$83.99

$

Usually ships in 3-6 days

0

a

Choke Shaft

$

$

Not available

b

Choke Plate

$

$

Not available

c

Throttle Shaft

$

$

Not available

d

Choke Return Spring

$

$

Not available

e

Troy-Bilt 736-04556

Choke Shaft Washer

$3.99

$

Usually ships in 3-6 days

0

f

Throttle/Choke Shaft Fiber O-Ring

$

$

Not available

g

Idle Jet Assembly

$

$

Not available

h

Carburetor Body

$

$

Not available

i

Emulsion Tube

$

$

Not available

j

Main Jet

$

$

Not available

k

Troy-Bilt 951-11589

Fuel Bowl O-Ring
(Superseded to 951-11589A)

$6.49

$

In Stock, Qty 20+

0

l

Needle Valve

$

$

Not available

m

Needle Valve Spring

$

$

Not available

n

Float Pin

$

$

Not available

o

Troy-Bilt 908-05001

Fuel Bowl

$7.99

$

In Stock, only 1 left!

0

p

Troy-Bilt 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$3.99

$

In Stock, Qty 16

0

q

Troy-Bilt 710-04938

Fuel Drain Plug

$3.99

$

In Stock, only 4 left!

0

r

Screw M3x6 Throttle Plate

$

$

Not available

s

Throttle Plate

$

$

Not available

t

Idle Speed Adjusting Screw

$

$

Not available

u

Idle Mixture Screw

$

$

Not available

v

Float

$

$

Not available

w

Troy-Bilt 951-11348

Fuel Bowl Mounting Bolt Gasket
(Superseded to 951-11348A)

$5.49

$

Usually ships in 3-6 days

0

x

Troy-Bilt 710-04945

Fuel Bowl Mounting Bolt

$3.99

$

In Stock, Qty 8

0
