8/25 (1692374) - Simplicity Baker Chipper Vacuum, 8hp Handles & Controls Group Parts Diagram

Baker Chipper Vacuum, 8hp

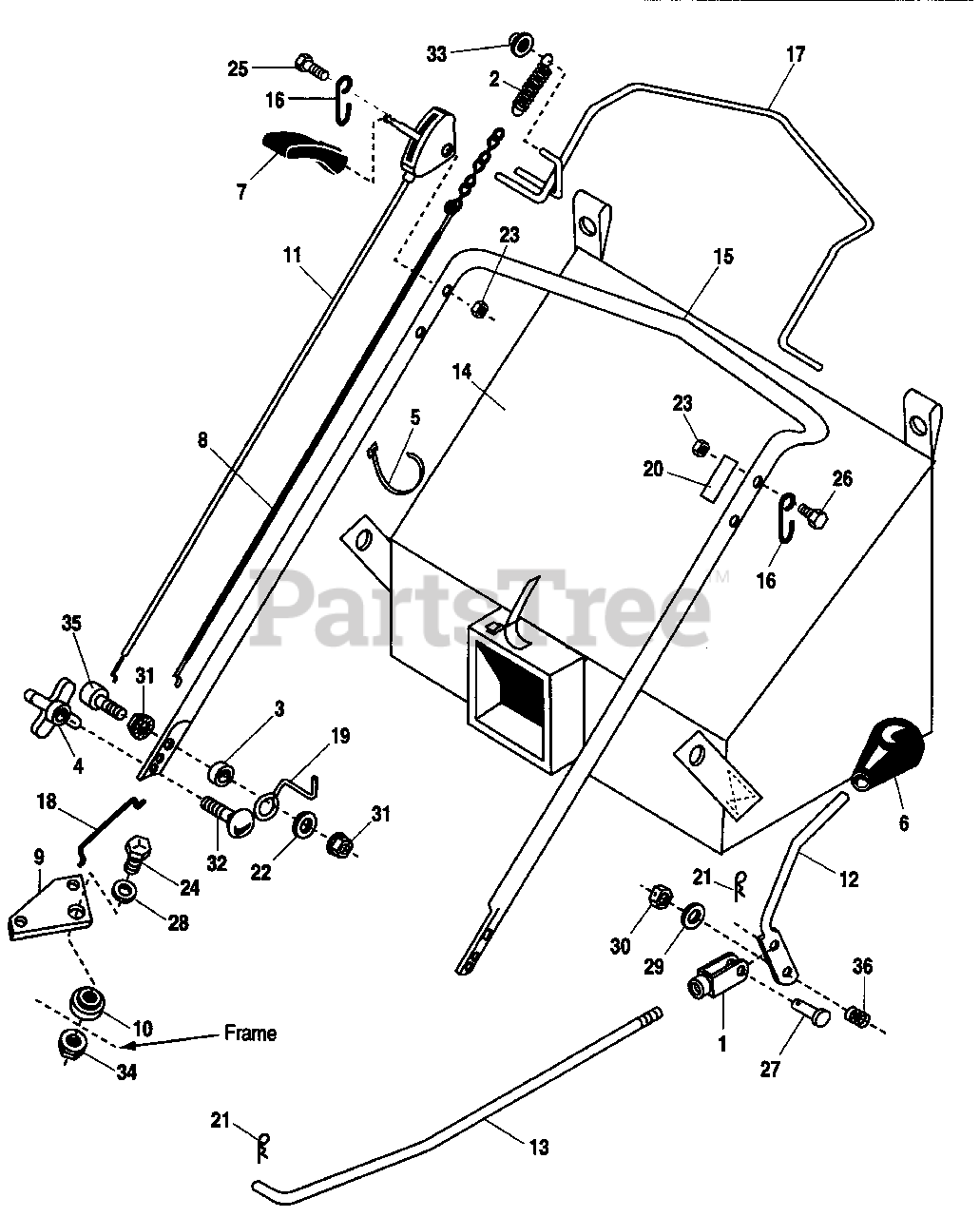

Handles & Controls Group Parts Diagram

  • Title

1

Simplicity 2108157SM

CLEVIS

$24.99

$

Usually ships in 2-12 days

0

2

Simplicity 2118495SM

SPRING

$5.99

$

Usually ships in 2-12 days

0

3

Simplicity 1665889SM

SPACER

$

$

Not available

4

Simplicity 1670578SM

KNOB, Handle

$13.99

$

In Stock, only 1 left!

0

5

Simplicity 1701011SM

TIE, Self-locking

$5.49

$

In Stock, only 2 left!

0

6

Simplicity 1713843SM

KNOB, Handle, Height Adjustment

$12.99

$

Usually ships in 2-12 days

0

7

Simplicity 1713846SM

HANDLE, Shift Control

$15.99

$

In Stock, Qty 5

0

8

Simplicity 1713914SM

CABLE, Traction

$67.99

$

Usually ships in 2-12 days

0

9

Simplicity 1713915SM

BELLCRANK

$

$

Not available

10

Simplicity 1713916SM

SPACER, Pivot

$25.99

$

Usually ships in 2-12 days

0

11

Simplicity 1713917SM

CABLE, Shift Control

$37.99

$

Usually ships in 2-12 days

0

12

Simplicity 1713919SM

HANDLE, Height Adjustment

$

$

Not available

13

Simplicity 1713920SM

ROD

$12.99

$

Usually ships in 2-12 days

0

14

Simplicity 1713940SM

BAG

$106.99

$

Usually ships in 2-12 days

0

15

Simplicity 1713941SM

HANDLE

$90.99

$

Usually ships in 2-12 days

0

16

Simplicity 1713942SM

HOOK, Bag

$3.99

$

Usually ships in 2-12 days

0

17

Simplicity 1713943SM

BAIL ASSY.

$36.99

$

Usually ships in 2-12 days

0

18

Simplicity 1713944SM

LINK, Traction

$2.49

$

Usually ships in 2-12 days

0

19

Simplicity 1713953SM

GUIDE, Cable

$63.99

$

Usually ships in 2-12 days

0

20

Simplicity 1714451

DECAL, Clutch Bail

$

$

Not available

21

Simplicity 1918196SM

PIN, Quick
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0

22

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 18

0

23

Simplicity 1920397SM

NUT, Hex, Nylock 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 1921333SM

CAPSCREW, Hex Hd., 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 3 left!

0

25

Simplicity 1921963SM

CAPSCREW, Hex Hd., 1/4-20 x 2

$4.49

$

Usually ships in 2-12 days

0

26

Simplicity 1922837SM

CAPSCREW, Hex Hd., 1/4-20 x 1-1/2
(Superseded to 703234)

$4.49

$

In Stock, only 3 left!

0

27

Simplicity 1923087SM

PIN, Yoke

$9.49

$

In Stock, only 2 left!

0

28

Simplicity 1924874SM

WASHER, 5/16
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

29

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

30

Simplicity 1930645SM

NUT, Center Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

31

Simplicity 1931277SM

NUT, Serrated, Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

32

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

33

Simplicity 1932718SM

PUSH NUT, Pal, 5/16
(Superseded to 704028)

$5.49

$

In Stock, Qty 9

0

34

Simplicity 1935048SM

NUT, Hex, Flange Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

35

Simplicity 1960539

CAPSCREW, Hex, Socket Hd., 5/16-18 x 1-3/4

$

$

Not available

36

Simplicity 1729278SM

SPRING

$2.49

$

Usually ships in 2-12 days

0
