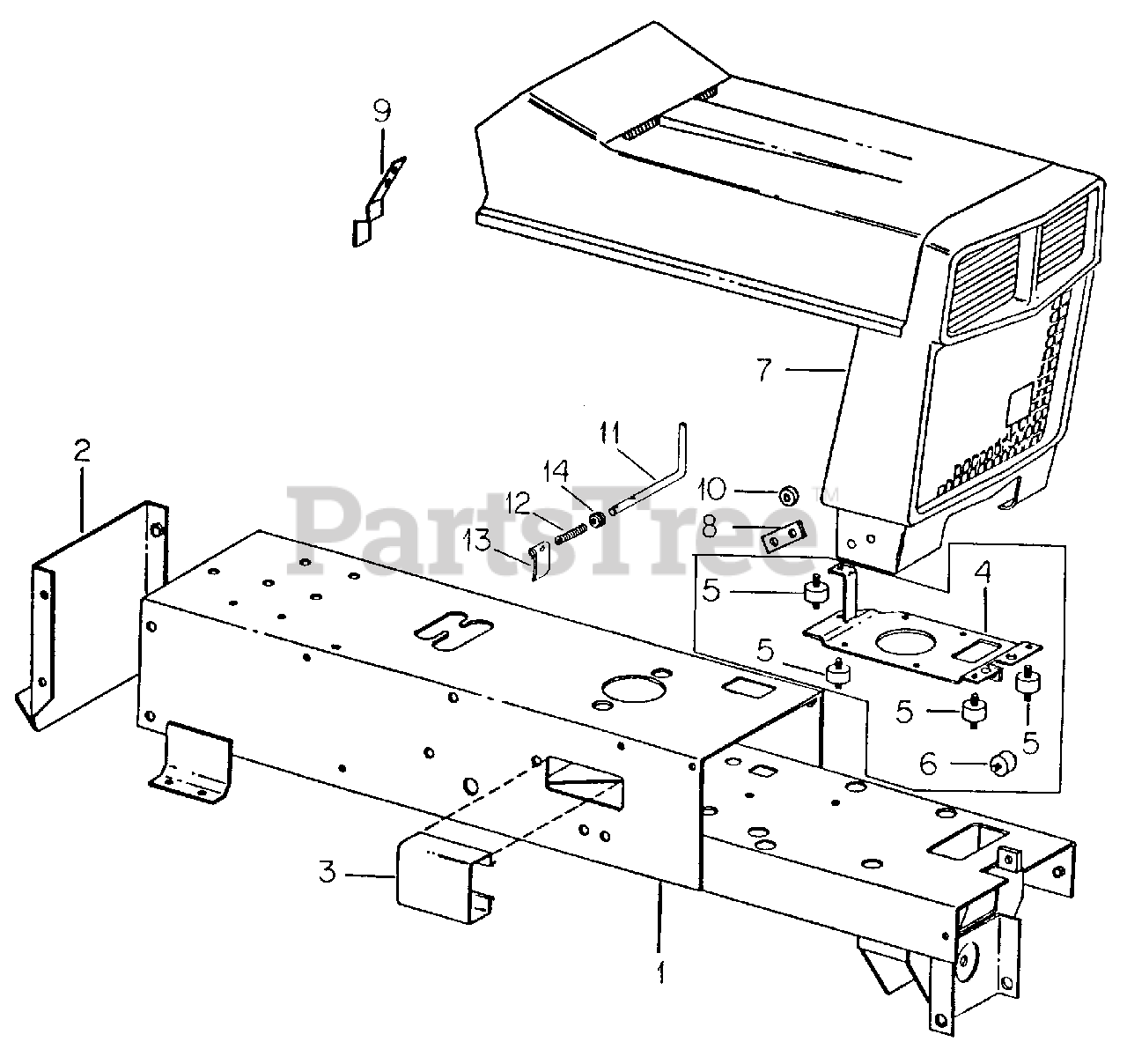

80 (0350002U) - Cub Cadet Lawn Tractor Drawbar, Engine Mount, Hood, Grille & Frame Parts Diagram

Lawn Tractor

Drawbar, Engine Mount, Hood, Grille & Frame Parts Diagram

  • Title

1

~NLA

Frame Assy

Note: (Serial no. 32314 & below)

$

$

Not available

Cub Cadet 703-0312

Frame Assy

Note: (Serial no. 32315 & above)

$

$

Currently unavailable

~NLA

Screw, Type 5 Truss Hd

$

$

Not available

2

Cub Cadet 703-0329

Drawbar Assy

$

$

Not available

3

Cub Cadet 703-0284

Cover, Steering Arm

$

$

Not available

4

~NLA

Plate Assy, Engine Mounting

Note: (Serial no. 32314 & below)

$

$

Not available

Cub Cadet 710-0805

Screw, 5/16-18 X 1-1/2 Znd Hex Hd Cap
(Superseded to 710-0805A)

$3.99

$

In Stock, Qty 8

0

Nut, 5/16-18 Nylon Insert

Note: (Common Hardware, Purchase Locally)

$

$

Not available

5

Cub Cadet IH-538990-R1

Mount, Cylindrical

Note: (Serial no. 32314 & below)

$30.99

$

Usually ships in 3-6 days

0

6

Cub Cadet IH-538991-R1

Mount, Engine Front

Note: (Serial no. 32314 & below)

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4-20 Znd Hex

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0119

Washer, 5/16 Znd Reg Lock
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 712-0267

Nut, 5/16-18 Znd Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Washer, 1/4 X .552 X .036 Znd

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 710-0344

Bolt, 3/8-16 X 1-1/2 Znd Hex Hd

$5.49

$

In Stock, only 1 left!

0

7

Cub Cadet 703-0332

Hood Assy

$

$

Not available

8

Cub Cadet 703-0334

Bracket, Hood Front Mounting

$

$

Not available

Cub Cadet 710-0342

Bolt, 3/8-16 X 1-1/4 Znd Hex Hd
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 710-0798

Nut, 3/8-16 Znd Hex

$

$

Currently unavailable

Cub Cadet 736-0226

Washer, 13/32 X 7/8 X 16 Ga C-Z
(Superseded to 936-0226)

$3.99

$

In Stock, only 3 left!

0

Cub Cadet 710-0375

Nut, 3/8-16 Cdp Hex Lock
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 17

0

Cub Cadet 710-0334

Bolt, 3/8 X 1-1/2 Znd Hex Hd Mach

$

$

Not available

9

Cub Cadet 703-0333

Latch, Hood

$

$

Not available

Screw, 8-32 X 7/16 Cr Zn Pan Hd Slt & Cr Rec Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet IH-131015

Washer, .188 X .438 X .036 Znd

$

$

Currently unavailable

Cub Cadet 712-0142

Nut, 8-32 Znd Hex Mach Screw

$4.49

$

In Stock, Qty 12

0

10

Cub Cadet 735-3011

Spacer, Rubber

$

$

Not available

Cub Cadet IH-614452-R1

Washer, 13/32 X 1-1/4 X 11 Ga Znd
(Superseded to 936-0133)

$

$

Not available

Cub Cadet 736-3032

Washer, 13/32 X 1 X 16 Ga Znd

$

$

Not available

11

Cub Cadet 747-3041

Rod, Dump Valve

Note: (Serial no. 32315 & above)

$

$

Not available

12

Cub Cadet 732-3023

Spring, Dump Valve
(Superseded to 932-3023)

Note: (Serial no. 32315 & above)

$17.99

$

In Stock, Qty 7

0

13

Cub Cadet 703-0310

Lever, Dump

Note: (Serial no. 32315 & above)

$18.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 735-3008

Grommet, Rubber

Note: (Serial no. 32315 & above)

$

$

Not available

Cub Cadet 714-0474

Pin, 1/8 X 3/4 Cot

$4.49

$

In Stock, Qty 16

0

Cub Cadet 715-3008

Pin, 1/8 X 3/4 Hvy Cld Spr

$

$

Not available

Cub Cadet 736-0275

Washer, .344 X .688 X .051

$6.49

$

Usually ships in 3-6 days

0
