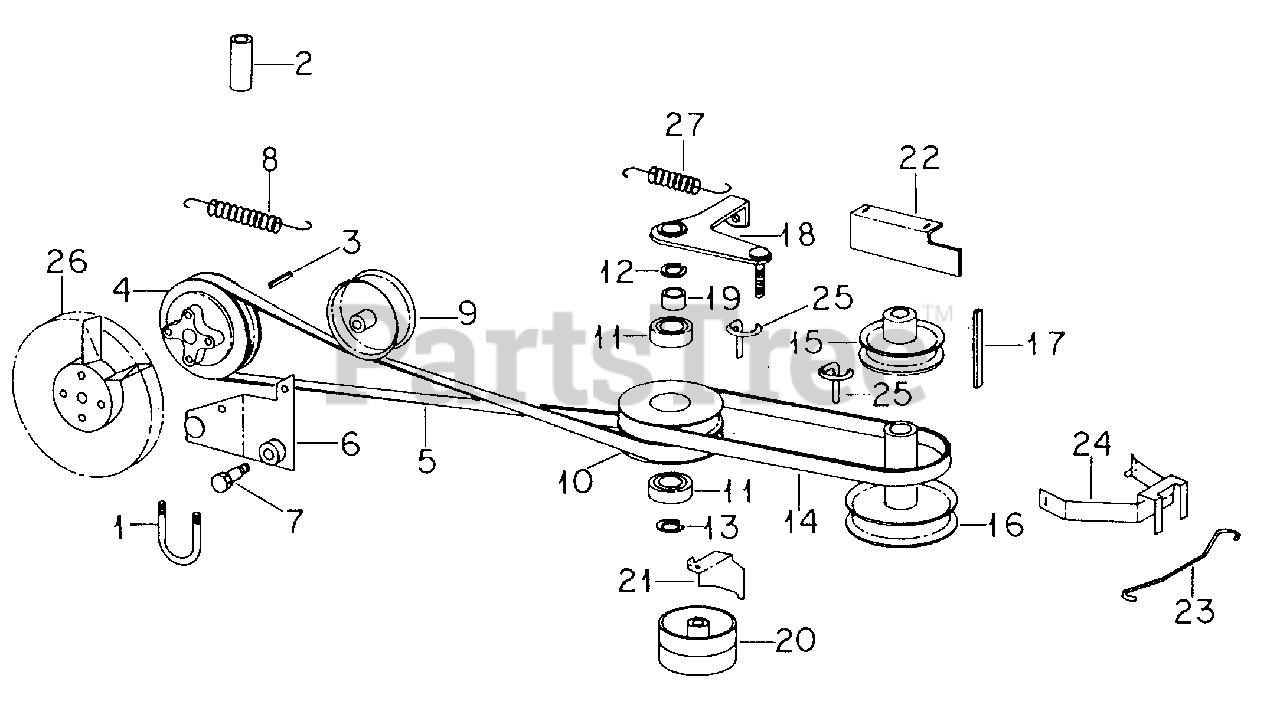

80 (0350002U) - Cub Cadet Lawn Tractor Drive Parts Diagram

Lawn Tractor

Drive Parts Diagram

  • Title

1

Cub Cadet 710-3046

U-Bolt

$

$

Not available

Cub Cadet 712-3009

Nut, 5/16-18 Cdp Hex Lock

$7.49

$

In Stock, Qty 20+

0

2

Cub Cadet 750-3010

Spacer, Transaxle Mounting

$

$

Not available

Bolt, 3/8 X 3 Type 1

Note: (Common Hardware, Purchase Locally)

$

$

Not available

3

Cub Cadet 714-0156

Key, 1/8 X 1/2 Woodruff 3

$

$

Not available

4

Cub Cadet 756-3014

Pulley, Transmission Drive

$168.99

$

In Stock, only 1 left!

0

Cub Cadet 711-3061

Bushing

$

$

Not available

Cub Cadet 736-0222

Washer, 1/4 Ext Tooth Lock

$6.49

$

In Stock, only 3 left!

0

Cub Cadet 710-3049

Screw, 1/4-20 X 9/16 Znd Hex Hd Cap

$

$

Not available

Cub Cadet 703-0302

Retainer, Bolt

$

$

Not available

Cub Cadet 736-3033

Washer, .281 X .875 X .098 Phc Hdn

$

$

Not available

5

Cub Cadet 754-3007

Belt, Hydrostatic Final Drive
(Superseded to 954-3007)

$

$

Not available

6

Cub Cadet 703-0285

Arm Assy, Belt Tensioning

$

$

Not available

7

Cub Cadet 738-3017

Bolt, IPTO Shoulder

$

$

Not available

Cub Cadet 712-3009

Nut, 5/16-18 Cdp Hex Lock

$7.49

$

In Stock, Qty 20+

0

8

Cub Cadet 732-3019

Spring, Extension

Note: (Hydrostatic final drive belt, 5.5 Inch long, 48 coils)

$

$

Not available

9

Cub Cadet 756-3009

Pulley, Final Drive Idler
(Superseded to 956-3009)

$73.99

$

Usually ships in 3-6 days

0

Cub Cadet 712-0375

Nut, 3/8-16 Cdp Hex Lock

$4.99

$

In Stock, only 1 left!

0

10

Cub Cadet 756-3010

Pulley, Intermediate Drive

$

$

Not available

11

Cub Cadet 741-3006

Bearing, Intermediate Pulley
(Superseded to 941-3006)

$105.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 716-0101

Ring, External Retaining

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 716-3003

Ring, Internal Retaining

$

$

Not available

14

Cub Cadet 754-3008

Belt, Hydrostatic Clutching
(Superseded to 954-3008)

$33.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 756-3011

Pulley, Hydrostatic Engine Drive

$

$

Not available

16

~NLA

Pulley, Mower Drive, 4-5/8 Inch diameter

Note: (Order 756-3012)

$

$

Not available

Cub Cadet 756-3012

Pulley, Mower Drive, 5-1/4 Inch diameter

$

$

Not available

Cub Cadet 710-0510

Bolt, 7/16-NF X 3 Type 5

$11.99

$

In Stock, Qty 5

0

Cub Cadet 736-3030

Washer, 15/32 X 1-1/2 X 11 Ga C-Z

$

$

Not available

Cub Cadet 712-3031

Nut, 7/16-20 Flange

$

$

Not available

17

~NLA

Key, 1/4 X 2-3/4 Sq Parallel

$

$

Not available

18

Cub Cadet 703-0287

Bushing Assy, Clutch

$

$

Not available

Cub Cadet 736-3028

Washer, .781 X 1.250 X .054

$

$

Not available

19

Cub Cadet 741-3007

Bushing
(Superseded to 741-3007A)

$

$

Not available

20

Cub Cadet 756-3013

Pulley, Mower Shifter Idler
(Superseded to 956-3013)

$

$

Not available

Cub Cadet 712-0375

Nut, 3/8-16 Cdp Hex Lock

$4.99

$

In Stock, only 1 left!

0

21

Cub Cadet 703-0290

Guide, Belt

$

$

Not available

22

Cub Cadet 703-0291

Guide, Belt

$

$

Not available

Cub Cadet 712-3009

Nut, 5/16-18 Cdp Hex Lock

$7.49

$

In Stock, Qty 20+

0

23

Cub Cadet 747-3037

Support, Belt Guide

$

$

Not available

24

Cub Cadet IH-538741-R1

Guide, Engine Belt

Note: (Used w/pulley 4-5/8 diameter)

$

$

Not available

Cub Cadet 703-0301

Guide, Engine Belt

Note: (Used w/pulley 5-1/4 diameter)

$

$

Not available

25

Cub Cadet 747-3030

Guide, Transaxle Belt

$

$

Not available

Cub Cadet 712-0267

Nut, 5/16-18 Znd Hex
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0195

Washer, 11/32 X 7/8 X 16 Ga C-Z

$

$

Not available

26

Cub Cadet 759-3273

Fan, Hydrostatic 6 Blade
(Superseded to 759-3273P)

Note: (Order bushing 711-3061 & washer 736-3033)

$128.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 732-3020

Spring, Extension

Note: (For clutching belt, 4.9 Inch long, 30 coils)

$

$

Not available
