80-4900 - Toro Auxiliary Valve Kit for Groundsmaster 200 Series GM 220D & 224 AUXILIARY VALVE KIT Parts Diagram

Auxiliary Valve Kit for Groundsmaster 200 Series

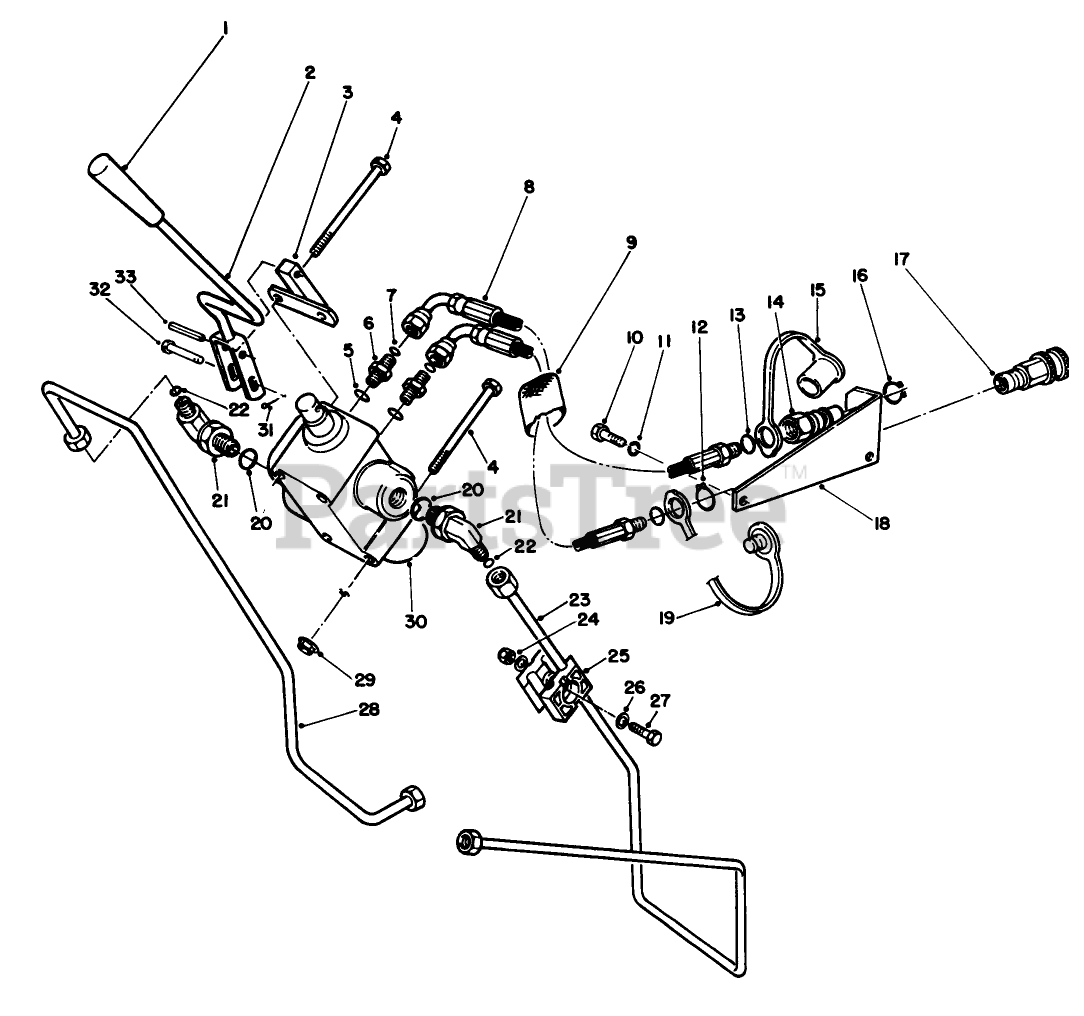

GM 220D & 224 AUXILIARY VALVE KIT Parts Diagram

  • Title

1

Toro 233-39

KNOB-CONTROL

$16.99

$

Usually ships in 3-6 days

0

2

Toro 80-3490

VALVE LEVER ASM, WELDED
(Superseded to 80-3490-03)

$

$

Not available

3

Toro 80-3360

LEVER-PIVOT

$123.99

$

Usually ships in 3-6 days

0

4

Toro 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

5

Toro 237-78

O-RING

$3.99

$

Usually ships in 3-6 days

0

6

Toro 340-92

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

7

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

8

Toro 77-5960

HYDRAULIC HOSE ASM

$133.99

$

Usually ships in 3-6 days

0

9

Toro 56-7982

SLEEVE-PROTECTIVE

$13.99

$

Usually ships in 3-6 days

0

10

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

11

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12

Toro 32151-83

RING-SNAP

$0.99

$

Usually ships in 3-6 days

0

13

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

14

Toro 63-1240

NIPPLE-DISCONNECT, QUICK

$23.99

$

Usually ships in 3-6 days

0

15

Toro 353-985

CAP-DUST

$15.99

$

Usually ships in 3-6 days

0

16

Toro 32151-79

RING-RETAINING

$6.49

$

Usually ships in 3-6 days

0

17

Toro 63-1220

COUPLER-DISCONNECT, QUICK

$82.99

$

Usually ships in 3-6 days

0

18

Toro 77-6670

QUICK COUPLER BRKT R

$

$

Not available

19

Toro 353-984

PLUG-DUST

$14.99

$

Usually ships in 3-6 days

0

20

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

21

Toro 340-77

FITTING-ELBOW, 90 DEG

$26.99

$

In Stock, only 1 left!

0

22

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 20+

0

23

Toro 77-5980

LINE-HYD (PRESSURE)

$

$

Not available

24

Toro 3296-8

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

25

Toro 56-7973

CLAMP-TUBE

$18.99

$

In Stock, only 1 left!

0

26

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

28

Toro 77-5990

HYD TUBE ASM

$

$

Not available

29

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

30

Toro 43-1950

HYD CONTROL VALVE ASM

$797.99

$

Usually ships in 3-6 days

0

31

Toro 3272-4

PIN-COTTER

$0.99

$

In Stock, Qty 6

0

32

Toro 283-17

PIN-CLEVIS

$6.49

$

Usually ships in 3-6 days

0

33

Toro 32121-5

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

Toro 80-4640

DECAL - LIFT
(Superseded to 107-2939)

$

$

Not available
