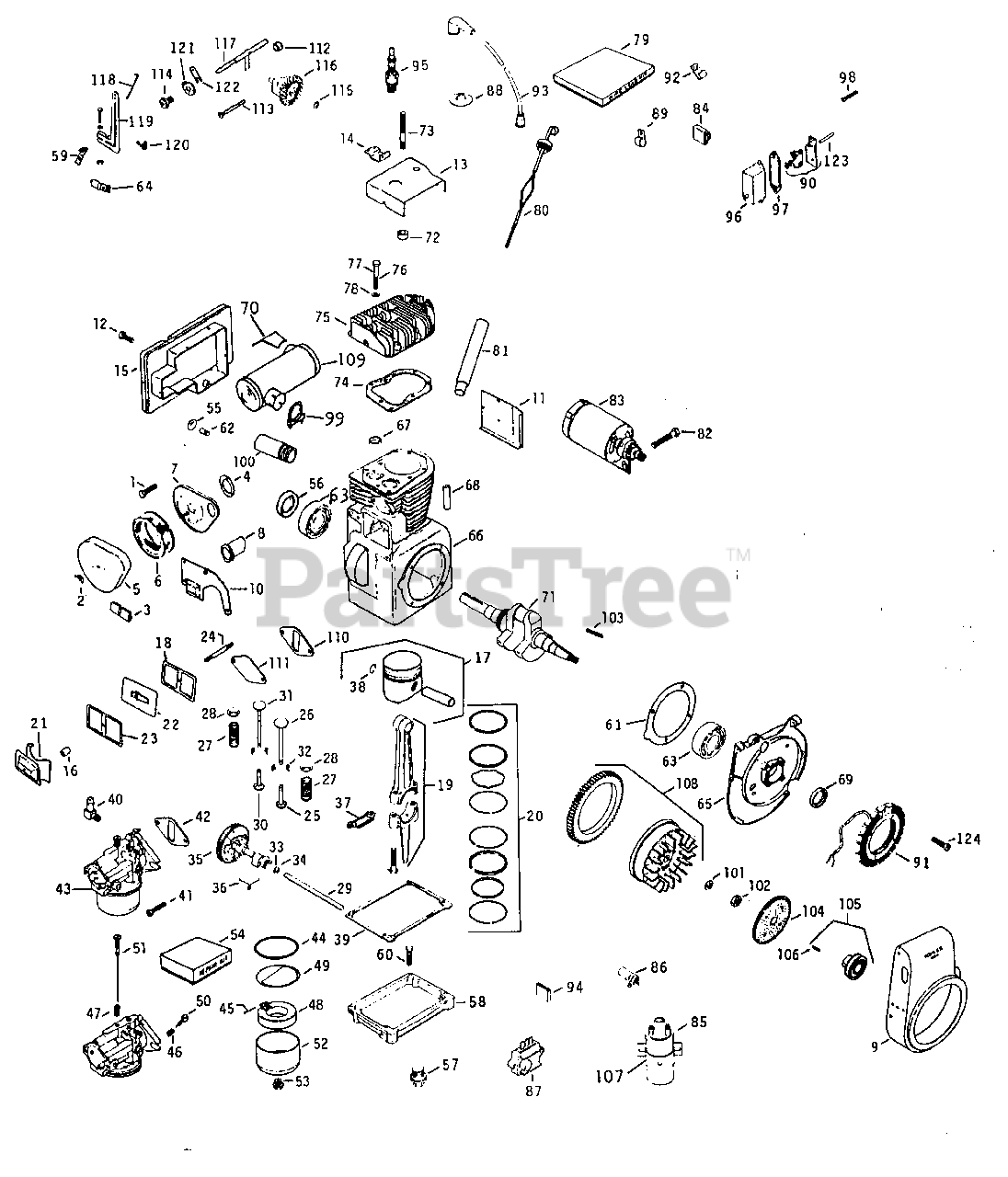

800 (2050520U) - Cub Cadet Garden Tractor Engine Parts Diagram

Garden Tractor

Engine Parts Diagram

  • Title

1

Screw, 8-32 X 1/2 Znd Hex Hd Self Tap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

2

Cub Cadet KH-X-276-7

Nut, Wing
(Superseded to KH-25-100-15-S)

$

$

Not available

3

Cub Cadet KH-47-032-03

Seal, Cover

$

$

Not available

4

Cub Cadet KH-41-041-11

Gasket, Air Cleaner

$

$

Not available

5

~NLA

Cover, Air Cleaner

$

$

Not available

6

Cub Cadet IH-385168-R2

Element, Air Cleaner
(Superseded to IH-385168-R3)

$32.99

$

In Stock, only 1 left!

0

7

~NLA

Base, Air Cleaner

$

$

Not available

8

~NLA

Tube, Air Cleaner

$

$

Not available

9

Cub Cadet IH-117121-C1

Housing, Blower

$

$

Currently unavailable

Screw w/Lock Washer, 1/4-20 X 3/4 Znd Hex Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

10

~NLA

Baffle, Side

$

$

Not available

11

Cub Cadet KH-41-063-06

Baffle, Cylinder

$

$

Currently unavailable

Cub Cadet IH-9409106

Screw w/Lock Washer, 1/4-20 X 1/2 Znd Hex Hd Mach

$

$

Not available

12

Cub Cadet IH-9409106

Screw w/Lock Washer, 1/4-20 X 1/2 Znd Hex Hd Mach

$

$

Not available

13

Cub Cadet KH-41-124-02

Baffle, Head

$

$

Not available

Cub Cadet IH-9409106

Screw w/Lock Washer, 1/4-20 X 1/2 Znd Hex Hd Mach

$

$

Not available

14

Cub Cadet KH-47-126-08

Bracket, Lifting

$

$

Not available

15

~NLA

Duct, Air

$

$

Not available

Screw w/Lock Washer, 3/8-16 X 1 Znd Hex Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet IH-544629-R1

Washer, 17/64 X 5/8 X 1/16 Cdp

$

$

Currently unavailable

Cub Cadet IH-319565-C1

Washer, 3/8 X 5/8 X 1/16

$

$

Currently unavailable

16

Cub Cadet KH-230046

Seal, Breather

$

$

Not available

17

Cub Cadet KH-41-874-05

Piston Assy, Std

$

$

Not available

Cub Cadet KH-41-874-07

Piston Assy, .010 O/S

$

$

Not available

Cub Cadet KH-41-874-08

Piston Assy, .020 O/S

$

$

Not available

Cub Cadet KH-41-874-09

Piston Assy, .030 O/S

$

$

Not available

18

Cub Cadet KH-230048

Gasket, Breather & Vent

$

$

Not available

19

Cub Cadet KH-41-067-10

Rod Assy, Connecting, Std

$

$

Not available

Cub Cadet KH-41-067-11

Rod Assy, Connecting, .010 U/S

$

$

Not available

20

Cub Cadet KH-232575

Ring Set, Piston, Std

$

$

Not available

Cub Cadet KH-232576

Ring Set, Piston, .010 O/S

$

$

Not available

Cub Cadet KH-232577

Ring Set, Piston, .020 O/S

$

$

Not available

Cub Cadet KH-232578

Ring Set, Piston, .030 O/S

$

$

Not available

21

~NLA

Breather & Vent Assy

$

$

Not available

22

Cub Cadet KH-230066

Plate, Breather Assy

$

$

Not available

23

Cub Cadet KH-230048

Gasket, Plate

$

$

Not available

24

~NLA

Stud, Breather Plate

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4-20 Znd Hex

$4.99

$

In Stock, Qty 9

0

Washer, 1/4 Reg Lock

Note: (Common Hardware, Purchase Locally)

$

$

Not available

25

~NLA

Tappet, Intake

$

$

Not available

26

Cub Cadet KH-230008

Valve, Intake

$

$

Not available

27

Cub Cadet KH-230010

Spring, Valve

$

$

Not available

28

Cub Cadet KH-230011

Retainer, Valve Spring

$

$

Not available

29

Cub Cadet KH-41-380-03

Pin, Camshaft

$

$

Not available

30

~NLA

Tappet, Exhaust

$

$

Not available

31

Cub Cadet KH-230710

Valve, Exhaust

$

$

Not available

32

Cub Cadet IH-46209D

Key, Valve Spring

Note: (Order in sets of 2)

$

$

Currently unavailable

33

Cub Cadet KH-230293

Shim, Camshaft, .005

$

$

Not available

34

Cub Cadet KH-230294

Shim, Camshaft, .010

$

$

Not available

35

Cub Cadet KH-A-230155-S

Camshaft Kit

$

$

Not available

36

Cub Cadet KH-47-089-01

Spring, Camshaft Actuating

$

$

Not available

37

Cub Cadet KH-230525

Lock, Screw

$

$

Not available

38

Cub Cadet KH-230004

Retainer, Piston Pin

$

$

Not available

39

Cub Cadet KH-41-041-03

Gasket, Oil Pan Base

$

$

Not available

40

Cub Cadet KH-X-391-12

Elbow, Hose Connector
(Superseded to KH-25-155-38-S)

$16.99

$

In Stock, only 2 left!

0

41

Screw, 1/4-20 X 3/4 Znd Slt Hex Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet KH-X-25-63

Washer, 17/64 X 1/2 X .062 Cdp

$

$

Not available

42

Cub Cadet KH-41-049-01

Gasket, Carburetor

$

$

Not available

43

Cub Cadet KH-41-053-04

Carburetor Assy

$

$

Not available

44

Gasket, Fuel Bowl

Note: (Not serviced separately, order kit KH-25-757-01)

$

$

Not available

45

Cub Cadet KH-200376

Pin, Hinge

$

$

Not available

46

Cub Cadet KH-200380

Spring, Idle Adjusting Screw

$8.49

$

Usually ships in 2-5 days

0

47

Cub Cadet KH-200383

Spring, High Speed Needle

$

$

Not available

48

Cub Cadet KH-25-757-03

Float & Lever Assy
(Superseded to KH-25-757-03-S)

$

$

Not available

49

Gasket, Bowl Baffle

Note: (Not serviced separately, order kit KH-25-757-01)

$

$

Not available

50

Cub Cadet KH-200438

Screw, Idle Adjusting

$

$

Not available

51

Cub Cadet KH-232635

Needle, High Speed

$

$

Not available

52

Cub Cadet KH-200418

Bowl, Fuel

$

$

Not available

53

Cub Cadet KH-41-100-01

Screw w/Gasket, Fuel Bowl
(Superseded to KH-41-100-01-S)

$

$

Not available

54

Cub Cadet KH-25-757-01

Kit, Carburetor Repair

$22.99

$

In Stock, only 3 left!

0

55

Cub Cadet IH-172548

Plug, 1-1/8 Expansion

$

$

Currently unavailable

56

Cub Cadet KH-X-583-2

Seal, Rear Oil

$

$

Not available

57

Cub Cadet KH-X-75-10

Plug, 3/8-18 Auto Sq Hd Drain
(Superseded to KH-25-139-57-S)

$2.49

$

In Stock, Qty 5

0

58

~NLA

Base, Oil Pan

$

$

Not available

59

Cub Cadet KH-41-126-04

Bracket, Choke

$

$

Not available

60

Screw w/Lock Washer, 5/16-18 X 1-1/2 Znd Hex Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

61

Cub Cadet KH-230071

Gasket, Bearing Plate

$

$

Not available

62

~NLA

Shaft, Governor

$

$

Not available

63

Cub Cadet IH-ST429

Bearing, Crankcase Ball
(Superseded to 941-3033A)

$57.99

$

In Stock, only 2 left!

0

64

Cub Cadet KH-235603

Clip, Choke Bracket Speed

$

$

Not available

Cub Cadet IH-544629-R1

Washer, 17/64 X 5/8 X 1/16 Cdp

$

$

Currently unavailable

65

~NLA

Plate, Crankcase Bearing

$

$

Not available

Screw w/Lock Washer, 1/4-20 X 3/4 Znd Hex Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

66

Block, Cylinder

Note: (Not serviced separately, order short block KH-41-522-36)

$

$

Not available

Cub Cadet IH-24840-R1

Screw, 3/8-16 X 7/8 Znd Hex Hd Cap

$

$

Not available

67

Cub Cadet KH-230170

Insert, Exhaust Valve

$

$

Not available

68

Cub Cadet KH-230007-S

Guide, Valve

$25.99

$

Usually ships in 2-5 days

0

69

Cub Cadet KH-X-583-1

Seal, Front Oil

$

$

Not available

70

Cub Cadet IH-107117-C1

Deflector, Exhaust

Note: (Used only w/QA-36A & QA-42A snow throwers)

$

$

Not available

Cub Cadet 726-3037

Clamp, Deflector

$

$

Not available

71

Cub Cadet KH-41-014-04

Crankshaft

$

$

Not available

72

Cub Cadet KH-234847

Spacer

$

$

Not available

73

~NLA

Stud, Cylinder Head

$

$

Not available

Cub Cadet 712-0267

Nut, 5/16-18 Znd Hex
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

Washer, 5/16 Reg Lock

Note: (Common Hardware, Purchase Locally)

$

$

Not available

74

Cub Cadet KH-41-041-10

Gasket, Cylinder Head

$

$

Not available

75

Cub Cadet KH-41-755-25

Head, Cylinder

$

$

Not available

76

Cub Cadet IH-9409106

Screw w/Lock Washer, 1/4-20 X 1/2 Znd Hex Hd Mach

$

$

Not available

77

Cub Cadet IH-454871

Screw, 5/16-18 X 1-1/2 Znd Hex Hd Cap Type 8
(Superseded to KH-41-086-02)

$

$

Not available

78

Cub Cadet KH-220534

Washer, Head

$

$

Not available

Cub Cadet IH-544629-R1

Washer, .312 X .625 X .094 Cdp

$

$

Currently unavailable

Cub Cadet 736-0463

Washer, .281 X .625 X .051 Znd

$4.99

$

In Stock, Qty 15

0

79

~NLA

Kit, Coil Breaker Point Cable

$

$

Not available

80

Cub Cadet KH-A-231725

Dipstick Assy

$

$

Not available

81

Cub Cadet KH-231726

Tube, Oil Fill

$

$

Not available

82

Cub Cadet IH-24840-R1

Screw, 3/8-16 X 7/8 Znd Hex Hd Cap

$

$

Not available

Washer, 3/8 Reg Lock

Note: (Common Hardware, Purchase Locally)

$

$

Not available

83

Cub Cadet KH-41-098-03

Starter Motor Assy
(Superseded to KH-41-098-08)

Note: (For components see list of parts under details of starter motor)

$

$

Not available

84

Cub Cadet KH-48-155-02

Connector

$

$

Not available

85

Cub Cadet KH-231281

Coil, Ignition
(Superseded to KH-41-519-21-S)

$149.99

$

In Stock, only 2 left!

0

86

Cub Cadet IH-62188-C1

Condenser, Ignition Coil
(Superseded to KH-230722-S)

$34.99

$

In Stock, only 3 left!

0

87

Cub Cadet KH-25-755-03

Regulator Assy

$

$

Not available

Cub Cadet TC-792026

Screw, 1/4-20 X 7/8 Znd Hex Hd Cap

$4.49

$

Usually ships in 3-12 days

0

Cub Cadet 736-0329

Washer, 1/4 Znd Reg Lock
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 12

0

88

Cub Cadet KH-47-313-01

Grommet, Spark Plug

$

$

Not available

89

~NLA

Clip, Cable

$

$

Not available

90

Cub Cadet KH-47-150-03

Breaker & Bracket Assy

$

$

Not available

Cub Cadet IH-62189-C1

Breaker Set
(Superseded to KH-47-150-03)

$

$

Not available

Cub Cadet KH-X-67-59

Screw, 8-32 X 3/8 Znd Hex Washer Hd

$

$

Not available

91

Cub Cadet KH-237878

Kit, Stator

$149.99

$

In Stock, Qty 9

0

92

Cub Cadet KH-230249

Clip, Terminal

$

$

Not available

93

Cub Cadet KH-238057

Kit, Hi-Tension Lead
(Superseded to KH-238057-S)

$

$

Not available

94

Cub Cadet KH-236602

Connector
(Superseded to KH-25-155-41-S)

$31.99

$

In Stock, only 3 left!

0

95

Cub Cadet IH-J8C

Plug, Spark (Champion)
(Superseded to 759-3339)

$4.49

$

In Stock, Qty 7

0

96

Cub Cadet KH-232535

Cover, Breaker
(Superseded to KH-232535-S)

$

$

Not available

97

Cub Cadet KH-52-041-11

Gasket, Breaker Cover
(Superseded to KH-52-041-11-S)

$3.49

$

In Stock, only 1 left!

0

98

Cub Cadet IH-27095-R1

Screw, 10-24 X 1 Znd Pan Hd Mach

$

$

Not available

Washer, No. 10 Znd Int Tooth Lock

Note: (Common Hardware, Purchase Locally)

$

$

Not available

99

Cub Cadet IH-117586-C1

Clamp Assy, Muffler

$

$

Not available

100

Cub Cadet KH-41-136-03

Nipple, Exhaust

$

$

Currently unavailable

101

Cub Cadet KH-X-25-15

Washer

$

$

Currently unavailable

102

Cub Cadet IH-125267

Nut, 5/8-18 Znd Hex Lock

$

$

Not available

103

Cub Cadet IH-532004-R1

Key, 3/16 X 1-3/8 Sq Parallel
(Superseded to KH-X-286-17)

$

$

Not available

104

Cub Cadet KH-41-162-04

Screen, Grass

$

$

Currently unavailable

Screw, 1/4-20 X 5/8 Znd Tr Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 736-0463

Washer, .281 X .625 X .060 Znd

$4.99

$

In Stock, Qty 15

0

105

Cub Cadet KH-41-071-03

Cup Assy, Flywheel Drive

$

$

Not available

106

Cub Cadet IH-385293-R1

Pin, Flywheel Drive Cup
(Superseded to KH-X-56-7)

$

$

Not available

107

Cub Cadet IH-396328-R1

Clamp, Ignition Coil
(Superseded to KH-41-126-44-S)

$

$

Not available

Screw w/Lock Washer, 1/4-20 X 5/8 Znd Hex Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Screw w/Lock Washer, 1/4-20 X 3/4 Znd Hex Hd Mach

Note: (Common Hardware, Purchase Locally)

$

$

Not available

108

Cub Cadet KH-41-025-17

Flywheel Assy

$

$

Not available

109

Cub Cadet IH-62019-C2

Muffler Assy

$

$

Currently unavailable

Cub Cadet 710-3100

Screw, 5/16-18 X 5/8 Znd Hex Hd Cap

$

$

Not available

Cub Cadet 736-0159

Washer, .344 X .875 X 16 Ga

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-3007

Washer, 5/8 Int Ext Tooth Lock Znd

$

$

Not available

110

Cub Cadet KH-52-041-17

Gasket, Pump Cover

$

$

Not available

111

Cub Cadet KH-240282

Cover, Pad

$

$

Not available

Cub Cadet IH-9409106

Screw w/Lock Washer, 1/4-20 X 1/2 Znd Hex Hd Mach

$

$

Not available

112

Cub Cadet KH-234866

Bearing, Governor Needle

$

$

Not available

113

Cub Cadet KH-231355

Pin, Governor Stop
(Superseded to KH-231355-S)

$11.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-X-25-12

Washer, 17/64 X 15/32 X .047, Copper

$

$

Not available

114

Cub Cadet KH-230476

Bushing, Governor Shaft
(Superseded to KH-230476-S)

$

$

Not available

115

Cub Cadet KH-X-25-58

Washer, Thrust

$

$

Not available

116

Cub Cadet KH-A-235743-S

Gear, Governor

$79.99

$

In Stock, only 1 left!

0

117

Cub Cadet KH-230540-S

Shaft, Governor

$132.99

$

Usually ships in 2-5 days

0

118

Cub Cadet KH-230078

Linkage, Governor

$

$

Not available

119

Cub Cadet KH-232614

Lever, Governor

$

$

Not available

Cub Cadet KH-X-67-46

Screw, 8-32 X 1/4 Cdp Slt Hex Hd Self Tap

$

$

Not available

Cub Cadet 736-0463

Washer, 9/32 X 5/8 X .062 Znd

$4.99

$

In Stock, Qty 15

0

Screw, 1/4-20 X 1 Znd Hex Hd Cap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4-20 Znd Hex

$4.99

$

In Stock, Qty 9

0

120

Cub Cadet KH-232617

Spring, Governor

$

$

Not available

121

Cub Cadet KH-230149

Disc, Governor Regulating

$

$

Not available

Screw, No. 2 X 3/16 C-Z Rd Hd Blunt Metal Drive

Note: (Common Hardware, Purchase Locally)

$

$

Not available

122

Cub Cadet KH-230477

Bracket, Speed Control

$

$

Not available

123

Cub Cadet KH-41-411-01

Rod, Breaker

$

$

Not available

124

Cub Cadet KH-X-131-1

Screw, 10-24 X 3/8 Fil Hd Mach

$

$

Not available

Cub Cadet KH-41-004-01

Kit, Engine Gasket
(Superseded to KH-41-755-06)

$

$

Not available

Cub Cadet KH-41-041-11

Gasket, Air Cleaner Gasket, Air Horn

$

$

Not available

Cub Cadet KH-230071

Gasket, Bearing Plate

$

$

Not available

Cub Cadet KH-52-041-11

Gasket, Breaker Cover
(Superseded to KH-52-041-11-S)

$3.49

$

In Stock, only 1 left!

0

Cub Cadet KH-41-049-01

Gasket, Carburetor

$

$

Not available

Cub Cadet KH-41-041-10

Gasket, Cylinder Head Gasket, Exhaust

$

$

Not available

Cub Cadet KH-41-041-03

Gasket, Oil Pan

$

$

Not available

Cub Cadet KH-52-041-17

Gasket, Pump Pad

$

$

Not available

Cub Cadet KH-230048

Gasket, Valve Cover Shim

$

$

Not available

Cub Cadet KH-230046

Seal, Breather

$

$

Not available
