80040 - Lawn-Boy 25" Easy Mulch Rear-Engine Riding Mower (SN: 004900001 - 004999999) (1994) ENGINE ASSEMBLY Parts Diagram

25" Easy Mulch Rear-Engine Riding Mower

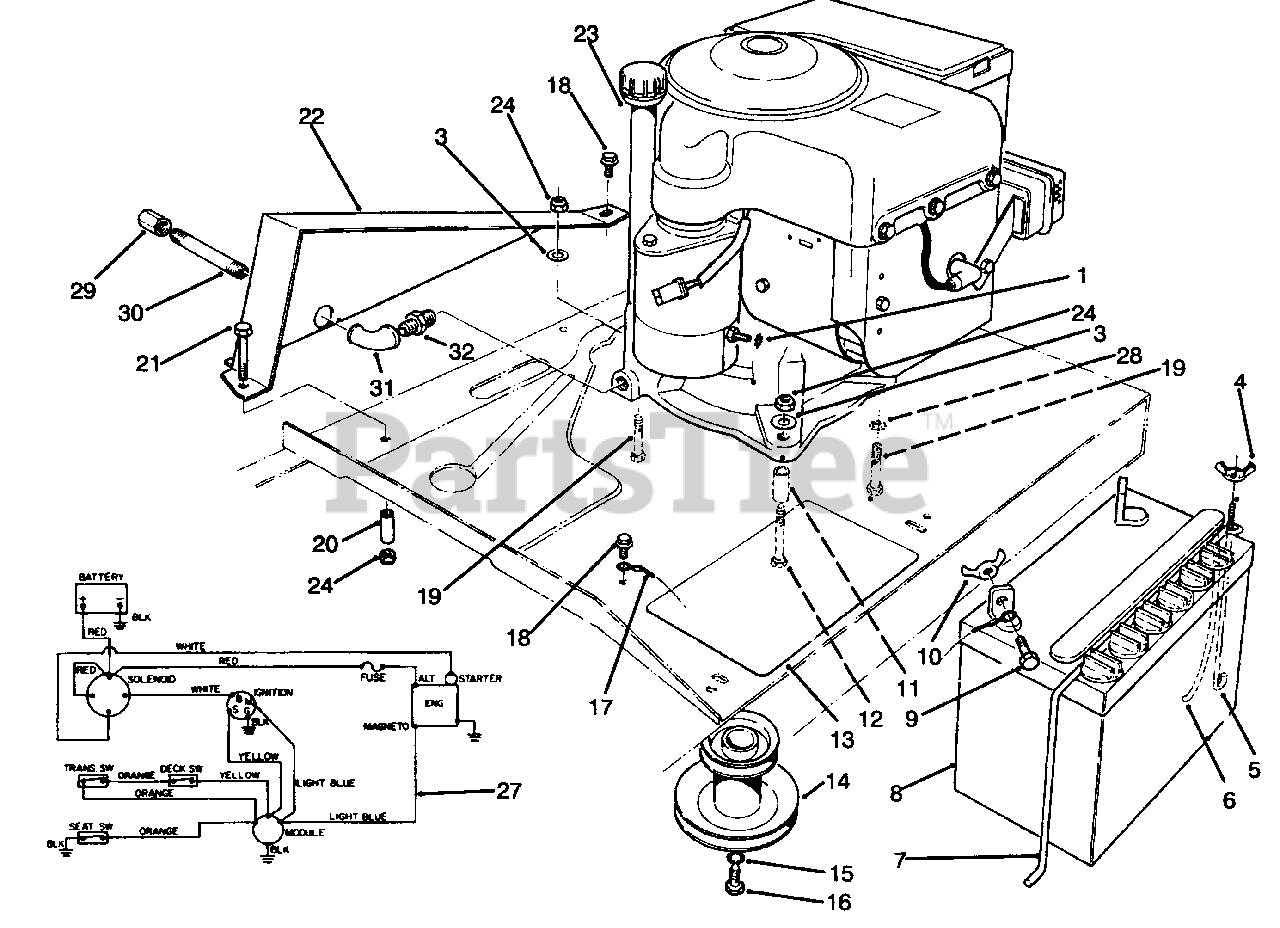

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 3255-7

Washer-Lock, Int. Tooth

$1.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 3256-23

Washer-Flat

$2.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 32103-14

Nut-Wing

$13.99

$

In Stock, only 1 left!

0

5

Lawn-Boy 56-7720

Post-Hold Down, Battery
(Superseded to 100-6435)

$18.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 56-2540

Tube-Drain

$4.49

$

In Stock, only 1 left!

0

7

Lawn-Boy 56-7710

Hold Down-Battery

$19.99

$

In Stock, only 2 left!

0

8

Lawn-Boy 80-2600

Battery 12V
(Superseded to 105-1692)

$

$

Not available

9

Lawn-Boy 321-4

Screw-Cap Hex. Hd.

$1.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 32103-22

Nut-Wing

$2.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 80-4560

Spacer

$

$

Not available

12

Lawn-Boy 322-12

Screw-Cap Hex. Hd.
(Superseded to 32136-4)

$1.99

$

In Stock, Qty 14

0

13

Lawn-Boy 62-4300

Pad-Anti-Skid

$18.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 83-4840

Pulley-Engine
(Superseded to 98-0712)

$131.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 3256-25

Washer-Flat

$0.99

$

In Stock, Qty 10

0

16

Lawn-Boy 62-3760

Screw-Cap Hex. Hd.

$9.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 56-7870

Assembly-Wire Battery to Ground

$26.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 32144-14

Screw -Self Tapping

$4.99

$

In Stock, only 3 left!

0

19

Lawn-Boy 322-7

Screw-Cap Hex. Hd.

$1.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 67-0920

Guide-Belt

$13.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 322-10

Screw-Cap Hex. Hd.

$0.99

$

In Stock, Qty 10

0

22

Lawn-Boy 67-0962-02

Guard-Chain

$87.99

$

Usually ships in 3-6 days

0

23

Engine-8 H.P. B & S

$

$

Not available

24

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

27

Lawn-Boy 88-9870

Harness-Wire
(Superseded to 93-7444)

$207.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 3255-8

Washer-Lock

$0.99

$

In Stock, Qty 7

0

29

Lawn-Boy 288-2

Cap-Pipe

$16.99

$

In Stock, only 1 left!

0

30

Lawn-Boy 289-34

Nipple-Pipe

$34.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 2811-17

Elbow-Street

$

$

Not available

32

Lawn-Boy 2812-1

Reducer

$5.99

$

Usually ships in 3-6 days

0
