80040 - Lawn-Boy 25" Easy Mulch Rear-Engine Riding Mower (SN: 004900001 - 004999999) (1994) FRONT AXLE ASSEMBLY Parts Diagram

25" Easy Mulch Rear-Engine Riding Mower

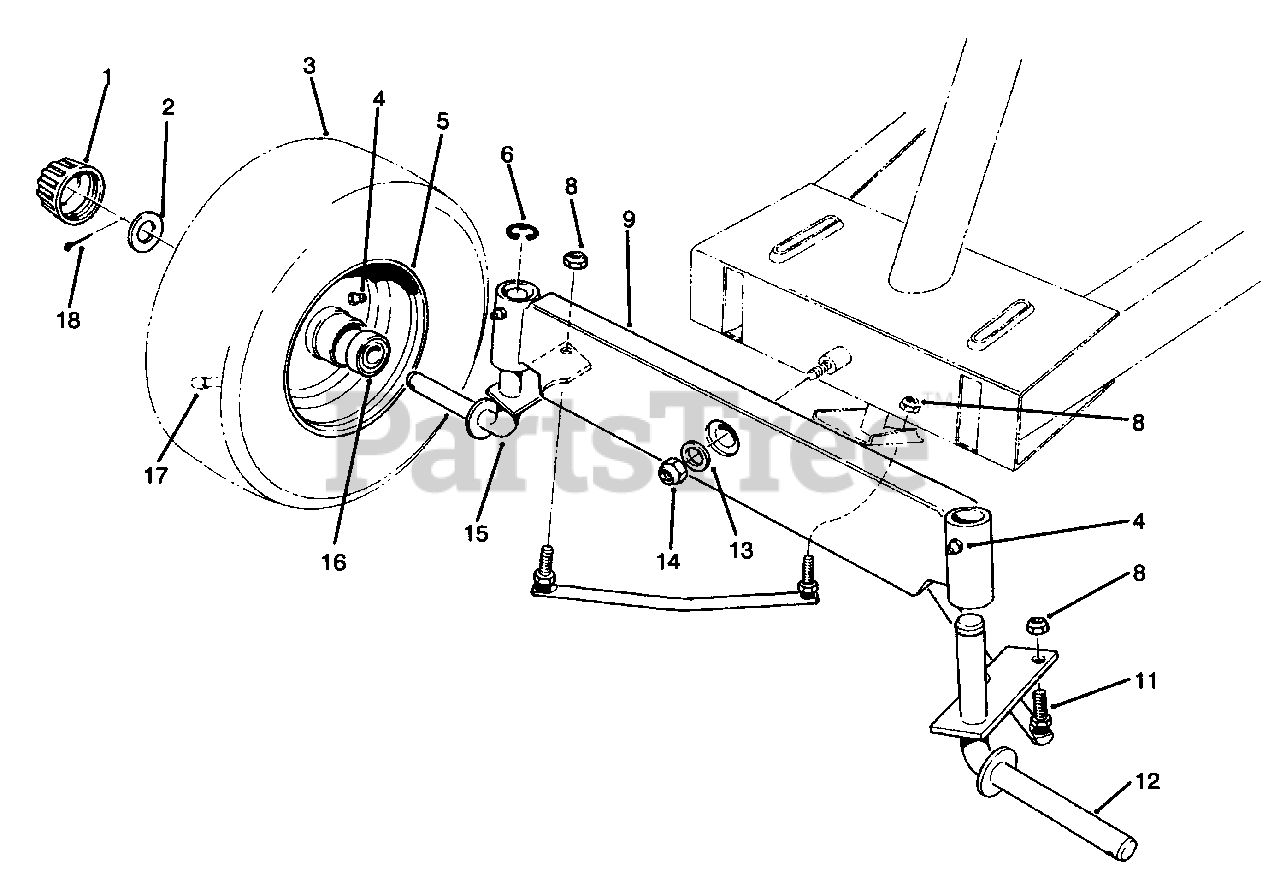

FRONT AXLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 61-9780

Cap-Hub

$7.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 28-2480

Washer-Flat

$4.49

$

In Stock, Qty 19

0

3

Lawn-Boy 231-116

Tire

$

$

Not available

4

Lawn-Boy 302-5

Fitting-Grease

$3.49

$

In Stock, Qty 16

0

5

Lawn-Boy 217-80

Rim

$192.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 32151-48

Ring-Retaining

$1.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 3296-4

Nut-Lock

$0.99

$

In Stock, Qty 9

0

9

Lawn-Boy 67-0990-03

Axle-Front

$669.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 67-0880

Assembly-Tie Rod

$78.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 67-0810-03

Spindle-L.H.

$60.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 3256-26

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 3296-25

Nut-Lock

$1.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 67-0800-03

Spindle-R.H.

$

$

Not available

16

Lawn-Boy 110513

Bearing

$21.99

$

In Stock, Qty 11

0

17

Lawn-Boy 232-27

Valve Stem w/Cap
(Superseded to 5108)

$6.99

$

In Stock, Qty 13

0

18

Lawn-Boy 3272-12

Pin-Cotter

$0.99

$

In Stock, Qty 20+

0
