80040 - Lawn-Boy 25" Power Mulch Rear-Engine Riding Mower (SN: 003900001 - 003999999) (1993) REAR AXLE ASSEMBLY Parts Diagram

25" Power Mulch Rear-Engine Riding Mower

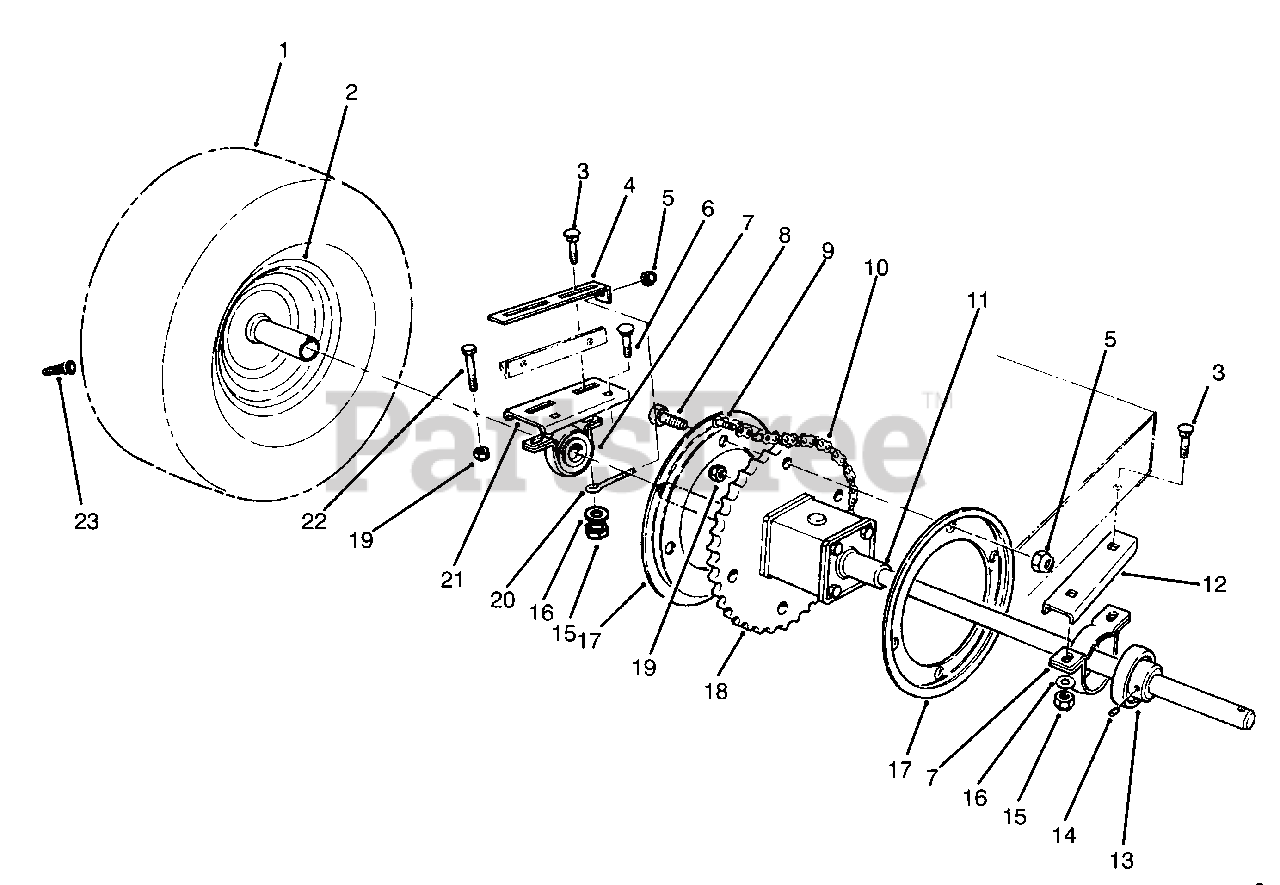

REAR AXLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 231-115

Tire

$97.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 44-9760

Rim

$392.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 3231-4

Bolt-Carriage

$3.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 61-9990

Plate-Adjusting

$30.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 3296-42

Nut-Lock

$0.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 3231-25

Bolt-Carriage
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 12

0

7

Lawn-Boy 47-1480

Mount-Bearing

$55.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 321-4

Screw-Cap Hex. Hd.

$1.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 2710-11

Link-Connecting

$5.99

$

In Stock, only 1 left!

0

10

Lawn-Boy 67-0910

Chain (Incl. Ref. #9)

$

$

Not available

11

Lawn-Boy 56-9960

Differential

$

$

Not available

12

Lawn-Boy 66-6630

Support L.H.
(Superseded to 66-6630-03)

$

$

Not available

13

Lawn-Boy 47-1490

Bearing (Incl. Ref. #14)

$70.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 3245-32

Screw-Set

$5.49

$

In Stock, only 2 left!

0

15

Lawn-Boy 3296-39

Nut-Lock

$2.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 3256-24

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 76-1580-03

Guide-Chain

$19.99

$

In Stock, only 1 left!

0

18

Lawn-Boy 76-4010

Sprocket

$56.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 61-9980

Screw-Adjusting

$8.49

$

In Stock, only 1 left!

0

21

Lawn-Boy 66-6620

Support R.H.
(Superseded to 66-6620-03)

$11.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 46-2511

Bolt-Axle

$3.49

$

Usually ships in 3-6 days

0

23

Lawn-Boy 232-27

Valve Stem w/Cap
(Superseded to 5108)

$6.99

$

In Stock, Qty 13

0

Lawn-Boy 11-0410

Kit-Tire Chains (Optional)

Note: Not Illustrated

$

$

Not available
