80085986, 80085982 (1697223, 1688106) - Murray 18V Pole Saw & Hedge Trimmer Combo Pole Saw Parts Diagram

18V Pole Saw & Hedge Trimmer Combo

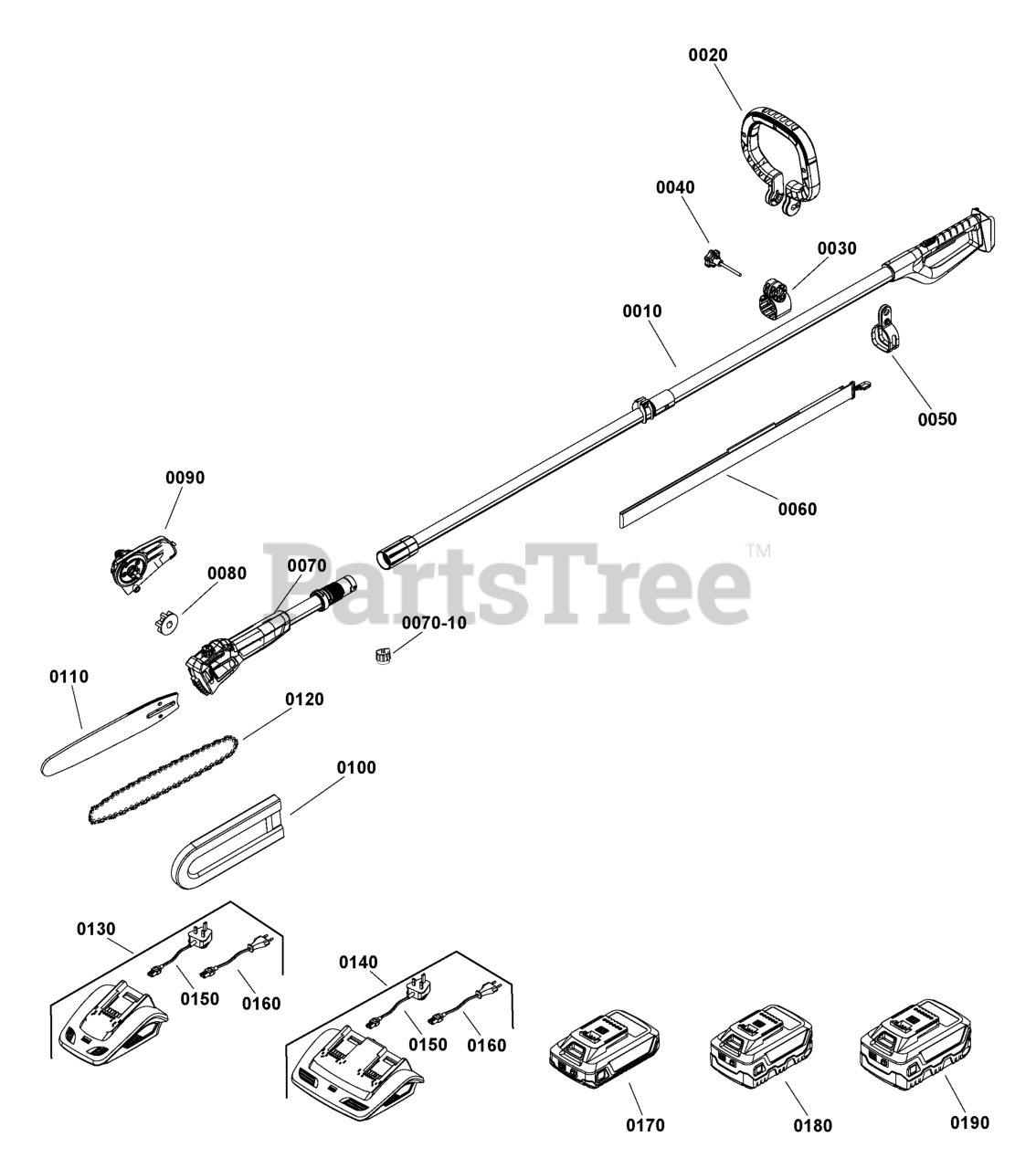

Pole Saw Parts Diagram

  • Title

0010

Murray 80092297

POLE HANDLE ASSEMBLY

$

$

Currently unavailable

0020

Murray BP20584A

HANDLE, Front

$

$

Currently unavailable

0030

Murray BP20585A

BRACKET, Front Handle

$

$

Currently unavailable

0040

Murray BP20586A

KNOB, Front Handle

$

$

Currently unavailable

0050

Murray BP20369A

LATCH, Harness

$

$

Currently unavailable

0060

Murray BP20374A

HARNESS

$

$

Currently unavailable

0070

Murray 80092289

POWERHEAD, Murray

Note: (Includes Ref. Nos. 0080)

$

$

Currently unavailable

0070-10

Murray BP20612A

Oil Cap - 18V Long Reach Pole Saw

$

$

Currently unavailable

0080

Murray BP20349A

SPROCKET

$

$

Currently unavailable

0090

Murray BP20359A

COVER ASSEMBLY, Chain Adjustment

$

$

Currently unavailable

0100

Murray BP20596A

COVER, Chain

$

$

Currently unavailable

0110

GUIDE BAR, 18V Pole Saw (Oregon 080SDEA041 )

Note: (Not a serviceable part)

$

$

Not available

0120

CHAIN, 18V Pole Saw (Oregon 91P033X)

Note: (Not a serviceable part)

$

$

Not available

0130

Murray 1697083

CHARGER, 18V

Note: (Option, Includes Ref. Nos. 0150 & 0160)

$

$

Currently unavailable

0140

Murray 1697084

CHARGER, Twin 18V

Note: (Option, Includes Ref. Nos. 0150 & 0160)

$

$

Currently unavailable

0150

Murray BP20190A

ELECTRICAL CORD UK, 18V Charger

Note: (Option)

$

$

Currently unavailable

0160

Murray BP20189A

ELECTRICAL CORD EU, 18V Charger

Note: (Option)

$

$

Currently unavailable

0170

Murray 883251

BATTERY, 18V, 2.5AH

Note: (Option)

$

$

Currently unavailable

0180

Murray 883252

BATTERY, 18V, 4.0 Ah

Note: (Option)

$

$

Currently unavailable

0190

Murray 883253

BATTERY, 18V, 5.0AH

Note: (Option)

$

$

Currently unavailable
