802 (137-513-100) - Cub Cadet Rear-Engine Riding Mower Engine (1987) B&S 8.0 HP-190702-2202-01 Part 1 Parts Diagram

Rear-Engine Riding Mower Engine

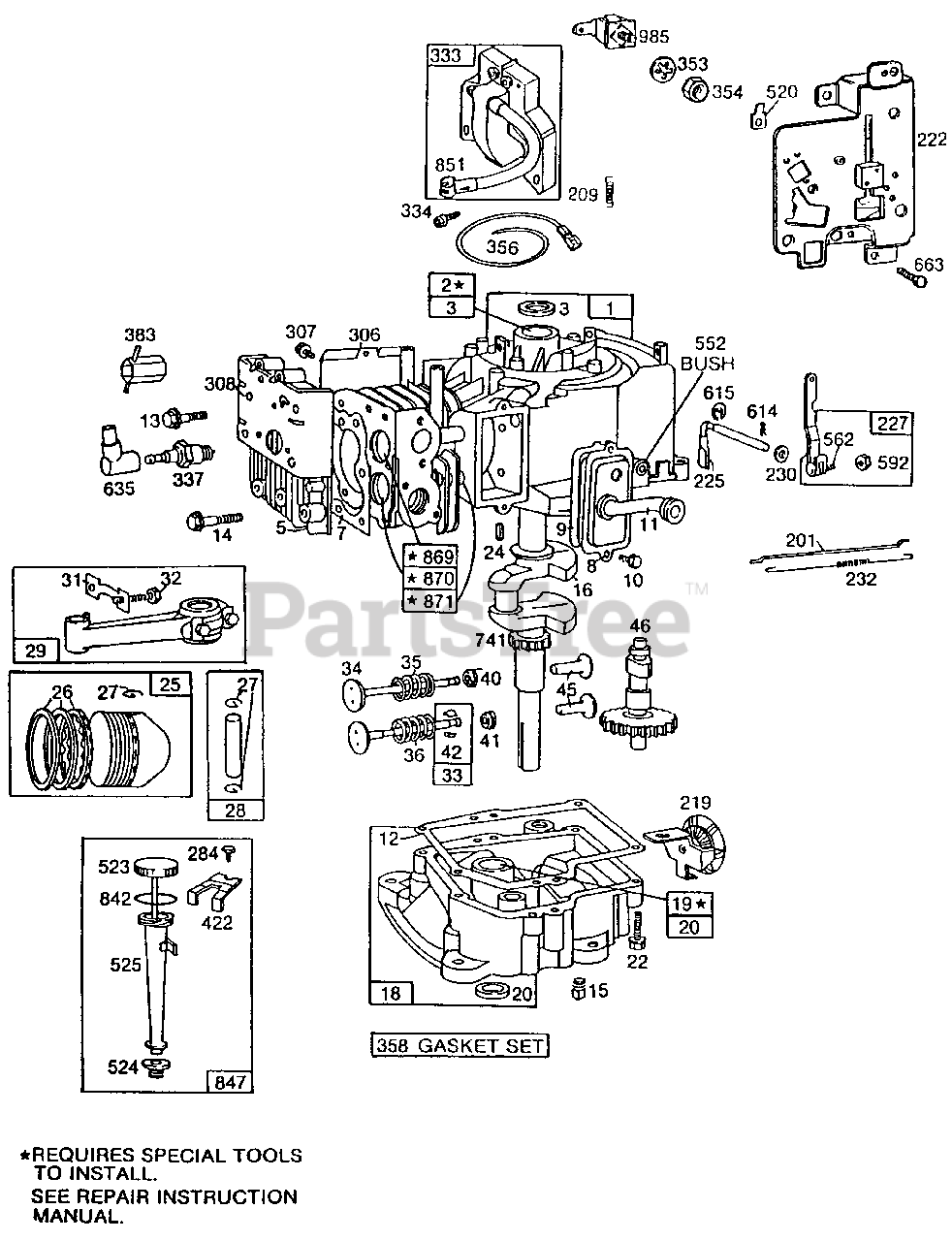

B&S 8.0 HP-190702-2202-01 Part 1 Parts Diagram

  • Title

1

Cub Cadet BS-396213

Cylinder Assembly

$

$

Currently unavailable

2

Cub Cadet BS-295962

Bushing-Cylinder

$

$

Currently unavailable

3

Cub Cadet BS-294606

Seal-Oil

$

$

Not available

5

Cub Cadet BS-212286

Head-Cylinder

$

$

Currently unavailable

7

Cub Cadet BS-270430

Gasket-Cylinder Head
(Superseded to BS-272163S)

Note: (Included in Gasket Set-Part No. 299577)

$7.99

$

In Stock, Qty 17

0

8

Cub Cadet BS-299848

Breather Assembly

$

$

Not available

9

Cub Cadet BS-27803

Gasket-Valve Cover
(Superseded to BS-27803S)

Note: (Included in Gasket Set-Part No. 299577)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet BS-93394

Screw-Sem
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

11

Cub Cadet BS-280005

Tube-Breather
(Superseded to BS-692293)

$10.99

$

In Stock, only 1 left!

0

12

Cub Cadet BS-27750

Gasket-Crankcase Cover- 1/64" Thick
(Superseded to BS-692221)

Note: (Included in Gasket Set-Part No. 299577)

$8.99

$

In Stock, Qty 10

0

Cub Cadet BS-27876

Gasket-Crankcase Cover-.005" Thick

Note: (Included in Gasket Set-Part No. 299577)

$8.49

$

Usually ships in 2-12 days

0

Cub Cadet BS-27877

Gasket-Crankcase Cover-.009" Thick

Note: (Included in Gasket Set-Part No. 299577)

$10.99

$

In Stock, only 3 left!

0

13

Cub Cadet BS-93211

Screw-Cylinder Head (2-21/32" Long)

$

$

Not available

14

Cub Cadet BS-93723

Screw-Cylinder Head (3" Long)

$

$

Not available

15

Cub Cadet BS-91084

Plug-Oil Drain
(Superseded to BS-690946)

$5.99

$

In Stock, Qty 18

0

16

Cub Cadet BS-397185

Crankshaft

$

$

Currently unavailable

18

Cub Cadet BS-392548

Base-Engine

$110.99

$

Usually ships in 2-12 days

0

19

Cub Cadet BS-295963

Bushing-Engine Base

$

$

Not available

20

Cub Cadet BS-391086

Seal-Oil
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

22

Cub Cadet BS-93585

Screw-Mtg. Sem

$

$

Not available

24

Cub Cadet BS-222698

Key-Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-391673

Piston Ass'y.-Std.
(Superseded to BS-499907)

$78.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-391674

Piston Assembly-.010" O.S.

$

$

Not available

Cub Cadet BS-391675

Piston Assembly-.020" O.S.
(Superseded to BS-499909)

$149.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-391676

Piston Assembly-.030" O.S.

$

$

Currently unavailable

26

Cub Cadet BS-391669

Ring Set-Piston-Std.
(Superseded to BS-499921)

$47.99

$

In Stock, only 1 left!

0

Cub Cadet BS-391670

Ring Set-Piston-.010" O.S.

$18.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-391671

Ring Set-Piston-.020" O.S.

$

$

Not available

Cub Cadet BS-391672

Ring Set-Piston-.030" O.S.

$

$

Currently unavailable

27

Cub Cadet BS-68546

Lock-Piston Pin

$

$

Not available

28

Cub Cadet BS-295840

Pin Ass'y.-Piston- Standard

$

$

Not available

Cub Cadet BS-295841

Pin Ass'y.-Piston-.005" O.S.

$6.99

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-390402

Rod Assembly-Connecting

$84.99

$

Usually ships in 2-12 days

0

31

Cub Cadet BS-222114

Lock-Connecting Rod Screw

$3.49

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-92659

Screw-Connecting Rod

$

$

Currently unavailable

33

Cub Cadet BS-390419

Valve-Exhaust

$

$

Not available

34

Cub Cadet BS-261055

Valve-Intake
(Superseded to BS-261055S)

$32.99

$

Usually ships in 2-12 days

0

35

Cub Cadet BS-65906

Spring-Intake Valve

$

$

Not available

36

Cub Cadet BS-26828

Spring-Exhaust Valve

$

$

Not available

40

Cub Cadet BS-221596

Retainer-Intake Valve
(Superseded to BS-690656)

$

$

Not available

41

Cub Cadet BS-292260

Rotocoil-Exhaust Valve
(Superseded to BS-691939)

$27.99

$

In Stock, only 1 left!

0

42

Cub Cadet BS-93630

Retainer-Exhaust Valve Rotocoil
(Superseded to BS-494553)

$7.99

$

In Stock, only 1 left!

0

45

Cub Cadet BS-260933

Tappet-Valve

$

$

Not available

46

Cub Cadet BS-211689

Gear-Cam

$

$

Not available

201

Cub Cadet BS-261611

Link-Governor

$20.99

$

Usually ships in 2-12 days

0

209

Cub Cadet BS-261306

Spring-Governor
(Superseded to BS-792813)

$6.99

$

In Stock, Qty 9

0

219

Cub Cadet BS-392718

Oil Slinger, Gov. Gear and Bracket Assembly

$

$

Not available

222

Cub Cadet BS-390746

Plate-Governor Control

$

$

Not available

225

Cub Cadet BS-231058

Crank-Governor (1/4" Dia.)
(Superseded to BS-692012)

$13.99

$

In Stock, only 4 left!

0

227

Cub Cadet BS-391733

Lever Ass'y.-Governor for 1/4" Dia. Crank

$

$

Not available

230

Cub Cadet BS-222450

Washer-Governor Lever (1/4" I.D.)
(Superseded to BS-691691)

$3.99

$

In Stock, Qty 5

0

232

Cub Cadet BS-261911

Spring-Governor Link

$12.99

$

Usually ships in 2-12 days

0

284

Cub Cadet BS-93804

Screw-Clamp Mtg.
(Superseded to 710-0432)

$

$

Not available

306

Cub Cadet BS-222830

Shield-Cylinder

$

$

Not available

307

Cub Cadet BS-93163

Screw-Cylinder Shield Mtg. Sem

$

$

Currently unavailable

308

Cub Cadet BS-222636

Cover-Cylinder Head

$

$

Currently unavailable

333

Cub Cadet BS-398811

Armature-Magneto

$63.99

$

In Stock, Qty 13

0

334

Cub Cadet BS-93381

Screw-Armature Mounting Sem

$

$

Not available

337

Cub Cadet BS-298809

Plug-Spark (11/2" high- 37-42 MM)

$

$

Currently unavailable

353

Cub Cadet BS-92791

Washer-Lock-Shakeproof
(Superseded to BS-691077)

$3.49

$

Usually ships in 2-12 days

0

354

Cub Cadet BS-90576

Nut-Hex-8-32
(Superseded to 712-0142)

$4.49

$

In Stock, Qty 12

0

356

Cub Cadet BS-398808

Wire-Ground

$11.99

$

In Stock, only 1 left!

0

358

Cub Cadet BS-299577

Gasket Set

$35.99

$

In Stock, only 4 left!

0

383

Cub Cadet BS-89838

Wrench-Spark Plug
(Superseded to BS-89838S)

$6.49

$

In Stock, Qty 5

0

422

Cub Cadet BS-222502

Clamp-Oil Filler Tube
(Superseded to BS-690593)

$11.99

$

In Stock, only 4 left!

0

520

Cub Cadet BS-93722

Terminal-Spade
(Superseded to BS-691084)

$6.49

$

In Stock, only 2 left!

0

523

Cub Cadet BS-391840

Cap and Dipstick-Oil Filler
(Superseded to BS-691387)

$16.99

$

Usually ships in 2-12 days

0

524

Cub Cadet BS-68838

Seal-Filler Tube
(Superseded to BS-281370S)

$8.49

$

In Stock, Qty 20+

0

525

Cub Cadet BS-280133

Tube-Oil Filler

$

$

Not available

552

Cub Cadet BS-231055

Bushing-Governor Crank (1/4 " I D )
(Superseded to BS-491986)

$

$

Not available

562

Cub Cadet BS-92613

Bolt-Governor Lever

$

$

Not available

592

Cub Cadet BS-231082

Nut-Hex. 10-24

$

$

Not available

614

Cub Cadet BS-93306

Cotter-Hair Pin

$

$

Not available

615

Cub Cadet BS-93307

Retainer-E-Ring

$5.99

$

In Stock, only 4 left!

0

635

Cub Cadet BS-66538

Elbow-Spark Plug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 19

0

663

Cub Cadet BS-93572

Screw
(Superseded to 710-0432)

$

$

Not available

741

Cub Cadet BS-261195

Gear-Timing

$17.99

$

Usually ships in 2-12 days

0

842

Cub Cadet BS-270920

Seal-Filler Cap
(Superseded to BS-691870)

$4.49

$

In Stock, only 3 left!

0

847

Cub Cadet BS-392066

Filler Group-Oil

$34.99

$

Usually ships in 2-12 days

0

851

Cub Cadet BS-221798

Terminal-Ignition Cable
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

869

Cub Cadet BS-211661

Seat-Intake Valve (Standard)

$

$

Not available

870

Cub Cadet BS-211661

Seat-Exhaust Valve (Standard)

$

$

Not available

871

Cub Cadet BS-231218

Guide-Exhaust or Intake Valve

$14.99

$

In Stock, only 2 left!

0

985

Cub Cadet BS-398525

Insulator Assembly
(Superseded to BS-691972)

$8.49

$

In Stock, Qty 6
