804 (137-517-100) - Cub Cadet Rear-Engine Riding Mower Engine (1987) B&S 8.0 HP-190707-0160-01 Part 1 Parts Diagram

Rear-Engine Riding Mower Engine

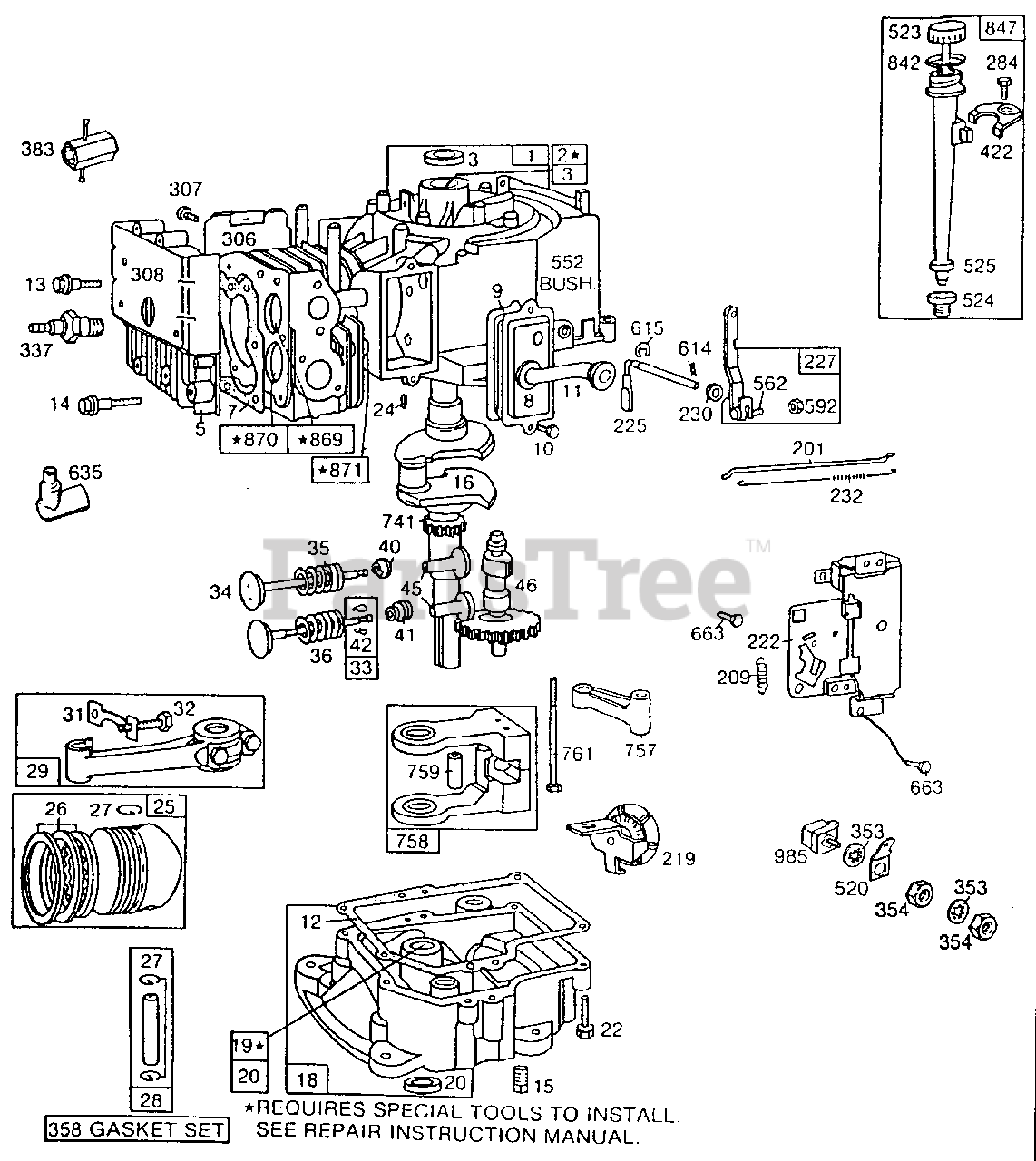

B&S 8.0 HP-190707-0160-01 Part 1 Parts Diagram

  • Title

1

Cub Cadet BS-397240

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-261960

Bushing-Cylinder

$

$

Not available

3

Cub Cadet BS-294606

Seal-Oil

$

$

Not available

5

Cub Cadet BS-212286

Head-Cylinder

$

$

Currently unavailable

7

Cub Cadet BS-270430

Gasket-Cylinder Head
(Superseded to BS-272163S)

Note: (Included in Gasket Set-Part No. 299577)

$8.49

$

In Stock, Qty 8

0

8

Cub Cadet BS-391406

Breather Assembly
(Superseded to BS-495735)

$49.99

$

In Stock, only 2 left!

0

9

Cub Cadet BS-27803

Gasket-Valve Cover
(Superseded to BS-27803S)

Note: (Included in Gasket Set-Part No. 299577)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet BS-93394

Screw-Sem
(Superseded to BS-691666)

$4.49

$

In Stock, only 3 left!

0

11

Cub Cadet BS-280005

Tube-Breather
(Superseded to BS-692293)

$11.99

$

In Stock, Qty 6

0

12

Cub Cadet BS-27750

Gasket-Crankcase Cover-1/64" Thick
(Superseded to BS-692221)

Note: (Included in Gasket Set-Part No. 299577)

$9.49

$

In Stock, only 2 left!

0

Cub Cadet BS-27876

Gasket-Crankcase Cover-.005" Thick

Note: (Included in Gasket Set-Part No. 299577)

$

$

Not available

Cub Cadet BS-27877

Gasket-Crankcase Cover-.009" Thick

Note: (Included in Gasket Set-Part No. 299577)

$11.99

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-93211

Screw-Cylinder Head (2-21/32" Long)

$

$

Not available

14

Cub Cadet BS-93723

Screw-Cylinder Head (3" Long)

$

$

Not available

15

Cub Cadet BS-91084

Plug-Oil Drain
(Superseded to BS-690946)

$6.49

$

In Stock, only 2 left!

0

16

Cub Cadet BS-396876

Crankshaft

$

$

Currently unavailable

18

Cub Cadet BS-392548

Base-Oil

$

$

Not available

19

Cub Cadet BS-295963

Bushing-Oil Base

$

$

Not available

20

Cub Cadet BS-391086

Seal-Oil
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

22

Cub Cadet BS-93585

Screw-Base Mounting Sem

$

$

Not available

24

Cub Cadet BS-222698

Key-Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-393868

Piston Assembly-Standard

$

$

Not available

Cub Cadet BS-393869

Piston Assembly-.010" O.S.

$

$

Not available

Cub Cadet BS-393879

Piston Assembly-.020" O.S.

$

$

Currently unavailable

Cub Cadet BS-393880

Piston Assembly-.030" O.S.

$

$

Currently unavailable

26

Cub Cadet BS-393882

Ring Set-Piston-Standard

$

$

Not available

Cub Cadet BS-393882

Ring Set-Piston-.010" O.S.

$

$

Not available

Cub Cadet BS-393883

Ring Set-Piston-.020" O.S.

$

$

Currently unavailable

Cub Cadet BS-393884

Ring Set-Piston-.030" O.S.

$

$

Currently unavailable

27

Cub Cadet BS-68546

Lock-Piston Pin

$

$

Not available

28

Cub Cadet BS-295840

Pin Assembly-Piston- Standard

$

$

Not available

Cub Cadet BS-295841

Pin Assembly-Piston-.005" O.S.

$

$

Not available

29

Cub Cadet BS-390402

Rod Ass'y.-Connecting

$92.99

$

Usually ships in 2-12 days

0

31

Cub Cadet BS-222114

Lock-Connecting Rod Screw

$

$

Not available

32

Cub Cadet BS-92659

Screw-Connecting Rod

$

$

Currently unavailable

33

Cub Cadet BS-390420

Valve-Exhaust

$

$

Not available

34

Cub Cadet BS-261055

Valve-Intake
(Superseded to BS-261055S)

$36.99

$

In Stock, only 2 left!

0

35

Cub Cadet BS-65906

Spring-Intake Valve

$

$

Not available

36

Cub Cadet BS-26828

Spring-Exhaust Valve

$

$

Not available

40

Cub Cadet BS-221596

Retainer-Intake Valve
(Superseded to BS-690656)

$

$

Not available

41

Cub Cadet BS-292260

Rotocoil-Exhaust Valve
(Superseded to BS-691939)

$29.99

$

In Stock, only 3 left!

0

42

Cub Cadet BS-93630

Retainer-Exhaust Valve Rotocoil
(Superseded to BS-494553)

$8.49

$

In Stock, only 3 left!

0

45

Cub Cadet BS-260933

Tappet-Valve

$

$

Not available

46

Cub Cadet BS-211689

Gear-Cam

$

$

Not available

201

Cub Cadet BS-261611

Link-Governor

$23.99

$

Usually ships in 2-12 days

0

209

Cub Cadet BS-261306

Spring-Governor
(Superseded to BS-792813)

$7.49

$

In Stock, Qty 20+

0

219

Cub Cadet BS-392718

Oil Slinger, Gov. Gear and Bracket Assembly

$

$

Not available

222

Cub Cadet BS-390746

Plate-Gov. Control

$

$

Not available

225

Cub Cadet BS-231058

Crank-Governor (1/4" Dia.)
(Superseded to BS-692012)

$15.99

$

In Stock, only 2 left!

0

227

Cub Cadet BS-391733

Lever Ass'y.-Governor For 1/4" Dia. Crank

$

$

Not available

230

Cub Cadet BS-222450

Washer-Gov. Lever (1/4" I.D.)
(Superseded to BS-691691)

$4.49

$

In Stock, Qty 5

0

232

Cub Cadet BS-261911

Spring-Governor Link

$

$

Not available

284

Cub Cadet BS-93572

Screw-Clamp Mtg.
(Superseded to 710-0432)

$

$

Not available

306

Cub Cadet BS-222830

Shield-Cylinder

$

$

Not available

307

Cub Cadet BS-93163

Screw-Cylinder Shield Mtg. Sem

$

$

Currently unavailable

308

Cub Cadet BS-222636

Cover-Cylinder Head

$

$

Currently unavailable

337

Cub Cadet BS-392918

Plug-Spark (1-1/2" High-37 MM)

$

$

Currently unavailable

353

Cub Cadet BS-92791

Washer-Lock-Shakeproof
(Superseded to BS-691077)

$3.99

$

Usually ships in 2-12 days

0

354

Cub Cadet BS-90576

Nut-Hex.
(Superseded to 712-0142)

$4.99

$

In Stock, only 3 left!

0

358

Cub Cadet BS-299577

Gasket Set

$37.99

$

In Stock, only 3 left!

0

383

Cub Cadet BS-89838

Wrench-Spark Plug
(Superseded to BS-89838S)

$6.49

$

In Stock, only 2 left!

0

422

Cub Cadet BS-223394

Clamp-Oil Filler Tube
(Superseded to BS-690593)

$12.99

$

In Stock, only 1 left!

0

520

Cub Cadet BS-93722

Terminal-Spade
(Superseded to BS-691084)

$6.99

$

Usually ships in 2-12 days

0

523

Cub Cadet BS-391840

Cap and Dipstick-Oil Filler
(Superseded to BS-691387)

$17.99

$

Usually ships in 2-12 days

0

524

Cub Cadet BS-68838

Seal-Filler Tube
(Superseded to BS-281370S)

$8.99

$

In Stock, Qty 20+

0

525

Cub Cadet BS-280133

Tube-Oil Filler

$

$

Not available

552

Cub Cadet BS-231055

Bushing-Gov. Crank (1/4" I.D.)
(Superseded to BS-491986)

$

$

Not available

562

Cub Cadet BS-92613

Bolt-Governor Lever

$

$

Not available

592

Cub Cadet BS-231082

Nut-Hex. 10-24

$

$

Not available

614

Cub Cadet BS-93306

Cotter-Hair Pin

$

$

Not available

615

Cub Cadet BS-93307

Retainer-E-Ring

$6.49

$

In Stock, only 3 left!

0

635

Cub Cadet BS-66538

Elbow-Spark Plug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 20+

0

663

Cub Cadet BS-93572

Screw
(Superseded to 710-0432)

$

$

Not available

741

Cub Cadet BS-261195

Gear-Timing

$17.99

$

Usually ships in 2-12 days

0

757

Cub Cadet BS-212359

Link-Counterweight

$

$

Not available

758

Cub Cadet BS-390172

Counterweight Ass'y.

$

$

Currently unavailable

759

Cub Cadet BS-298909

Pin-Counterweight

$9.99

$

In Stock, only 2 left!

0

761

Cub Cadet BS-93874

Screw-Counterweight

$

$

Currently unavailable

842

Cub Cadet BS-270920

Seal-Filler Cap
(Superseded to BS-691870)

$4.49

$

In Stock, only 1 left!

0

847

Cub Cadet BS-392066

Filler Group-Oil

$

$

Not available

869

Cub Cadet BS-211661

Seat-Intake Valve (Standard)

$

$

Not available

870

Cub Cadet BS-211661

Seat-Exhaust Valve (Standard)

$

$

Not available

871

Cub Cadet BS-261961

Guide-Exhaust Valve

$15.99

$

Usually ships in 2-12 days

0

985

Cub Cadet BS-398525

Insulator Assembly
(Superseded to BS-691972)

$9.49

$

In Stock, only 2 left!

0
