804 (137-517-100) - Cub Cadet Rear-Engine Riding Mower Engine (1987) B&S 8.0 HP-190707-0160-01 Part 2 Parts Diagram

Rear-Engine Riding Mower Engine

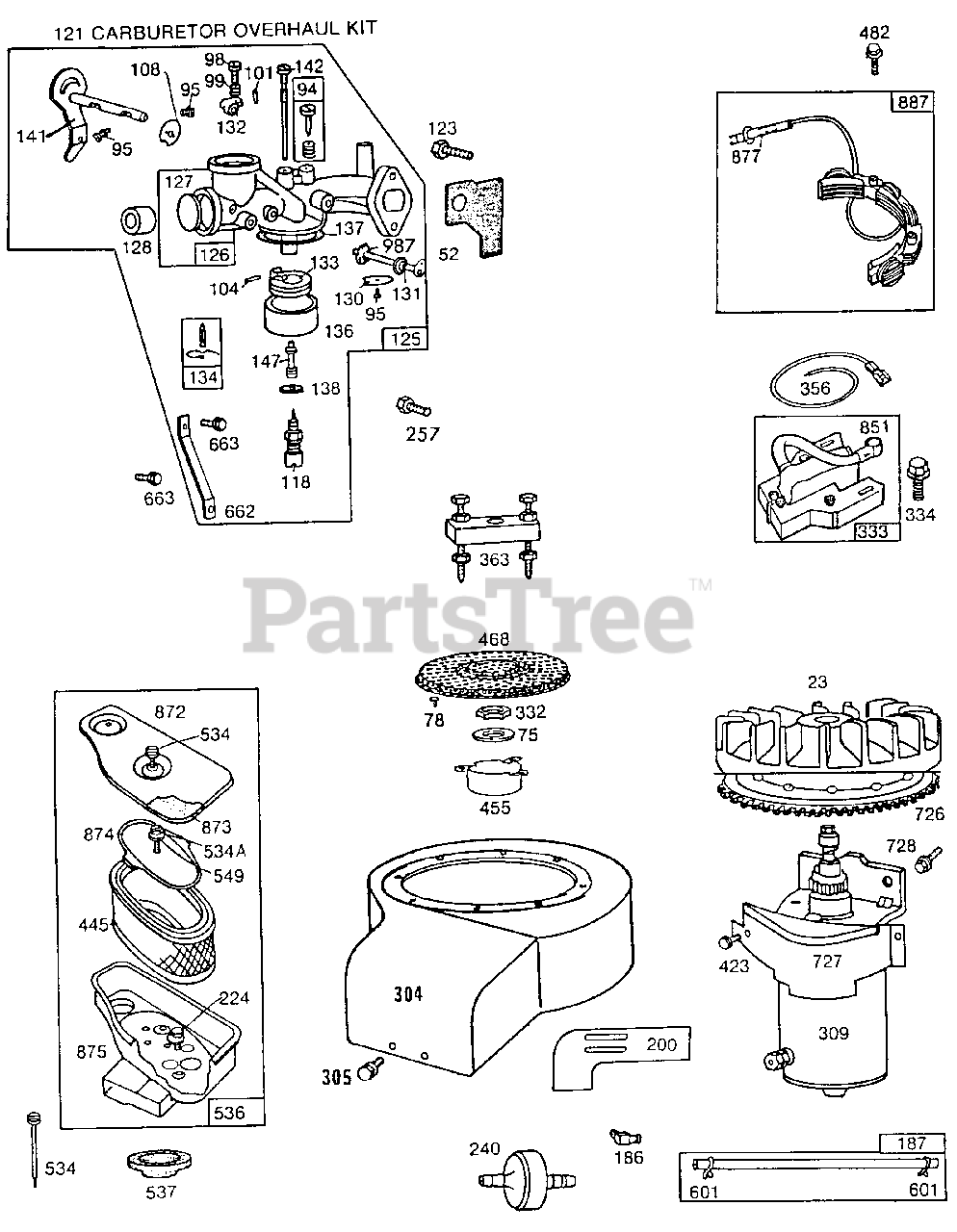

B&S 8.0 HP-190707-0160-01 Part 2 Parts Diagram

  • Title

23

Cub Cadet BS-391983

Flywheel and Ring Gear Ass'y.-Magneto.

Note: For use on engines with alternator. (Includes aluminum ring gear.)

$

$

Not available

52

Cub Cadet BS-270824

Gasket-Carburetor Mounting
(Superseded to BS-272554S)

Note: (Included in Gasket Set-Part No. 299577)

$5.49

$

In Stock, Qty 20+

0

75

Cub Cadet BS-220865

Washer-Spring

$

$

Currently unavailable

78

Cub Cadet BS-93805

Screw-Sem
(Superseded to BS-691655)

$3.99

$

Usually ships in 2-12 days

0

94

Cub Cadet BS-292681

Valve Assembly-Carburetor Idle

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$11.99

$

In Stock, only 1 left!

0

95

Cub Cadet BS-93499

Screw-Throttle and Choke Valve Mtg. Sem
(Superseded to BS-691437)

$3.99

$

In Stock, only 2 left!

0

98

Cub Cadet BS-91920

Screw-Machine, Fill. Hd. 8-32 x 518"

$

$

Currently unavailable

99

Cub Cadet BS-26157

Spring-Throttle Adjustment
(Superseded to BS-691591)

$8.99

$

Usually ships in 2-12 days

0

101

Cub Cadet BS-93043

Pin-Throttle Stop

$

$

Not available

104

Cub Cadet BS-230896

Pin-Float Hinge

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Not available

108

Cub Cadet BS-222010

Valve-Choke

$7.99

$

In Stock, only 1 left!

0

118

Cub Cadet BS-396568

Valve-Needle

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$20.99

$

In Stock, only 1 left!

0

121

Cub Cadet BS-394698

Carburetor Overhaul Kit

$32.99

$

In Stock, Qty 6

0

123

Cub Cadet BS-93357

Screw-Carburetor Mtg.

$

$

Not available

125

Cub Cadet BS-390411

Carburetor Assembly

$

$

Not available

126

Cub Cadet BS-299851

Body Assembly Carburetor

$94.99

$

Usually ships in 2-12 days

0

127

Cub Cadet BS-221997

Plug-Welch

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$4.99

$

In Stock, only 1 left!

0

128

Cub Cadet BS-211682

Venturi-Carburetor

$

$

Currently unavailable

130

Cub Cadet BS-221986

Valve-Throttle

$

$

Currently unavailable

131

Cub Cadet BS-490017

Shaft and Lever-Throttle
(Superseded to BS-491006)

$21.99

$

In Stock, only 2 left!

0

132

Cub Cadet BS-211712

Stop-Throttle
(Superseded to BS-691708)

$8.99

$

Usually ships in 2-12 days

0

133

Cub Cadet BS-299707

Float-Carburetor

$13.99

$

In Stock, Qty 8

0

134

Cub Cadet BS-394681

Valve-Fuel Inlet

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$7.99

$

In Stock, Qty 16

0

136

Cub Cadet BS-221995

Bowl-Float

$8.99

$

In Stock, only 4 left!

0

137

Cub Cadet BS-270511

Gasket-Float Bowl

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$3.49

$

In Stock, Qty 10

0

138

Cub Cadet BS-222014

Washer-Float Bowl
(Superseded to BS-690618)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$4.99

$

In Stock, Qty 11

0

141

Cub Cadet BS-299647

Shaft and Lever-Manual Choke

$16.99

$

Usually ships in 2-12 days

0

142

Cub Cadet BS-299740

Nozzle-Carburetor

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$15.99

$

In Stock, only 2 left!

0

147

Cub Cadet BS-231323

Screw-Nozzle

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$24.99

$

Usually ships in 2-12 days

0

186

Cub Cadet BS-67218

Connector-Fuel Pipe

$

$

Not available

187

Cub Cadet BS-393815

Pipe-Fuel

$11.99

$

In Stock, only 1 left!

0

200

Cub Cadet BS-221760

Guide-Air

$

$

Not available

224

Cub Cadet BS-94018

Screw-Sem
(Superseded to BS-690859)

$3.99

$

In Stock, Qty 9

0

240

Cub Cadet BS-298090

Filter-Fuel
(Superseded to BS-298090S)

$5.49

$

In Stock, Qty 20+

0

257

Cub Cadet BS-93543

Screw-Hex Hd.

$

$

Not available

304

Cub Cadet BS-391379

Housing-Blower

$

$

Not available

305

Cub Cadet BS-93158

Screw-Blower Housing Mounting Sem

$

$

Not available

309

Motor-Starting (12 Volt)

$

$

Not available

332

Cub Cadet BS-92284

Nut-Flywheel
(Superseded to 712-3056)

$4.49

$

In Stock, Qty 11

0

333

Cub Cadet BS-398811

Armature Assembly

$63.99

$

In Stock, Qty 12

0

334

Cub Cadet BS-93381

Screw-Armature Mounting Sem

$

$

Not available

356

Cub Cadet BS-398808

Wire-Ground

$11.99

$

In Stock, only 1 left!

0

363

Cub Cadet BS-19165

Puller-Flywheel

$25.99

$

Usually ships in 2-12 days

0

423

UNKNOWN

$

$

Not available

445

Cub Cadet BS-393406

Cartridge-Air Cleaner

$19.99

$

Usually ships in 2-12 days

0

455

Cub Cadet BS-222561

Cup-Screen Mounting

$

$

Not available

468

Cub Cadet BS-222562

Screen-Flush Rotating
(Superseded to BS-691748)

$232.99

$

In Stock, only 1 left!

0

482

Cub Cadet BS-93621

Screw-Sem
(Superseded to BS-691183)

$

$

Not available

534

Cub Cadet BS-93323

Screw-Air Cleaner

$7.49

$

In Stock, only 3 left!

0

534A

Cub Cadet BS-93913

Screw-Air Cleaner

$3.99

$

In Stock, only 1 left!

0

536

Cub Cadet BS-393481

Cleaner Ass'y.-Air

$

$

Currently unavailable

537

Cub Cadet BS-270539

Gasket-Air Cleaner

$8.99

$

Usually ships in 2-12 days

0

549

Cub Cadet BS-270978

Washer-Air Cleaner

$5.49

$

Usually ships in 2-12 days

0

601

Cub Cadet BS-93053

Clamp-Fuel Pipe
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

662

Cub Cadet BS-222027

Bracket-Carburetor

$

$

Not available

663

Cub Cadet BS-93572

Screw
(Superseded to 710-0432)

$

$

Not available

726

Cub Cadet BS-392134

Gear-Ring (Aluminum)-(Includes Mtg. Parts)
(Superseded to BS-696537)

$50.99

$

Usually ships in 2-12 days

0

727

Cub Cadet BS-395405

Cover-Starter (Includes Mounting Screws)

$

$

Not available

728

Cub Cadet BS-93523

Screw-Sem

$

$

Not available

851

Cub Cadet BS-221798

Terminal-Ignition Cable
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

872

Cub Cadet BS-397981

Cover-Air Cleaner

$20.99

$

Usually ships in 2-12 days

0

873

Cub Cadet BS-397972

Gasket-Air Cleaner Cover

$

$

Currently unavailable

874

Cub Cadet BS-222898

Plate-Air Cleaner Cartridge

$21.99

$

In Stock, only 1 left!

0

875

Cub Cadet BS-397320

Body-Air Cleaner

$

$

Currently unavailable

877

Cub Cadet BS-393814

Diode and Connector Ass'y. (Dual Circuit)

$18.99

$

In Stock, only 2 left!

0

887

Cub Cadet BS-391529

Stator Assembly-Alternator (D.C.)
(Superseded to BS-696578)

$124.99

$

Usually ships in 2-12 days

0

987

Cub Cadet BS-398970

Lip Seal
(Superseded to BS-692279)

$3.99

$

In Stock, only 1 left!

0
