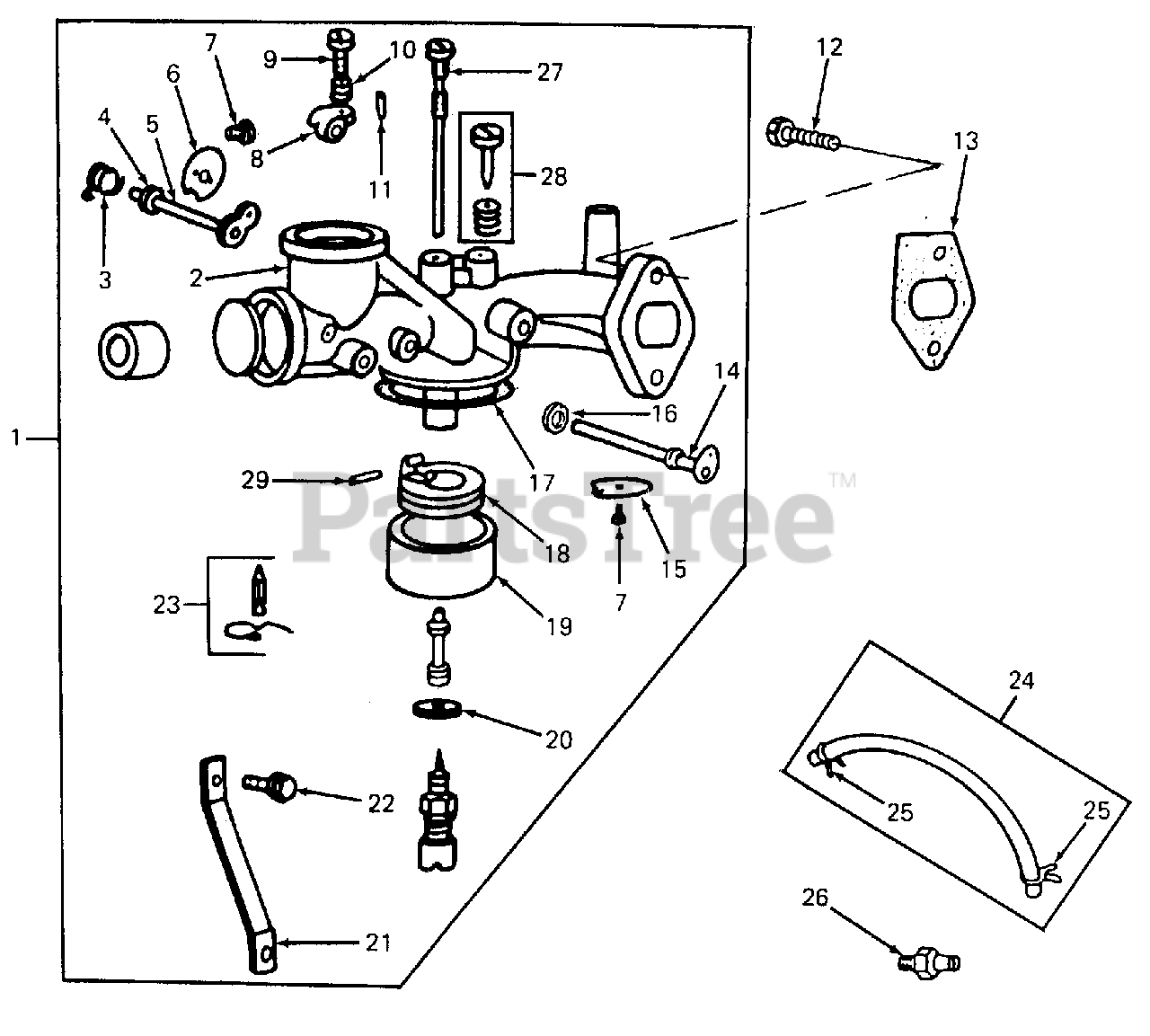

805 (135-192-399) - Cub Cadet Lawn Tractor Carburetor Parts Diagram

Lawn Tractor

Carburetor Parts Diagram

  • Title

1

Cub Cadet BS-394042

Carburetor Assembly

$

$

Not available

2

Cub Cadet BS-394041

Body Assembly

$

$

Currently unavailable

Cub Cadet BS-221997

Plug, Welch

$4.99

$

In Stock, only 1 left!

0

3

Cub Cadet BS-261116

Spring, Choke Return

$7.99

$

Usually ships in 2-12 days

0

4

Cub Cadet BS-270382

Washer, Choke Shaft
(Superseded to BS-691869)

$3.99

$

In Stock, only 4 left!

0

5

Cub Cadet BS-390684

Shaft & Lever, Choke

$16.99

$

Usually ships in 2-12 days

0

6

Cub Cadet BS-222010

Valve, Choke

$7.99

$

In Stock, only 1 left!

0

7

Cub Cadet BS-93499

Screw, Throttle & Choke Valve Mtg Stem
(Superseded to BS-691437)

$3.99

$

In Stock, only 2 left!

0

8

Cub Cadet BS-211712

Stop, Throttle
(Superseded to BS-691708)

$8.99

$

Usually ships in 2-12 days

0

9

Cub Cadet BS-91920

Screw, Machine Fill Hd 8-32 X 5/8

$

$

Currently unavailable

10

Cub Cadet BS-26157

Spring, Throttle Adjustment
(Superseded to BS-691591)

$8.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-93043

Pin, Throttle Stop

$

$

Not available

12

Cub Cadet BS-93357

Screw, Carburetor Mtg

$

$

Not available

13

Cub Cadet BS-270824

Gasket, Carburetor Mtg
(Superseded to BS-272554S)

$5.49

$

In Stock, Qty 20+

0

14

Cub Cadet BS-490017

Shaft & Lever, Throttle
(Superseded to BS-491006)

$21.99

$

In Stock, only 2 left!

0

15

Cub Cadet BS-221986

Valve, Throttle

$

$

Currently unavailable

16

Cub Cadet BS-398970

Lip, Seal
(Superseded to BS-692279)

$3.99

$

In Stock, only 1 left!

0

17

Cub Cadet BS-270511

Gasket, Float Bowl

$3.49

$

In Stock, Qty 10

0

18

Cub Cadet BS-299707

Float, Carburetor

$13.99

$

In Stock, Qty 8

0

19

Cub Cadet BS-221995

Float, Bowl

$8.99

$

In Stock, only 4 left!

0

20

Cub Cadet BS-222014

Washer, Float Bowl
(Superseded to BS-690618)

$4.99

$

In Stock, Qty 11

0

21

Cub Cadet BS-222027

Bracket, Carburetor

$

$

Not available

22

Cub Cadet 710-0432

Screw, Bracket Carburetor

$

$

Not available

23

Cub Cadet BS-394683

Valve, Fuel Inlet

$12.99

$

In Stock, Qty 6

0

24

Cub Cadet BS-394045

Line, Vent (Includes Ref No. 25 [2])

$

$

Not available

25

Cub Cadet BS-93053

Clamp, Line Vent
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

26

Cub Cadet BS-230318

Connector, Fuel Pipe

$

$

Not available

27

Cub Cadet BS-299740

Carburetor Nozzle

$15.99

$

In Stock, only 2 left!

0

28

Cub Cadet BS-292681

Idle Valve Assy

$11.99

$

In Stock, only 1 left!

0

29

Cub Cadet BS-230896

Float Pin

$

$

Not available

Cub Cadet 759-3351

8 HP Carburetor Overhaul Kit

$

$

Not available

Cub Cadet BS-270824

Carburetor Mounting Gasket
(Superseded to BS-272554S)

$5.49

$

In Stock, Qty 20+

0

Cub Cadet BS-270511

Float Bowl Gasket

$3.49

$

In Stock, Qty 10

0

Cub Cadet BS-394683

Inlet Fuel Valve

$12.99

$

In Stock, Qty 6

0

Cub Cadet BS-222014

Float Bowl Washer Nozzle Screw
(Superseded to BS-690618)

Note: (Not Serviced Separately) Needle Valve

$4.99

$

In Stock, Qty 11

0

Cub Cadet BS-299740

Carburetor Nozzle

$15.99

$

In Stock, only 2 left!

0

Cub Cadet BS-292681

Idle Valve Assy

$11.99

$

In Stock, only 1 left!

0

Cub Cadet BS-230896

Float Pin

$

$

Not available
