805 (136-192-100) - Cub Cadet Lawn Tractor Pedestal, Engine Controls & Instrument Panel Parts Diagram

Lawn Tractor

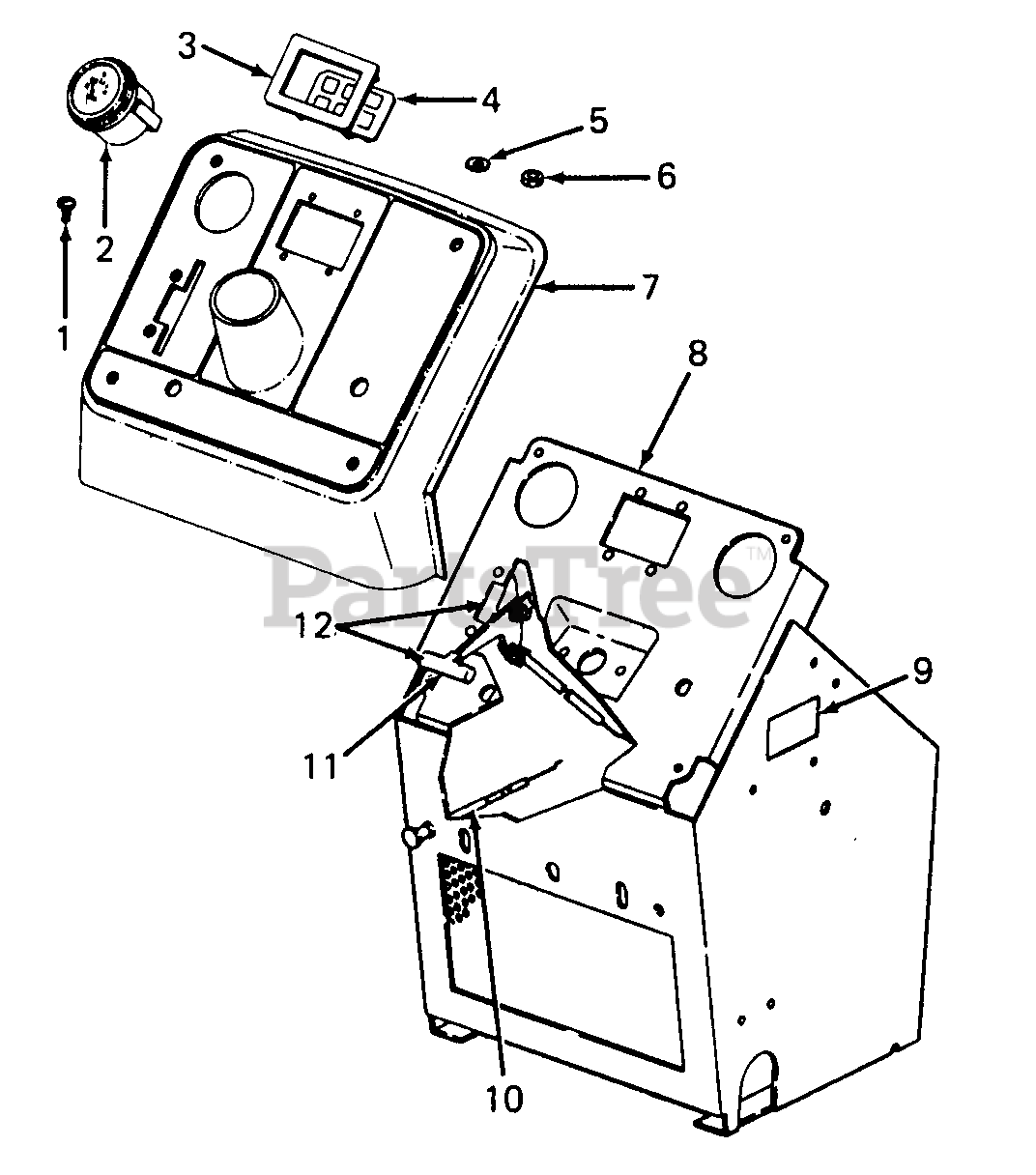

Pedestal, Engine Controls & Instrument Panel Parts Diagram

  • Title

1

Cub Cadet 710-3009

Screw, 10-24 X 3/4 Pan-Hd. Cutting

$7.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 725-3023

Indicator, Charge
(Superseded to 925-3141)

$66.99

$

In Stock, only 3 left!

0

3

Cub Cadet 731-3049

Bezel, Light

$

$

Not available

4

Cub Cadet 779-3293

Label, Indicator

$

$

Not available

5

Cub Cadet 735-0640

Washer, .18 X .50 X. 06 Rubber

$

$

Not available

6

Cub Cadet 712-3060

Nut, Self-Threading Pal

$

$

Not available

7

Cub Cadet 731-3047

Panel, Instrument

$65.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-1194

Pedestal

$

$

Not available

Cub Cadet 710-3005

Bolt, 3/8-16 X 1.25 GR 5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 726-3028

Retainer, Push-on Bolt
(Superseded to 926-3028)

$

$

Not available

9

Cub Cadet 779-3296

Label, Battery Booster

$8.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 746-3017

Control, Choke

$

$

Not available

11

Cub Cadet 720-3018

Knob, Throttle Control
(Superseded to 731-0108)

$9.99

$

In Stock, Qty 6

0

12

Cub Cadet 746-3015

Control, Throttle
(Superseded to 746-3002)

Note: (Includes Ref. No. 11)

$72.99

$

In Stock, only 2 left!

0

Cub Cadet 710-3009

Screw, 10-24 X 3/4 Pan-Hd. Cutting

$7.99

$

Usually ships in 3-6 days

0
