805 (316-805-100) - Cub Cadet 26" Snow Thrower (1986) Snow Thrower Part 1 Parts Diagram

26" Snow Thrower

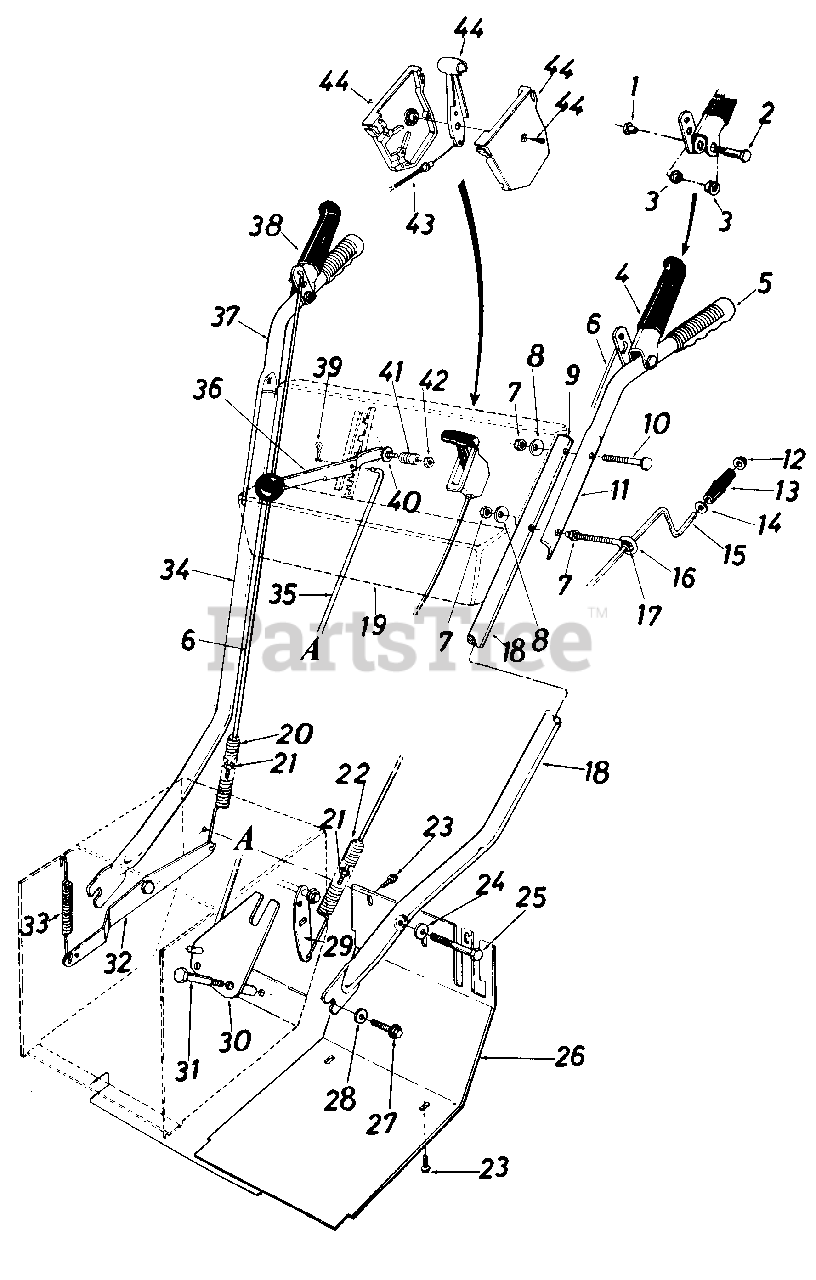

Snow Thrower Part 1 Parts Diagram

  • Title

1

Cub Cadet 738-0561

Shld. Nut 1/4-20 Thd.
(Superseded to 938-0561)

$9.49

$

In Stock, only 1 left!

0

2

Cub Cadet 738-0560

Shld. Bolt .374 Dia. x 1.53" Lg.
(Superseded to 938-0560)

$9.99

$

In Stock, only 2 left!

0

3

Cub Cadet 741-0402

Hex Flange Plastic Bearing .38" I.D.

$

$

Not available

4

Cub Cadet 05987

Clutch Grip Ass'y.-L.H.

$

$

Currently unavailable

5

Cub Cadet 720-0180

Grip
(Superseded to 720-04083)

$13.99

$

In Stock, only 3 left!

0

6

Cub Cadet 747-0461

Lockout Rod

$

$

Not available

7

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 736-0242

Bell-Wash. .34" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 731-0496

Plastic Plug

$

$

Not available

10

Cub Cadet 710-0487

Curved Carriage Bolt 5/16-18 x 2.0" Lg.

$6.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 749-0593

Upper Handle-L.H.

$

$

Not available

12

Cub Cadet 726-0100

Push Nut 3/8" Rod

$3.99

$

In Stock, Qty 7

0

13

Cub Cadet 720-0171

Knob 3/8" Rod
(Superseded to 920-0171)

$14.99

$

In Stock, only 1 left!

0

14

Cub Cadet 736-0140

Fl-Wash. .40" I.D. x .62" O.D.

$6.99

$

In Stock, Qty 9

0

15

Cub Cadet 05981

Chute Crank Ass'y.

$

$

Not available

16

Cub Cadet 747-0416

Eye Bolt 5/16-18 x 5.0" Lg.

$

$

Not available

17

Cub Cadet 735-0218

Grommet
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 749-0341

Lower Handle-L.H.

$

$

Currently unavailable

19

Cub Cadet 784-5000

Handle Panel Ass'y.

Note: Color Code 499

$

$

Currently unavailable

20

Cub Cadet 732-0463

Extension Spring .75" O.D. x 5.0" Lg.
(Superseded to 732-0463A)

$17.99

$

In Stock, only 1 left!

0

21

Cub Cadet 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.49

$

In Stock, Qty 20+

0

22

Cub Cadet 732-0184

Extension Spring .75" O.D. x 5.0" Lg.

$23.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 710-0600

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 736-0105

Bell-Wash. .40" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 710-0427

Hex Bolt 3/8-16 x 2.0" Lg.*
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 784-5131

Frame Cover

Note: Color Code 499

$

$

Currently unavailable

27

Cub Cadet 710-0555

Pilot Hex Scr. 3/8-16 x .88" Lg.
(Superseded to 710-0216)

$3.99

$

In Stock, Qty 17

0

28

Cub Cadet 736-0105

Bell-Wash. .40" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 05500

Drive Clutch Brkt. Ass'y.

$

$

Currently unavailable

30

Cub Cadet 784-5133

Shifting Linkage Brkt. Ass'y.

Variations

Cub Cadet 784-5133-0637

BRACKET ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

31

Cub Cadet 738-0129

Shld. Bolt .498 Dia. x 2.0" Lg.

$10.99

$

In Stock, only 1 left!

0

32

Cub Cadet 05518

Auger Clutch Brkt.

$

$

Not available

33

Cub Cadet 732-0303

Extension Spring 38" O.D. x 3.18" Lg.
(Superseded to 932-0303)

$9.49

$

In Stock, Qty 14

0

34

Cub Cadet 749-0342

Lower Handle-R.H.

$

$

Currently unavailable

35

Cub Cadet 747-0356

Shifting Rod

$

$

Not available

36

Cub Cadet 05694

Shift Handle Ass'y.

$

$

Not available

37

Cub Cadet 749-0594

Upper Handle-R.H.

$

$

Not available

38

Cub Cadet 05988

Clutch Grip Ass'y.-R.H.

$

$

Not available

39

Cub Cadet 714-0104

Int. Cotter Pin 5/16" Dia.

$3.99

$

In Stock, Qty 20+

0

40

Cub Cadet 736-0105

Bell-Wash. 40" l.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet 732-0193

Compression Spring

$4.49

$

In Stock, Qty 8

0

42

Cub Cadet 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 7

0

43

Cub Cadet 746-0500

Throttle Wire 26"-Black
(Superseded to 946-0500)

$14.99

$

In Stock, only 4 left!

0

44

Cub Cadet 831-0692

Throttle Control Box Ass'y.
(Superseded to 831-0796A)

$20.99

$

In Stock, Qty 14

0
