805 (805314) - Cub Cadet 26" Snow Thrower (1984) Frame Cover, Handles And Clutch Grip Assemblies Parts Diagram

26" Snow Thrower

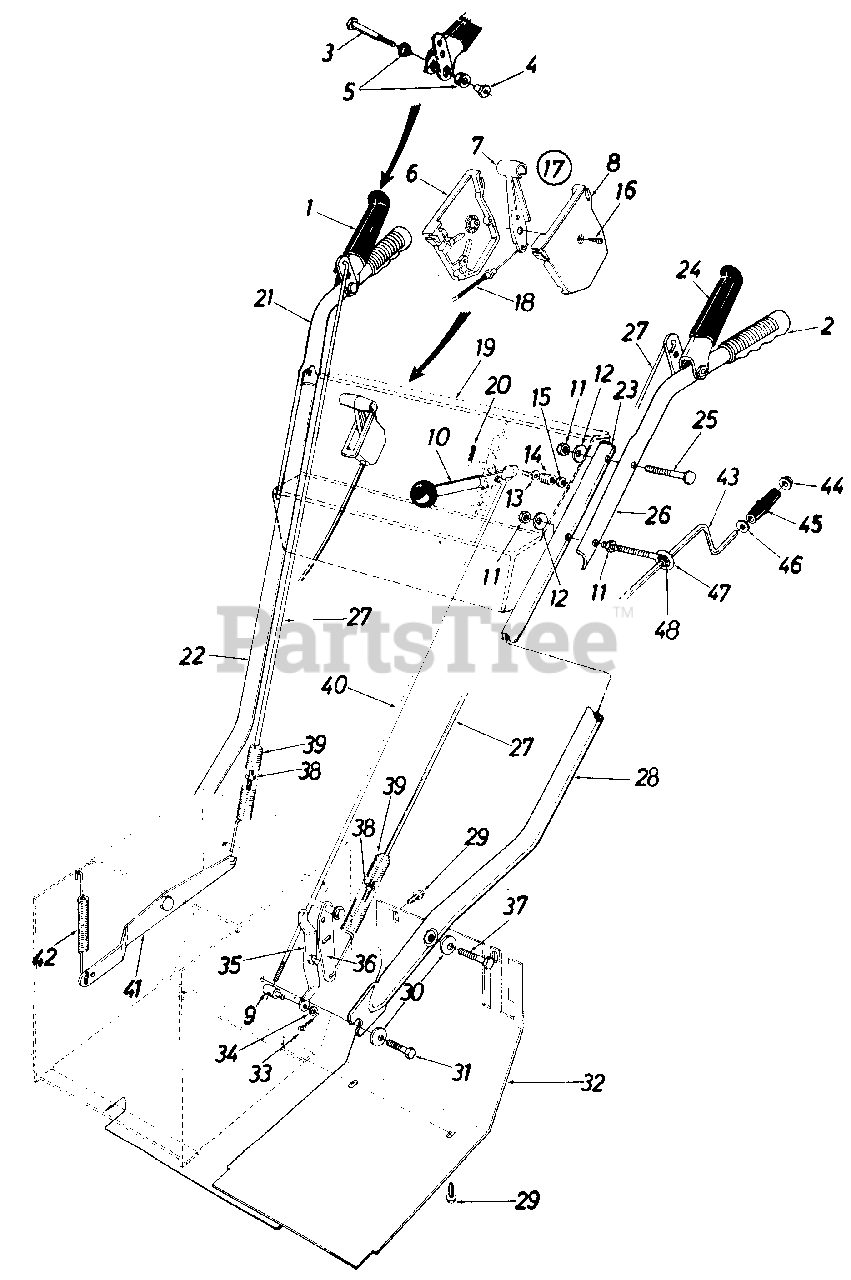

Frame Cover, Handles And Clutch Grip Assemblies Parts Diagram

  • Title

1

Cub Cadet 05988

Clutch Grip Ass'y. - R.H.

$

$

Not available

2

Cub Cadet 720-0180

Grip
(Superseded to 720-04083)

$11.95

$

In Stock, Qty 10

0

3

Cub Cadet 738-0560

Shoulder Bolt .374 Dia. x 1.53" Lg.
(Superseded to 938-0560)

$8.37

$

In Stock, only 2 left!

0

4

Cub Cadet 738-0561

Shld. Nut 1/4-20 Thd.
(Superseded to 938-0561)

$8.53

$

In Stock, Qty 5

0

5

Cub Cadet 741-0402

Hex Flange Plastic Bearing .38" I.D.

$

$

Not available

6

Part of Ref. No. 17

$

$

Not available

7

Part of Ref. No. 17

$

$

Not available

8

Part of Ref. No. 17

$

$

Not available

9

Cub Cadet 711-0677

Adjustment Ferrule
(Superseded to 911-0677)

$14.37

$

Usually ships in 5-10 days

0

10

Cub Cadet 05694

Shift Handle Ass'y.

$

$

Not available

11

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$3.58

$

In Stock, Qty 20+

0

12

Cub Cadet 736-0242

Bell-Wash. .34" I.D. x .88" O.D.

$3.45

$

In Stock, Qty 20+

0

13

Cub Cadet 736-0105

Bell-Wash. .40" I.D. x .88" O.D.

$3.62

$

In Stock, Qty 20+

0

14

Cub Cadet 732-0193

Compression Spring

$3.79

$

In Stock, Qty 6

0

15

Cub Cadet 712-0116

Hex Ins. L-Nut 3/8-24 Thd.
(Superseded to 912-0116)

$

$

Not available

16

Part of Ref. No. 17

$

$

Not available

17

Cub Cadet 831-0692

Throttle Control Box Ass'y.
(Superseded to 831-0796A)

$18.58

$

In Stock, Qty 13

0

18

Cub Cadet 746-0500

Throttle Control Wire
(Superseded to 946-0500)

$12.63

$

In Stock, Qty 5

0

19

Cub Cadet 784-5002

Handle Panel Ass'y.

$

$

Currently unavailable

20

Cub Cadet 714-0104

Int. Cotter Pin 5/16" Dia.
(Superseded to 914-0104)

$3.56

$

In Stock, Qty 20+

0

21

Cub Cadet 749-0594

Upper Handle - R.H.

$

$

Not available

22

Cub Cadet 749-0342

Lower Handle - R.H.

$

$

Currently unavailable

23

Cub Cadet 731-0496

Plastic Plug

$

$

Not available

24

Cub Cadet 05987

Clutch Grip Ass'y. - L.H.

$

$

Currently unavailable

25

Cub Cadet 710-0487

Carriage Bolt 5/16-18 x 2.0" Lg.

$5.68

$

Usually ships in 5-10 days

0

26

Cub Cadet 749-0593

Upper Handle - L.H.

$

$

Not available

27

Cub Cadet 747-0461

Lockout Rod

$

$

Not available

28

Cub Cadet 749-0341

Lower Handle - L.H.

$

$

Currently unavailable

29

Cub Cadet 710-0600

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg.

$2.90

$

In Stock, only 2 left!

0

30

Cub Cadet 736-0105

Bell-Wash. .40" I.D. x .88" O.D.

$3.62

$

In Stock, Qty 20+

0

31

Cub Cadet 710-0555

Pilot Hex Scr. 3/8-16 x .88" Lg.
(Superseded to 710-0216)

$3.59

$

In Stock, Qty 20+

0

32

Cub Cadet 05517

Frame Cover

$

$

Currently unavailable

33

Cub Cadet 714-0507

Cotter Pin, 3/32" Dia.
(Superseded to 914-0507)

$3.63

$

In Stock, Qty 14

0

34

Cub Cadet 736-0264

Fl-Wash. .345 I.D. x .62 O.D. x .06
(Superseded to 936-0264)

$5.52

$

In Stock, Qty 16

0

35

Cub Cadet 05522

Shifting Linkage Brkt.

$

$

Not available

36

Cub Cadet 05500

Drive Clutch Brkt. Ass'y.

$

$

Currently unavailable

37

Cub Cadet 710-0427

Hex Bolt 3/8-16 x 2.0" Lg.
(Superseded to 710-3144)

$3.67

$

In Stock, Qty 20+

0

38

Cub Cadet 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.09

$

In Stock, Qty 20+

0

39

Cub Cadet 732-0184

Ext. Spring .75" O.D. x 5" Lg.

$21.32

$

In Stock, only 1 left!

0

40

Cub Cadet 711-0374

Shift Rod

$

$

Currently unavailable

41

Cub Cadet 05518

Auger Clutch Brkt.

$

$

Not available

42

Cub Cadet 732-0303

Ext. Spring .38" O.D. x 3.18" Lg.
(Superseded to 932-0303)

$8.23

$

In Stock, Qty 20+

0

43

Cub Cadet 05981

Chute Crank Ass'y.

$

$

Not available

44

Cub Cadet 726-0100

Push Nut 3/8" Rod
(Superseded to 926-0100)

$

$

Not available

45

Cub Cadet 720-0171

Knob 3/8" Rod
(Superseded to 920-0171)

$12.68

$

Usually ships in 5-10 days

0

46

Cub Cadet 736-0140

Fl-Wash. .40" I.D. x .62" O.D.
(Superseded to 936-0140)

$

$

Not available

47

Cub Cadet 747-0416

Eyebolt 5/16-18 x 5.0" Lg.

$

$

Not available

48

Cub Cadet 735-0218

Grommet
(Superseded to 941-0475)

$3.41

$

In Stock, Qty 20+

0
