805 (805315) - Cub Cadet 26" Snow Thrower (1985) Snow Thrower Part 4 Parts Diagram

26" Snow Thrower

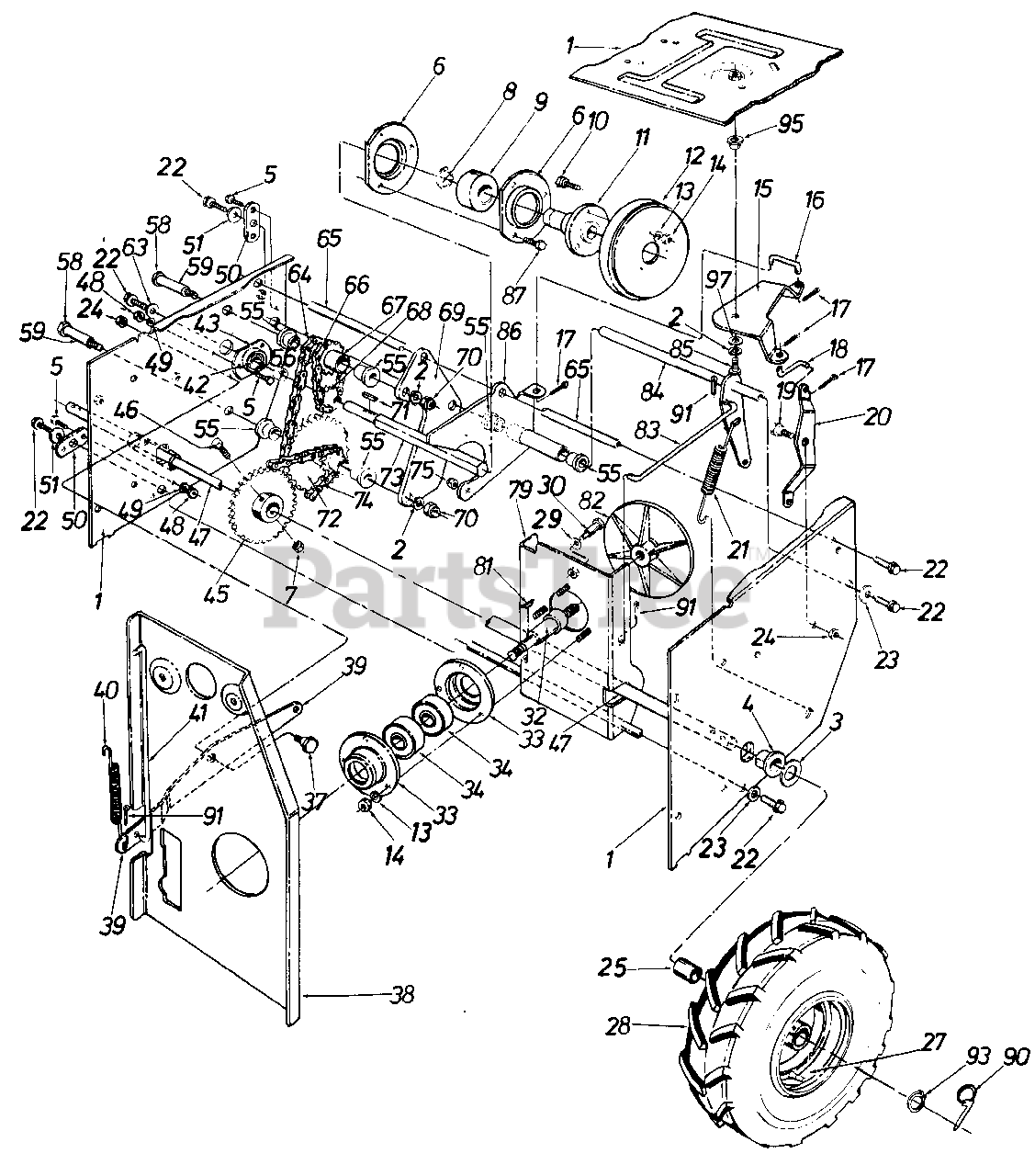

Snow Thrower Part 4 Parts Diagram

  • Title

1

Cub Cadet 05487

Frame Ass'y.

Note: Color Code 452

$

$

Currently unavailable

2

Cub Cadet 736-0217

L-Wash. 3/8" Scr.*

$

$

Not available

3

Cub Cadet 736-0163

Fl-Wash. 1.03" I.D. x 1.62" O.D. x .03

$4.99

$

In Stock, Qty 9

0

4

Cub Cadet 741-0244

Flange Brg. 1.0" I.D.
(Superseded to 941-0170)

$20.99

$

In Stock, only 2 left!

0

5

Cub Cadet 710-0258

Hex Bolt 1/4-20 x .62" Lg.*
(Superseded to 710-0751)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 05794

Bearing Housing

$

$

Not available

7

Cub Cadet 712-0273

Hex L-Nut 5/16-24 Thd. (2 Req'd.)
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 716-0102

Snap Ring for 1.00" Dia. Shaft

$5.49

$

In Stock, only 2 left!

0

9

Cub Cadet 741-0301

Ball Brg. 25 mm x 52 mm x 15 mm
(Superseded to 941-0301)

$56.99

$

In Stock, only 2 left!

0

10

Cub Cadet 710-0198

Hex Sems Scr. 5/16-18 x .75" Lg.*
(Superseded to 910-0198)

$

$

Not available

11

Cub Cadet 748-0281

Friction Wheel Adapter

$

$

Not available

12

Cub Cadet 05080

Friction Wheel Ass'y.
(Superseded to 05080AP)

$32.99

$

In Stock, only 2 left!

0

13

Cub Cadet 736-0119

L-Wash. 5/16" Scr.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-0267

Hex Nut 5/16-18" Thd.*
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 05521

Sliding Linkage Brkt.

$

$

Currently unavailable

16

Cub Cadet 747-0151

Sliding Rod-.31" Dia. x 2.00" Lg.

$

$

Not available

17

Cub Cadet 714-0507

Cot. Pin 3/32" Dia. x .75" Lg . *

$4.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 747-0152

Shifting Linkage Rod .31" Dia. x 2.25" Lg.

$

$

Not available

19

Cub Cadet 738-0281

Shld. Scr. .625" Dia. x .170" Lg.

$11.99

$

In Stock, only 3 left!

0

20

Cub Cadet 05522

Shifting Linkage Brkt.

$

$

Not available

21

Cub Cadet 732-0121

Extension Spring .73 O.D. x 4.31" Lg.
(Superseded to 932-0121)

$15.99

$

In Stock, only 2 left!

0

22

Cub Cadet 710-0538

Hex L-Scr. 5/16-18 x .62"*

$4.99

$

In Stock, only 2 left!

0

23

Cub Cadet 736-0264

Fl-Wash. .345 I.D. x .75 O.D. x .060

$7.49

$

In Stock, only 1 left!

0

24

Cub Cadet 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.99

$

In Stock, only 2 left!

0

25

Cub Cadet 741-0246

Bearing

$14.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 734-1121

Wheel Rim Ass'y.

$

$

Currently unavailable

28

Cub Cadet 734-1153

Wheel Ass'y. Comp. 16 x 4.5-L.H.

$

$

Currently unavailable

Cub Cadet 734-1152

Wheel Ass'y. Comp. 16 x 4.5-R.H.

Note: (Not Shown)

$

$

Currently unavailable

Cub Cadet 734-0808

Tire Only
(Superseded to 734-0808A)

Variations

734-0808-0901

Cub Cadet 734-0808-0901

Tire, 16.25 X 4.5-8 Tiller Ag - Carlisle (0901)

$131.99

$

Usually ships in 3-6 days

0

734-0808-0902

Cub Cadet 734-0808-0902

Tire, 16.25 X 4.5-8 Tiller Ag - Dico (0902)

$131.99

$

Usually ships in 3-6 days

0

734-0808-0905

Cub Cadet 734-0808-0905

Tire, 16.25 X 4.5-8 Tiller Ag - Duro (0905)

$131.99

$

Usually ships in 3-6 days

0

$131.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 736-0105

Bell-Wash.

$4.99

$

In Stock, Qty 6

0

30

Cub Cadet 738-0144

Shld. Scr.
(Superseded to 938-0144)

$

$

Not available

32

Cub Cadet 738-0279

Drive Plate Spindle

$61.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 08253

Bearing Housing
(Superseded to 08253B)

$20.99

$

In Stock, only 2 left!

0

34

Cub Cadet 741-0919

Ball Brg. .787 I.D. x 1.85 O.D. x .56
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

37

Cub Cadet 738-0281

Shld. Scr. .625" Dia. x .170" Lg.

$11.99

$

In Stock, only 3 left!

0

38

Cub Cadet 05491

Engine Brkt. Ass'y.

Note: Color Code 452

$

$

Not available

39

Cub Cadet 05518

Auger Clutch Brkt.

$

$

Not available

40

Cub Cadet 732-0303

Extension Spring .38 O.D. x 3.18" Lg.
(Superseded to 932-0303)

$10.99

$

In Stock, Qty 6

0

41

Cub Cadet 747-0149

Auger Clutch Rod .31" Dia. x 10.62" Lg.

$

$

Currently unavailable

42

Cub Cadet 741-0133

Ball Bearing

$37.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 05034

Bearing Housing
(Superseded to 05034A)

$

$

Not available

45

Cub Cadet 713-0320

28 Tooth Sprocket-Hub Ass'y.

$

$

Currently unavailable

46

Cub Cadet 710-0409

Hex Scr. 5/16-24 x 1.75" Lg.

$4.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 738-0548

Axle-Free Wheeling

$

$

Currently unavailable

48

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 736-0329

L-Wash. 1/4" Scr.*
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 12

0

50

Cub Cadet 05523

Pivot Axle Brkt.

$

$

Not available

51

Cub Cadet 736-0264

Fl-Wash. .345" I.D. x .75" O.D. x .060

$7.49

$

In Stock, only 1 left!

0

55

Cub Cadet 748-0184

Flange Brg.-.630" I.D.

$

$

Not available

56

Cub Cadet 750-0277

Spacer .51" I.D. x .69" O.D. x .44

$

$

Not available

58

Cub Cadet 710-0629

Hex Scr. 3/8-24 x 2.75" Lg.

$

$

Not available

59

Cub Cadet 750-0275

Sprocket Hub Tubing 1.900"

$

$

Not available

63

Cub Cadet 736-0242

Bell-Wash. .345" I.D. x .88 O.D. x .060

$4.99

$

In Stock, Qty 20+

0

64

Cub Cadet 713-0270

#41 Chain-1/2" Pitch x 43 Links

$

$

Not available

Cub Cadet 713-0723

Master Link
(Superseded to 913-0723)

$

$

Not available

65

Cub Cadet 738-0278

Sliding Support Axle

$

$

Not available

66

Cub Cadet 713-0199

#41 Chain 1/2" Pitch x 19 Links

$

$

Not available

Cub Cadet 713-0723

Master Link
(Superseded to 913-0723)

$

$

Not available

67

Cub Cadet 713-0193

9 and 14 Teeth Sprocket Hub Ass'y.
(Superseded to 913-0193)

$81.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 748-0204

8 Teeth Sprocket

$

$

Not available

69

Cub Cadet 05520

Chain Support Brkt.

Variations

05520-0637

Cub Cadet 05520-0637

BRACKET-CH - POWDER BLACK (0637)

$

$

Not available

$

$

70

Cub Cadet 712-0116

Hex L-Jam Nut 3/8-24 Thd.

$4.99

$

In Stock, only 3 left!

0

71

Cub Cadet 714-0129

#9 Hi-Pro Key 3/32 x 518" Dia.
(Superseded to 914-0129)

$

$

Not available

72

Cub Cadet 713-0194

9 and 32 Teeth Sprocket Hub Ass'y.
(Superseded to 913-0194)

$162.99

$

In Stock, only 1 left!

0

73

Cub Cadet 738-0280

Hex Shaft

$

$

Not available

74

Cub Cadet 713-0269

#420 Chain-1/2" Pitch x 37 Links
(Superseded to 913-0269)

$

$

Not available

Cub Cadet 713-0154

Master Link
(Superseded to 913-0154)

$

$

Not available

75

Cub Cadet 712-0896

Hex Ins. Jam L-Nut 1/4-28"

$4.99

$

In Stock, only 2 left!

0

79

Cub Cadet 05497

Drive Plate Mtg. Brkt. Ass'y.

Variations

05497-0637

Cub Cadet 05497-0637

BRACKET ASSEMBLY-DR PLT MTG - POWDER BLACK (0637)

$

$

Not available

$

$

81

Cub Cadet 714-0388

#61 Hi-Pro Key 3/16 x 518" Dia.
(Superseded to 914-0388)

$8.49

$

In Stock, Qty 6

0

82

Cub Cadet 717-0302

Aluminum Drive Plate
(Superseded to 917-0302)

$

$

Not available

83

Cub Cadet 747-0150

Drive Clutch Rod .31" Dia. x 7.38" Lg.

$

$

Not available

84

Cub Cadet 05500

Drive Clutch Brkt. Ass'y.

$

$

Currently unavailable

85

Cub Cadet 710-0253

Hex Scr. 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 16

0

86

Cub Cadet 05502

Sliding Brkt. Ass'y.

$

$

Currently unavailable

87

Cub Cadet 710-0195

Hex Scr. 1/4-28 x .62" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

90

Cub Cadet 714-0151

Klick Pin

$

$

Not available

91

Cub Cadet 714-0104

Internal Cot. Pin 5/16 Dia.

$4.49

$

In Stock, Qty 10

0

93

Cub Cadet 716-0102

Snap Ring 1.0" Shaft

$5.49

$

In Stock, only 2 left!

0

95

Cub Cadet 738-0347

Shld. Spacer 518" I.D.
(Superseded to 938-0347)

$10.99

$

In Stock, only 2 left!

0

97

Cub Cadet 736-0227

Fl-Wash.

$6.99

$

In Stock, only 2 left!

0
