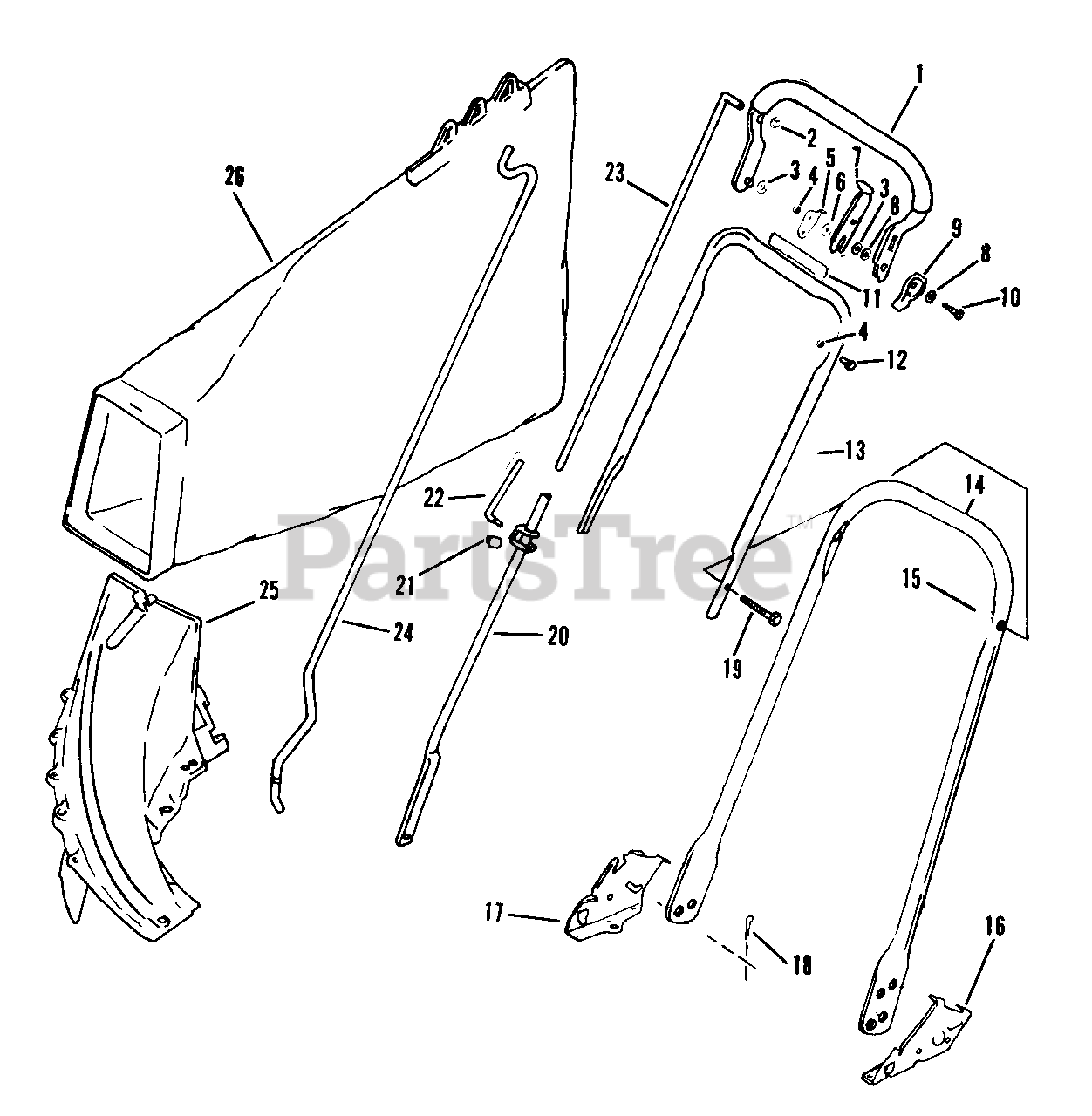

8071 - Lawn-Boy Walk-Behind Mower (SN: A00000001 - A99999999) (1982) HANDLE AND GRASS CATCHER GROUP PROMOTIONAL MODEL: 8071 Parts Diagram

Walk-Behind Mower

HANDLE AND GRASS CATCHER GROUP PROMOTIONAL MODEL: 8071 Parts Diagram

  • Title

1

Lawn-Boy 682199

Handle & Grip Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 605546

Nut
(Superseded to 32112-11)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$1.49

$

In Stock, Qty 15

0

3

Lawn-Boy 306359

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 602315

Nut-Lock

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

5

Lawn-Boy 609689

Stop-Handle

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$25.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 609460

Washer

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 610496

Lever-Lockout

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 303254

Washer
(Superseded to 121-4605)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$4.49

$

In Stock, only 1 left!

0

9

Lawn-Boy 610498

Guard-Lever

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 606144

Bolt-Shoulder

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 610495

Decal

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 609461

Screw-Stop

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 610494

Handle-Center

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Currently unavailable

14

Lawn-Boy 610487

Handle Section-Bottom
(Superseded to 611113)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 602315

Nut-Lock

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

16

Lawn-Boy 682190

Bracket-Handle L.H.
(Superseded to 681781)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 682191

Bracket-Handle R.H.
(Superseded to 681780)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$101.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 605803

Hair Pin

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 609892

Bolt

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 682197

Control Lever Assembly
(Superseded to 679661)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 602992

Nut

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 603699

Screw

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 610492

Control Rod

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 610488

Rod-Grass Bag
(Superseded to 607561)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 679487

Chute Assembly
(Superseded to 99-6411)

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 679966

Bag Assembly

Note: Important Note: Painted, plastic, fiberglass replacement parts or wheels many not always be available in matching colors.

$

$

Not available
